Hard plastic lump single shaft shredder

Specifications

Hard plastic lump single shaft shredder
1.High capacity 600-2000kg
ing stably
3.Low energy consumption
4.CE ISO

Hard plastic lump single shaft shredder

Machine detail --single shaft shredder/waste plastic shredder



Application

This Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as thick pipes, lumps from extruder, package barrels, buckets, trays,ruber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption. Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation.



Working flowchart and final material size

shredding the big hard plastic waste into 40mm pieces,

drop into crusher directly, crush the pieces into 10mm scraps,



Properties:

1. rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° to continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° to use;

5. main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. hydraulic pusher, an independent power systems, solid structure, smooth operation;

Model	WT600	WT800	WT1000	WT1200	WT1400	WT1500
feed opening(mm)	600*600	800*610	1230*800	1000*1400	1200*1400	1500*1500
rotor dia(mm)	φ220	φ400	φ400	φ400	φ450	φ500
rotor speed(rpm)	85	85	85	85	85	85
rotary blade(pcs)	28	46	58	70	88	132
fixed blade(pcs)	4	4	4	4	4	4
cylinder stroke(mm)	500	850	1000	1000	1000	1000
hydraulic power(kw)	2.2	2.2	3	4	4	4
screen diameter(mm)	Ø20-80	Ø 20-80	Ø 20-80	Ø 20-80	Ø 20-80	Ø 20-80
main motor(kw)	18.5	37	45	55	75	90
output(kg/h)	300-400	500-700	700-900	900-1000	1100-1200	1200-1300

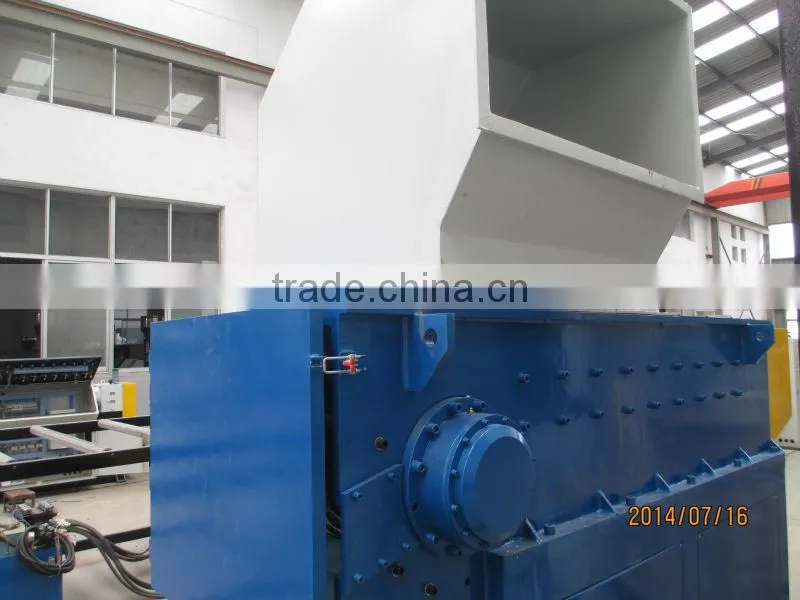

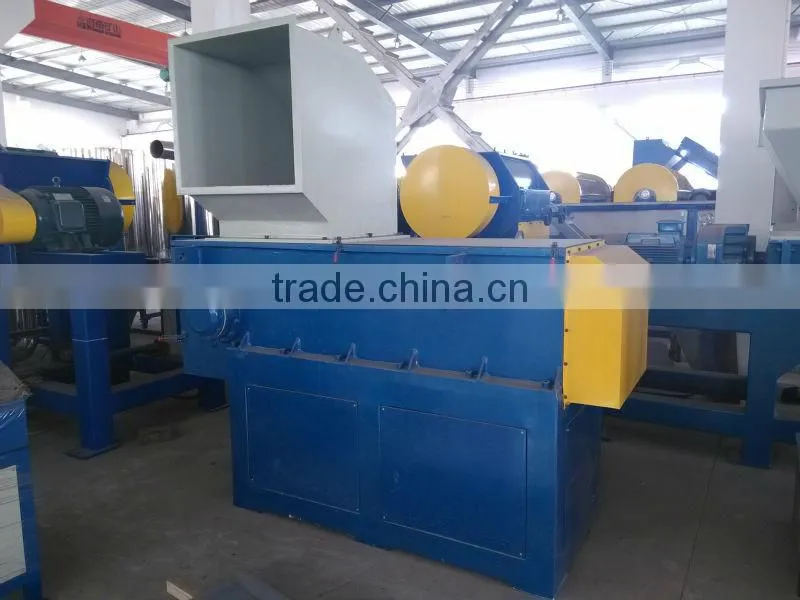

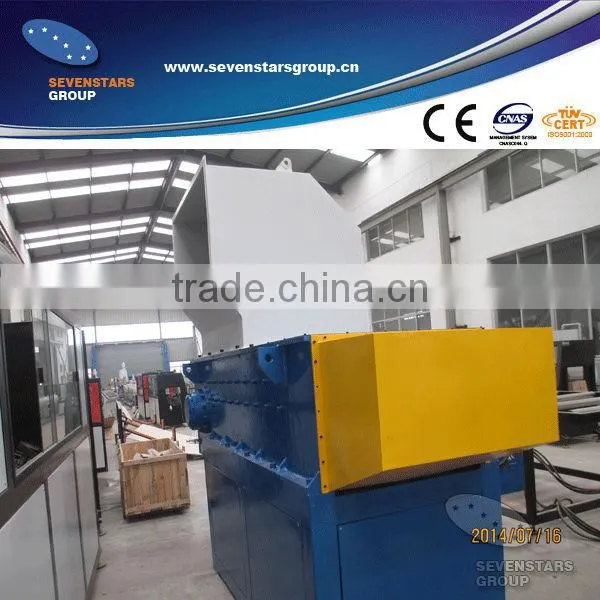

More photos about the WT-800 single shaft shredder machine as below:







 CE CERTIFICATE:





Our office:

Our customer:
