High Quality Heavy Duty Waste Plastic Shredder

Specifications

High quality heavy duty waste plastic shredder

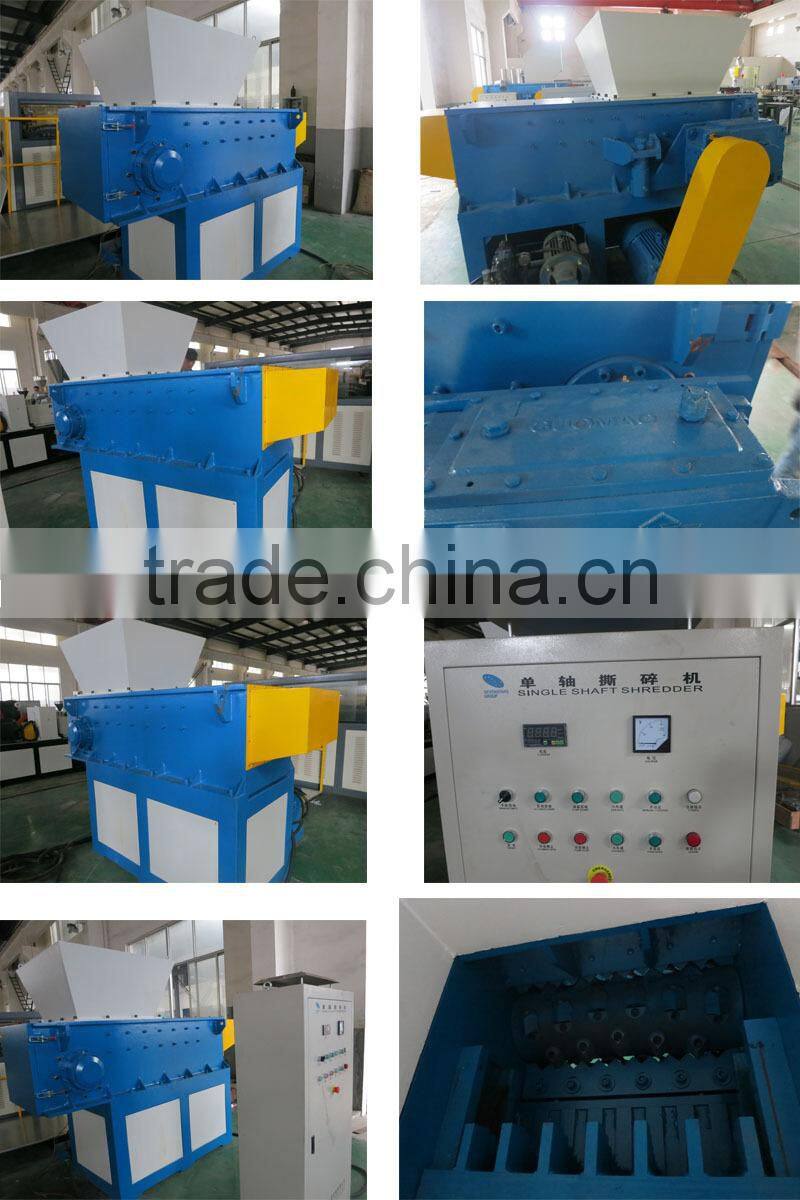

Machine detail --single shaft shredder/waste plastic shredder

Application

This Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as thick pipes, lumps from extruder, package barrels, buckets, trays,ruber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption. Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation.

Working flowchart and final material size

Shredding the big hard plastic waste into 40mm pieces,

drop into crusher directly, crush the pieces into 10mm scraps,

Properties:

1. rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° to continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° to use;

5. main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. hydraulic pusher, an independent power systems, solid structure, smooth operation;

Single shaft shredder for waste hard plastic,waste junk in the die,plastic lumps,and copper wire and so on:

Double shaft shredder for carton,paper,and wood with nails:

TWO Single shaft and two-in -one shredder for jumbo bags,woven bags and streatch films:

Our factory:--We are factory for plastic extrusion machine,plastic recycling machine and various shredder more than 10 years.

Our office:

Shipping the machine:

 CE CERTIFICATE:

Our customer:
