Zhangjiagang sevenstars Plastic shredder machine
- 50 Set / Sets per Month
- Shanghai
- T/T
- recycle plastic crusher machine price/plastic bottle crusher/ crushing machine for PET bottles
- Waste recycling machine Plastic shredder machine/wood shredder shredding machine for sale
- plastic shredder/plastic crusher machine/shredding machine supplier price
- Waste Plastic Shredding Machine / Plastic Shredder Recycle Machine / Plastic Shredder Price
- Waste Plastic Crushing Machine for PPPE PET PVC
- pet bottle plastic crusher/grinder/breaker machine price
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Sevenstars |
Model Number: | WT-600,WT800......WT1600 | Use: | Other, Zhangjiagang sevenstars Plastic shredder machine | Plastic Type: | Other, pallet and plastic lump,hard plastic from die-mould |
Shaft Design: | Single | Power: | 37kw-132kw | Capacity: | 400kg-2000kg |
Voltage: | 380V 50HZ or customized | Power(W): | 37kw-132kw | Dimension(L*W*H): | 2000*1300*1700mm,based on the different model |
Weight: | 3500kg,based on the different model | Certification: | CE,ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Zhangjiagang sevenstars Plastic shredder machine1.High capacity 600-2000kg
ing stably
3.Low energy consumption
4.CE
Zhangjiagang sevenstars Plastic shredder machine
Application
This Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as thick pipes, lumps from extruder, package barrels, buckets, trays,ruber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption. Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation.
Working flowchart and final material size
shredding the big hard plastic waste into 40mm pieces,
drop into crusher directly, crush the pieces into 10mm scraps,
Properties:
1. rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° to continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° to use;
5. main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. hydraulic pusher, an independent power systems, solid structure, smooth operation;
Model | WT600 | WT800 | WT1000 | WT1200 | WT1400 | WT1500 |
feed opening(mm) | 600*600 | 800*610 | 1230*800 | 1000*1400 | 1200*1400 | 1500*1500 |
rotor dia(mm) | φ220 | φ400 | φ400 | φ400 | φ450 | φ500 |
rotor speed(rpm) | 85 | 85 | 85 | 85 | 85 | 85 |
rotary blade(pcs) | 28 | 46 | 58 | 70 | 88 | 132 |
fixed blade(pcs) | 4 | 4 | 4 | 4 | 4 | 4 |
cylinder stroke(mm) | 500 | 850 | 1000 | 1000 | 1000 | 1000 |
hydraulic power(kw) | 2.2 | 2.2 | 3 | 4 | 4 | 4 |
screen diameter(mm) | Ø20-80 | Ø 20-80 | Ø 20-80 | Ø 20-80 | Ø 20-80 | Ø 20-80 |
main motor(kw) | 18.5 | 37 | 45 | 55 | 75 | 90 |
output(kg/h) | 300-400 | 500-700 | 700-900 | 900-1000 | 1100-1200 | 1200-1300 |

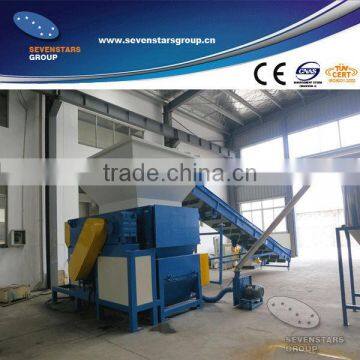

More photos about the WT-1200 single shaft shredder two-in-one with Crusher machine as below:
