Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Crusher > for Sale Wood Shredder
for Sale Wood Shredder
US$ 15,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
BDX cardboard shredder
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Double Shaft Shredder for Drum Container Cardboard PalletUS$ 12,500 - 35,000MOQ: 1 Set -
Double Shaft Shredding Machine for CardboardNegotiableMOQ: 1 Set
-
Single Shaft Plastic Shredder fo Rbig Plastic LumpsNegotiableMOQ: 1 Set
-
Double Shaft Shredder(with Two Motors)US$ 20,000 - 80,000MOQ: 1 Set
-
Factory Hot Selling Plastic Shredder for Paper/film/wood/crusher for Plastic Recycling Machine/zhangjiagang Small Shredder PriceUS$ 5,000 - 20,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
BDX cardboard shredder
Model Number
sevenstars cardboard shredder
Use
Other, cardboard plastic leather etc
Plastic Type
Other, all kinds of plastic
Shaft Design
Double
Power
380V 50HZ ot accroding to customer
Capacity
100-5000kg/h
Voltage
380V
Power(W)
11kw or more
Dimension(L*W*H)
3000*2000*2100
Weight
2800kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Sevenstars waste recycling double shaft plastic shredder1.High output safety steady
2.low power
3.low price
4.low noice
| High quality low price waste recycling machinery double shaft plastic shredder | ||||||||
| 1.Main components and functions | ||||||||
| Waste produce recycling plant double shaft plastic shredder | ||||||||
| NO | Equipment | Function | Set | |||||
| 1 | Conveying belt | convey materials | 1 | |||||
| 2 | double shaft plastic shredder | shredding materials into small pieces/coarse shredding | 1 | |||||
| 3 | Conveying belt 2 | convey pieces into cursher | 1 | |||||
| 4 | Plastic Crusher | further processing pieces in flakes around 8mm | 1 | |||||
| 5 | Air Blower | take in dust | 1 | |||||
| 6 | Cyclone separator | collect dust | 1 | |||||
| 7 | Control box | PLC;Schneider contactor;ABB SIEMENS INVERTER ETC | 1 | |||||
| 2.Brief introduction High quality and low consumption double shaft plastic shredder | ||||||||
| The double shaft plastic shredder is suitable to processed carton, very big size of plastic material, such as wood pallet, big diameter plastic pipe, plastic board, hard and floppy disk, wood, tire, baled plastic film, small diameter copper wire and other things that the single shaft shredder can`t process. | ||||||||
| In addition, the double shaft plastic shredder can also have a good effect on shredding the film in rolls, hollow barrels and so on. | ||||||||
| 3.Features Hot sell double shaft plastic shredder | ||||||||
| 1 Heavy-duty construction and efficient performance are determined by the precisely processed combined frame made of extra-thick plates | ||||||||
| 2 Wide angle, hexagon prism of power slewing axis; large hopper with big caliber for feeding large material | ||||||||
| 3 The double shaft plastic shredder adopts PLC control system, automatic overload protection and auto reverse switch | ||||||||
| 4 The low rotation speed results in a particularly quiet shredding process with low levels of dust generation | ||||||||
| 5 It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc. | ||||||||
| 4.Main parameters | ||||||||
| CE ISO approved double shaft plastic shredder | ||||||||
| Model | Number of revolving knife | Power(kw) | Thickness of knife(mm) | Diameter of knife(mm) | Number of blade | Dimension of crushing chamber(mm) | Output(kg/h) | Weight(kg) |
| 600 | 12 | 11 | 50 | φ280 | 5 | 600*550 | 300~800 | About 2800 |
| 600 | 12 | 15 | 50 | φ280 | 5 | 600*550 | 300~800 | About 2900 |
| 800 | 16 | 22 | 50 | φ300 | 5 | 800*600 | 500~1500 | About 4100 |
| 800 | 16 | 37 | 50 | φ300 | 5 | 800*600 | 500~1500 | About 4300 |
| 1000 | 20 | 2×30 | 50 | φ350 | 5 | 1000*700 | 1000~2000 | About 6500 |
| 1200 | 24 | 2*30 | 50 | φ400 | 5 | 1200*800 | 1500~2500 | About 7000 |
| 1600 | 22 | 2×37 | 70 | φ450 | 5 | 1600*900 | 2000~3000 | About 10500 |
| 5.Related machines of double shaft plastic shredder | ||||||||
| No | Name | Function | ||||||
| 1 | Film Agglomerator | Making plastic granules | ||||||
| 2 | Flour Grinder/Miller | Grinding graules into powder | ||||||
| 3 | Powder Mixer | Mixing kinds raw materials | ||||||
| 4 | Crusher | Breaking pieces into smaller ones:around 8mm | ||||||
| 6.Delivery | ||||||||
| 45 working days since receiving advance payment | ||||||||
| 7.Packing of double shaft plastic shredder | ||||||||
| 1. Film for main machines | ||||||||
| 2. Wood box for key components | ||||||||
| 3. Strictly fitted in containers as international sea shipment standards | ||||||||
| 8.Warranty | ||||||||
| 12 months | ||||||||
| 9.Term of payment | ||||||||
| 30% as advance payment by T/T after signing contract | ||||||||
| 70%as balance by T/T after inspection machine before delivery | ||||||||
| 10.NotesNew design energy saving double shaft plastic shredder | ||||||||
| If you are interested in our double shaft plastic shredder ,pls contact and tell us | ||||||||
| 1. What material are you going to shredding? | ||||||||
| 2. What capacity of the double shaft plastic shredder you required? | ||||||||
| 3. Do you need to purchasing other machines? | ||||||||

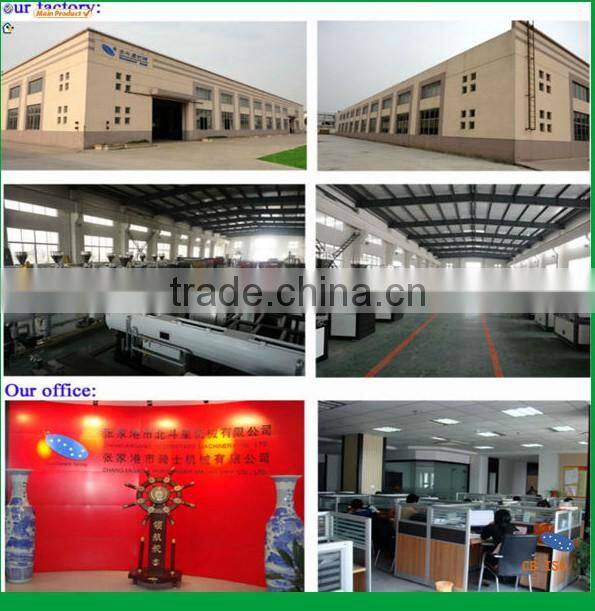

| 5.Images of double shaft shredder CE Ceritficates and Company and Packing Album | ||||||||

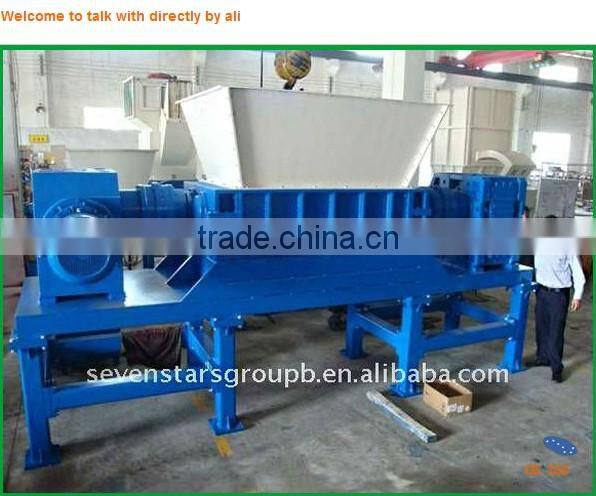

| Welcome to talk with directly by ali | ||||||||
