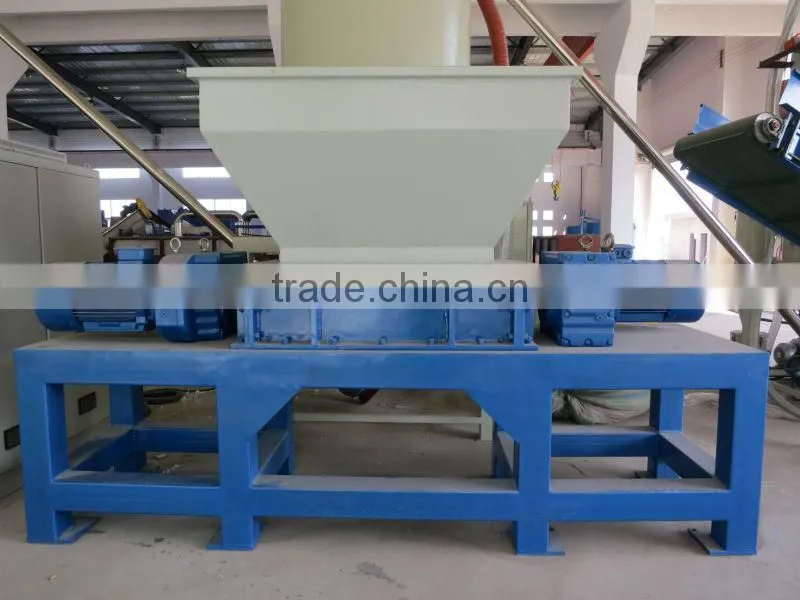

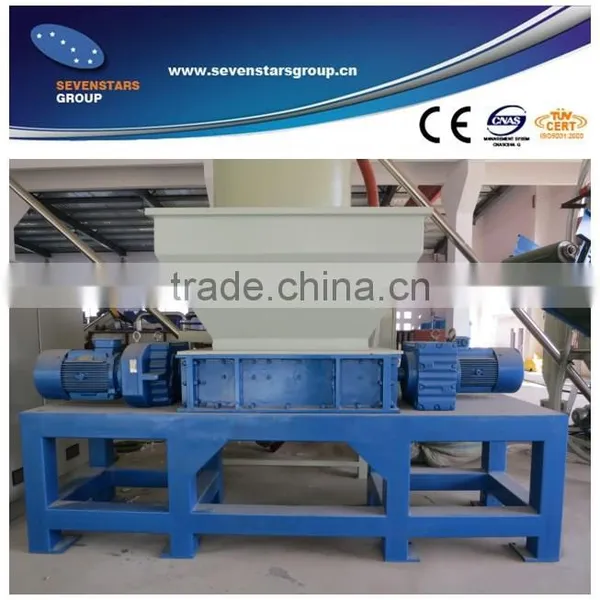

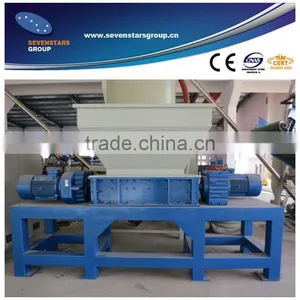

Two Shaft Wood Pallet Shredder
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Sevenstars for wood pallet shredder | Model Number | BDX for wood pallet shredder | |
| Use | Other, pallet shredder machine | Plastic Type | Other, wood plastic etc | |
| Shaft Design | Double | Power | 15-74kw for wood pallet shredder | |
| Capacity | high torque,low speed, low noise | Voltage | 380V for wood pallet shredder | |
| Power(W) | 15-74kw for wood pallet shredder | Dimension(L*W*H) | 4m lenght 2m width 3m height for wood pallet shredder | |
| Weight | 2400kg-12000kg for wood pallet shredder | Certification | CE ISO9001 for wood pallet shredder | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
wood pallet shredder machine adopts the advanced technology introduced from Europe, and passed the
CE Certification of Quality System. Low speed, high torque, low noise.
over-load protector , the machines is suitable to treat the big, thick of plastic products, such as big diameter plastic pipe ,
the shell of TV sets, refrigerators and washing machines, tires , plastic packing case, computer hard disk, aluminum,
bronze and the thickness of steel less than 5mm.
The machine is controlled by PLC system, the blade can be rotated in opposite direction, and also will close automatically
if something unexpected happen, with very high safety service
Remark:

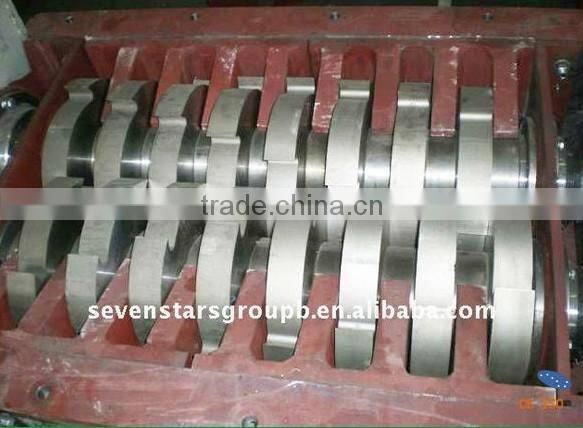

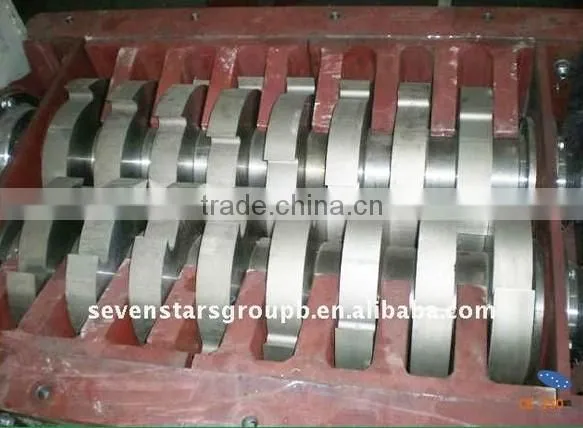

1. The standard thickness of rotary blades is 40mm, also 15mm and 20mm. you can choose the suitable blades according to the size of the processing granules.
2. For the rotary blades, we have single gripper, double gripper, and more than two grippers for your customers’ choosing.
Model | Feeding mouth(mm) | Speed (rpm) | Driving power (kw) | Size of disc-type blades (pcs.) | Quantity of rotary blades (pcs.) | Dimension (mm) | Weight (kg) |
LGSZ2140 | 400*500 | 85 | 7.5 | 240x30 | 12 | 1270X1120X1330 | 1500 |
LGSZ2160 | 600*540 | 85 | 5.5+5.5 | 250x40 | 15 | 1500X1120X1330 | 2000 |
LGSZ2180 | 800*540 | 85 | 7.5+7.5 | 260x50 | 19 | 2000X1120X1330 | 2500 |
LGSZ3280 | 800*800 | 85 | 15+15 | 280x50 | 20 | 2100X1420X1800 | 3500 |
LGSZ32100 | 1000*800 | 85 | 18.5+18.5 | 300x50 | 25 | 2400X1420X1800 | 4000 |
LGSZ32120 | 1200*800 | 85 | 22+22 | 350x70 | 28 | 2650X1420X1800 | 4800 |
LGSZ40100 | 1000*9800 | 85 | 22+22 | 400x70 | 40 | 2900X1700X2300 | 5000 |
LGSZ40120 | 1200*980 | 85 | 30+30 | 400x70 | 42 | 3200X1700X2300 | 6000 |
LGSZ40148 | 1480*980 | 85 | 37+37 | 400x70 | 42 | 3600X1700X2300 | 7500 |
