Specifications

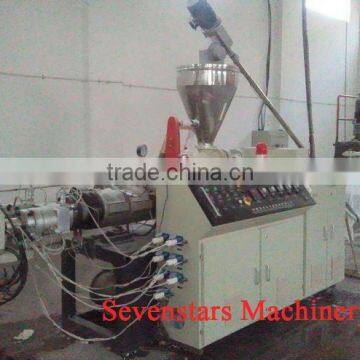

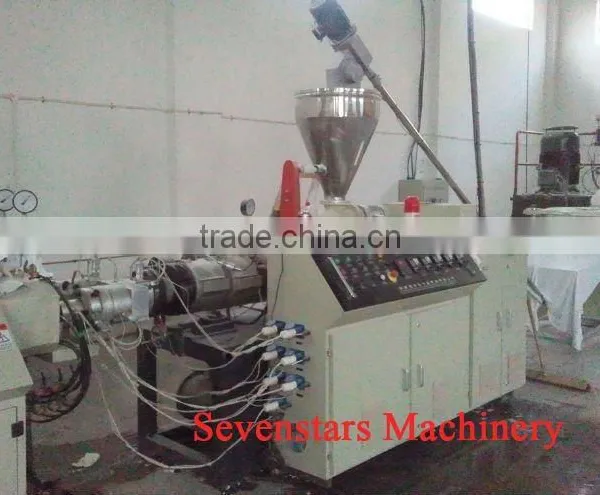

UPVC pipe extruding machine is for producing UPVC water pipes,UPVC electrical pipes etc, most scientific design, good quality
The main components of PVC water electrical pipe extruding machine:
1. Twin-screw extruder,
2. Mould,
3. Vacuum calibration and cooling tank,
4. Hualing off machine(2-pedrails, 3-pedrails, 4-pedrails, 6-pedrials )
5. Printer(ink jet printer, imitating ink jet printer)
6. Cutter(lift-up cutter, planetary cutter)
7. Stack bracket
Auxiliary machines of PVC pip extruding machine :
1. Hot and cooling mixer
2. Socketing machine
3. PVC crusher and pulverizer
4. Water chiller and air compressor etc,
Advantages:
1. All main electric elements are world famous brand, like Siemens, FUJI, ABB and Schneider
2. Superior quality screw and barrel which are designed with CAD and processed by advanced CNC lathe according different formula which can make sure scientific inner structure and best plasticizing effect
3. Equipped with best gear box in China which can make sure long service life.
4. Optimized design to make lower electric consumption and increase efficiency
5. Mature technology, rich experience enables us to lower the production cost to give you good price.
If you are interested in it, pls let me know which model you want referring to below table, I will answer you in shortest time. Thanks!
Model of UPVC pipe extruding machine:
| Model | GF-50 (dual out) |
GF63 | GF110 | GF160 | GF315 | GF450 | GF630 |
| available diameter(mm) | 20-63 | 20-63 | 63-110 | 75-160 | 200-315 | 225-450 | 315-630 |
| Extruder Model | 55/110 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 | 92/188 |
| Extrusion output kg/h | 50-150 | 50-120 | 80-150 | 80-300 | 250-350 | 400-600 | 500-700 |
| Applicable material | PVC resin,processing aid,filling agent (formula according to different application) | ||||||
| Remark: | We will give you best optimized design according to your actual requirement | ||||||
