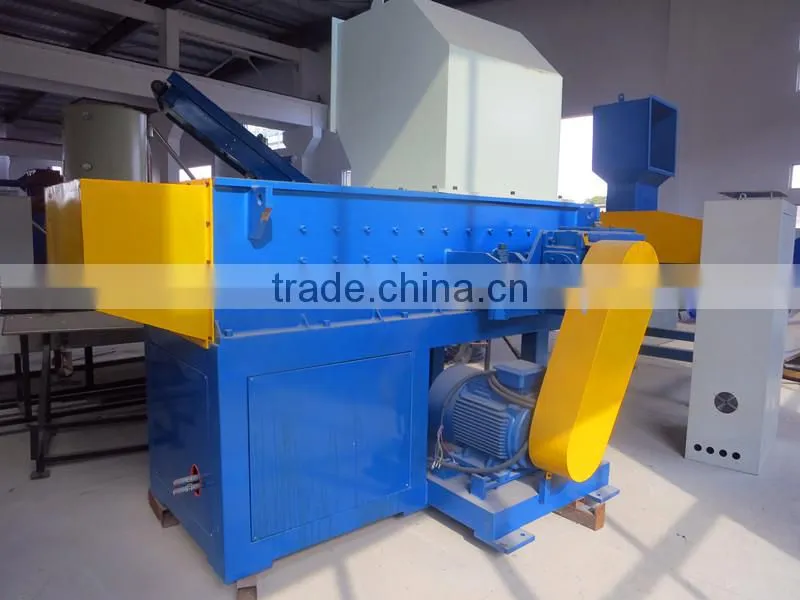

Wood and Plastic Shredder Machine Grinder Crusher Machine

Name: Wood and Plastic Shredder Machine Grinder Crusher Machine
Brand: sevenstars
SKU: 141033828
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

sevenstars

Zhangjiagang Sevenstars Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name sevenstars

Model Number WT

Use Other, large wood and plastic shredder

Plastic Type Other, wood and plastic

Shaft Design Single

Power 18.5-110kw

Capacity 200-2000kg/h

Voltage 380v50hz

Certification CE,ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Wood and plastic shredder machine grinder crusher machine
1.Controlled By PLC
2.Auto forward
3.Overload protect

Wood and plastic shredder machine grinder crusher machine Dimension and Technical Parameters:

model item	WT2250	WT2260	WT4060	WT4080	WT40100	WT40120	WT40150	WT48150
A(mm)	690	790	1150	1300	1300	1400	1400	1425
B(mm)	500	600	620	800	1020	1200	1500	1500
C(mm)	1100	1200	1450	1670	1890	2100	2450	2475
D(mm)	630	630	850	850	850	850	850	1020
H(mm)	1800	1800	2200	2200	2200	2200	2200	2810
L(mm)	1585	1785	2400	2700	2700	2920	2920	3200
Rotor diameter (mm)	φ220	φ220	φ400	φ400	φ400	φ400	φ400	φ480
Rotate speed (rpm)	83	83	83	83	83	83	83	75
Pushing material distance(mm)	400	500	700	850	850	950	950	950
screening(mm)	φ40 (1)	φ40	φ40	φ40	φ40	φ40	φ40	φ60
Quantity of moving blade(PCS)	24	28+4 (2)	32	44	56	68	86	129
Quantity of fixed blade(PCS)	4	4	4	4	4	6	6	6
Motor power(KW)	1	18.5	30	37	45	55	75	110
Hydranlic pressure power(KW)	2.2	2.2	3.75	3.75	3.75	5.5	5.5	5.5
