Specifications
Plastic recycling1.for large pipe,thick plastic wasted material crushing
2.famous electric equipment
plastic shredder

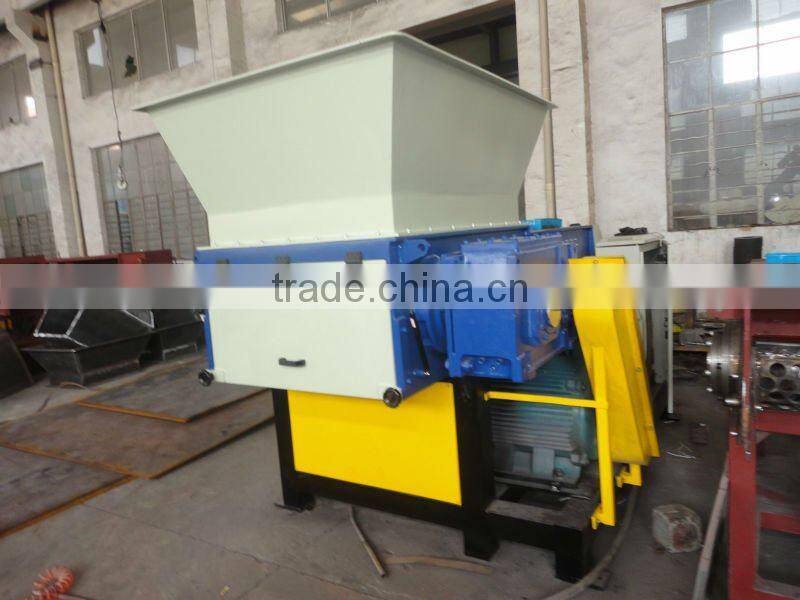

Plastic single shaft shredder
Single shredder
Shredder which efficiently capable for shredding materials that are quite thick and tough such as large plastic pipes,and especially for recycling different materials.shredder used close packed structures with hyfraulic feeding systerm.it’s featured as advanced equipment ,strong crushing capacity and high output .the machine use of schneide electric or siemens to ensure the safe operation of systerm .
Main technical parameter
Model |
WT300 |
WT400 |
WT500 |
WT600 |
Quantity of rotated blade |
22 |
20 |
24 |
28 |
Quantity of fixed blade |
2 |
2 |
2 |
4 |
Rotated diameter |
150 |
220 |
220 |
220 |
Input size |
300*300 |
400*400 |
500*500 |
600*800 |
Motor power |
4 |
11 |
15 |
18.5 |
Hydraulic power |
0.75 |
0.75 |
2.2 |
2.2 |
Weight |
300 |
1100 |
1100 |
2200 |
L*W*H |
1200*800*1100 |
1300*1700*2000 |
1300*1700*2000 |
1300*1700*2000 |
Mesh diameter |
22 |
22 |
22 |
22 |
Motor speed |
80-100 |
80-100 |
80-100 |
80-100 |
Main technical parameter
Model |
WT800 |
WT1000 |
WT4080 |
WT40120 |
WT40800 |
Quantity of rotated blade |
46 |
64 |
46 |
10 |
10 |
Quantity of fixed blade |
4 |
4 |
4 |
2 |
2 |
Rotated diameter |
400 |
400 |
400 |
400 |
400 |
Input size |
800*800 |
1000*1000 |
800*800 |
120*120 |
150*150 |
Motor |
37 |
45 |
37 |
1.5 |
1.5 |
Hydraulic power |
2.2 |
3 |
2.2 |
0.25 |
0.25 |
Weight |
3100 |
1500 |
3100 |
3000 |
3000 |
character:
1. this machine is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others

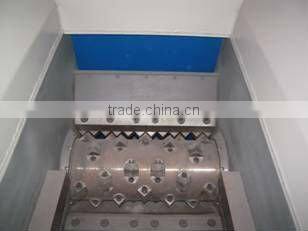

2. The blade base and blade on the rotary roller can be disassembly .it is easy to clean and maintenance.
3. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.
4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.
5. Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.
6. The main axis is drive by gearbox, its running very stably, low noise and strong power.
7. the material push feeding system is hydraulic ways , ,its running very stably the machine is control by PLC system ,.the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service
