Zhangjiagang Plastic Grinding Pulverizer Machine With Additional Mesh

Specifications

Applications of the pulverizer machine/plastic grinder/plastic pulverizer

MF series Plastic Milling machine is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.

The MF series plastic automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.

Characteristics of the milling machine/plastic grinder/plastic pulverizer

1. With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.
2. With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).
3. Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.
4. With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.
5. With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.

Characteristics of the milling machine/plastic grinder/plastic pulverizer

1. The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.
2. The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
3. Installation and maintenance easy, open the door to cover clean-up.
4. Milling process of the whole seal, without dust leakage.
5. Full automatic feeding, the materials and sorting.
6. Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (20-100 mesh).

The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

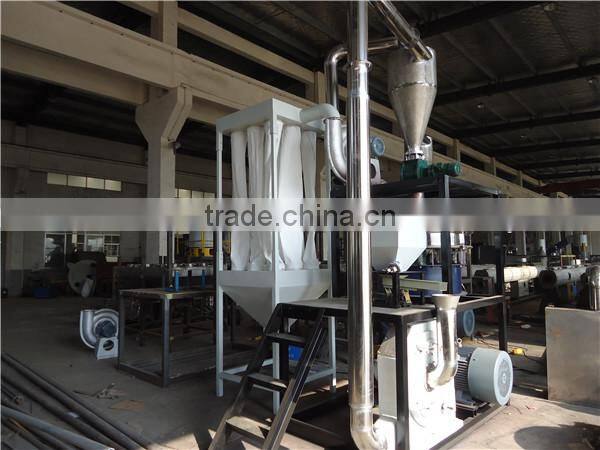

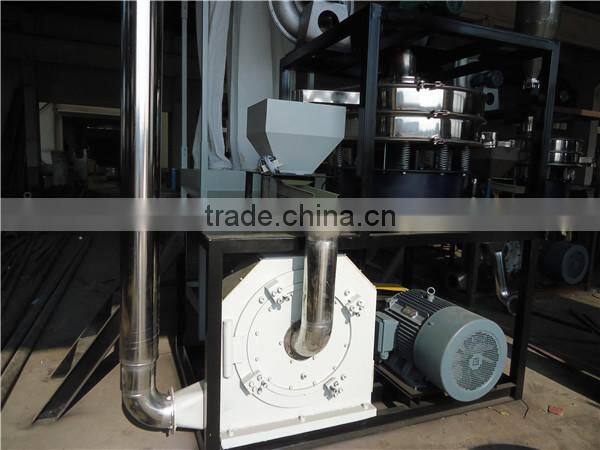

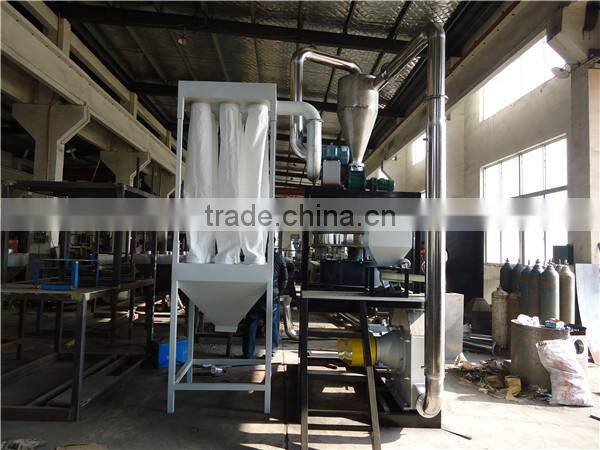

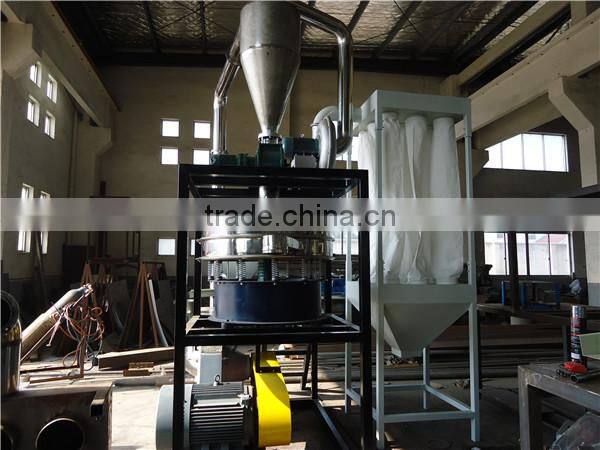

Machine show

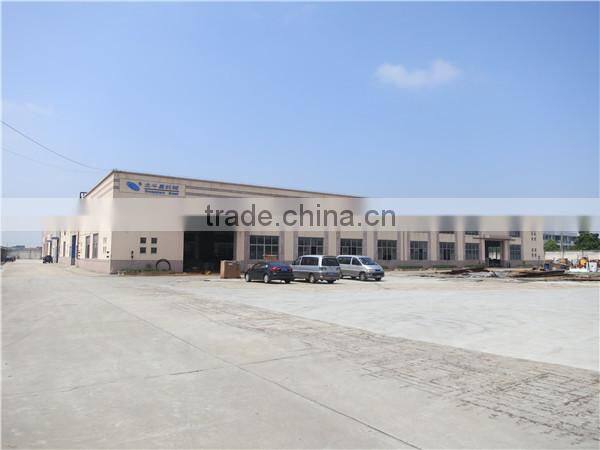

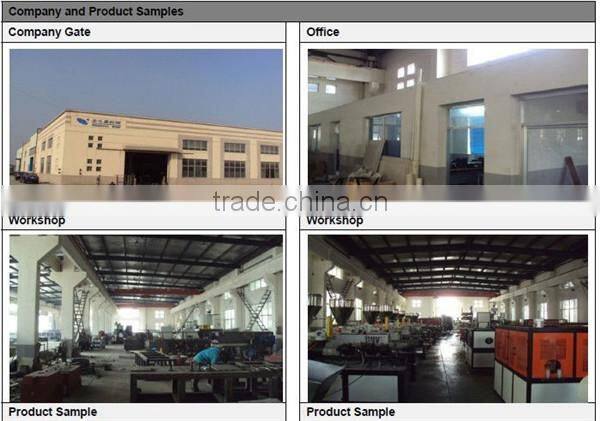

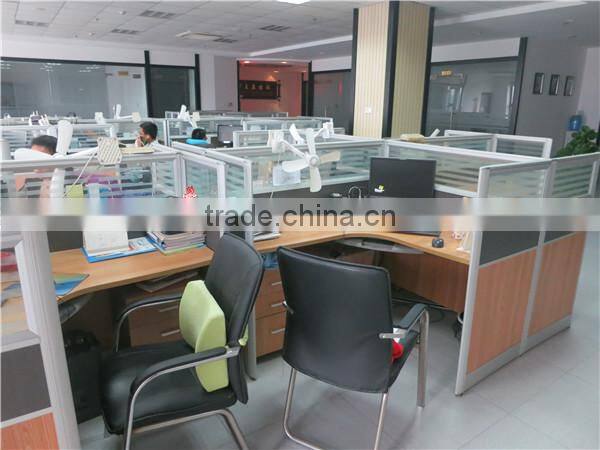

Factory show:
