Surface tank volume:120L
Face box turning angle:95 degrees
ZHM vacuum and surface machine
A vacuum and surface machine is composed of a frame, a machine body, an inclined plane box, a face box cover, a mechanical transmission part, a vacuum pump and an electric appliance part.
And the whole machine is mainly used SUS304 stainless steel material.
The opening of the face box cover and the inclination of the surface box are controlled by the hydraulic system, and the surface of the surface of the surface and the surface of the surface of the surface and the surface of the surface and the surface of the surface and the surface. The box body is coated with Teflon coating, to ensure clean and sanitary material.
Vacuum system using water ring vacuum pump, can reduce the pollution of flour, to effectively prevent the damage to the vacuum pump of flour, more durable, the highest vacuum can reach -0.09PMPa.
Advantages of vacuum and surface machine:
The use of vacuum and flour machine to increase the amount of dough, more thanTen% of the dough and flour mill.
The use of vacuum and surface machine increase the gluten content, dough and noodle making chewing performance better.
Vacuum and surface machine whether it is made of noodles, fresh, or frozen pasta, not sticky, continuous, not broken.
Vacuum and surface machine and out of the surface loose, internal uniform.
Mainly introduced:
1, the whole machine is made of SUS304 stainless steel. The water circulation vacuum pump can reduce the pollution to the flour and prevent the flour from damage to the vacuum pump.
2, man-machine interface control, can monitor, display a variety of parameters, can store 100 process recipe.
3, automatic water adding device, more accurate. Can be equipped with automatic adding device.
4, the vacuum state and the surface, so that the dough gluten, bite strength, tension are far superior to other and noodle machine, taste smooth, flexible, high transparency.

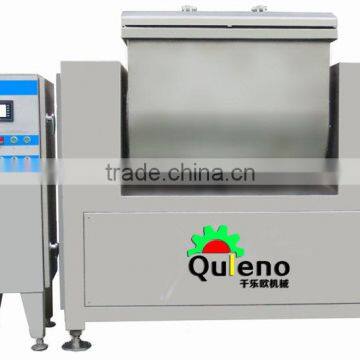

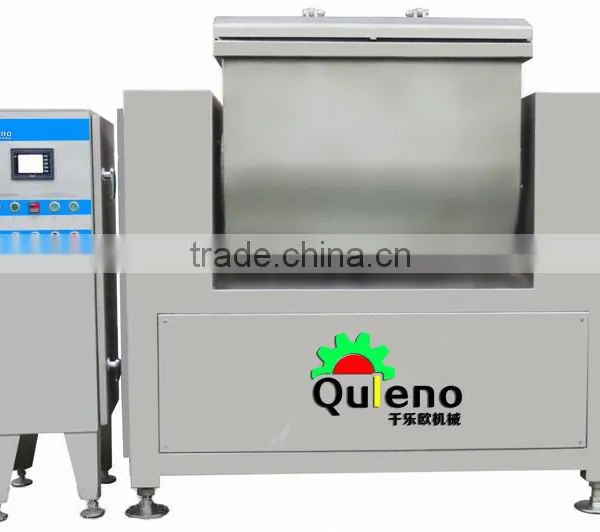

Product picture display
Main technical parameters:
Model |
Voltage |
Total power(KW) |
Surface tank volume (L) |
Production capacityKg/Times)
|
vacuum degree (Mpa) |
Nominal speed of agitator shaft
|
Outline dimension(mm)
|
Face box flip angle)
|
weight
|
ZHM120 |
3 phaseFiftyHZ 380V |
Twelve point six |
One hundred and twenty |
25~50 |
0~-0.09 |
41rpm |
1310*700*1500 |
Ninety-five |
Nine hundred and sixty-eight |
ZHM300 |
3 phase 50HZ 380V |
Twenty-five point one |
Three hundred |
75~100 |
0~-0.09 |
41rpm |
1800*1100*1820 |
Ninety-five |
Two thousand and ninety-seven |
HM300 |
3 phase 50HZ 380V |
Nine |
Three hundred |
100 |
/ |
27/35rpm |
1700*1050*1700 |
Ninety-five |
One thousand three hundred and seventy-six |
ZHM750 |
3 phase 50HZ 380V |
Forty-five point five |
Seven hundred and fifty |
250 |
0~-0.09 |
87rpm |
2800*1300*2400 |
Ninety-five |
Four thousand and two hundred |
ZHM200 |
3 phase 50HZ 380V |
10 |
Two hundred |
50 |
0~-0.09 |
20~86rpm |
1800*1435*1430 |
One hundred and eighty |
Nine hundred |
ZHM400 |
3 phase 50HZ 380V |
Twenty-one point five |
Four hundred |
100 |
0~-0.09 |
20~86rpm |
2325*1520*1575 |
One hundred and eighty |
One thousand and five hundred |
ZHM650 |
3 phase 50HZ 380V |
Twenty-six point two |
Six hundred and fifty |
100~250 |
0~-0.09 |
20~116rpm (frequency conversion) |
2800*1350*2010 |
One hundred and eighty |
Two thousand and two hundred |
JM400 |
3 phase 50HZ 380V |
Nineteen point five |
Four hundred |
100 |
/ |
45/90 (rpm/min) |
2200*1010*1700 |
Ninety-five |
2000 |
ZJM400 |
3 phase 50HZ 380V |
Twenty point five |
Four hundred |
100 |
0~-0.09 |
45/90 (rpm/min) |
2320*1000*1900 |
Ninety-five |
2000 |
