Helped Vacuum Sausage Filler Stuffer
- 100 Set / Sets per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
OULENO Supply garlic split machine manufacturer direct JY-139 sausage casing
-
OULENO Full automatic sausage wire bundling machine sausage casing
-
OULENO Sausage type U sealing machine manual punch machine sausage casing
-
OULENO Stainless steel meat grinder sausage casing
-
OULENO Automatic meat grinder with automatic lifting machine sausage casing
-
OULENO Export type stainless steel high quality meat grinder sausage casing
Product Details
| Brand Name | XIAOJIN | Model Number | GZY3600 | |
| Condition | New | Production Capacity | 3600KG/H | |
| Place of Origin | Hebei, China | Voltage | 380V/50Hz | |
| Power(W) | 8kw | Dimension(L*W*H) | 1960X1450X1850mm | |

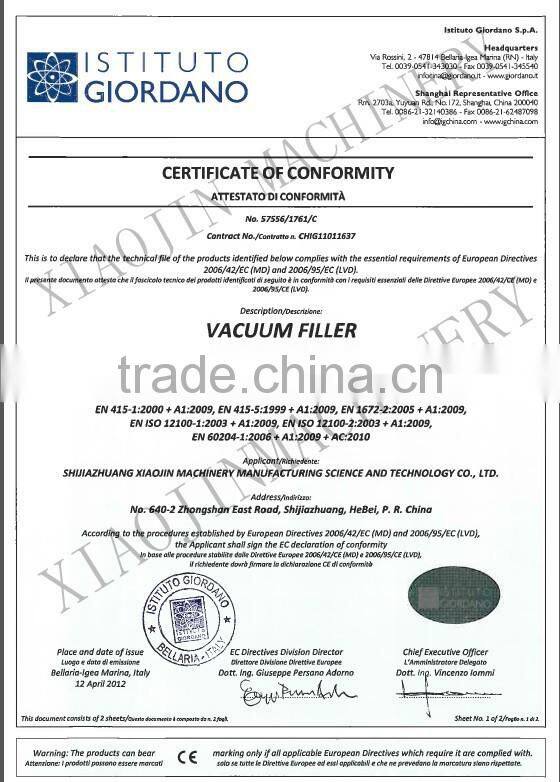

| Weight | 1260KG | Certification | CE ISO |
Product Description
After-sales Service Provided:Engineers available to service machinery overseas
Vacuum:-0.1

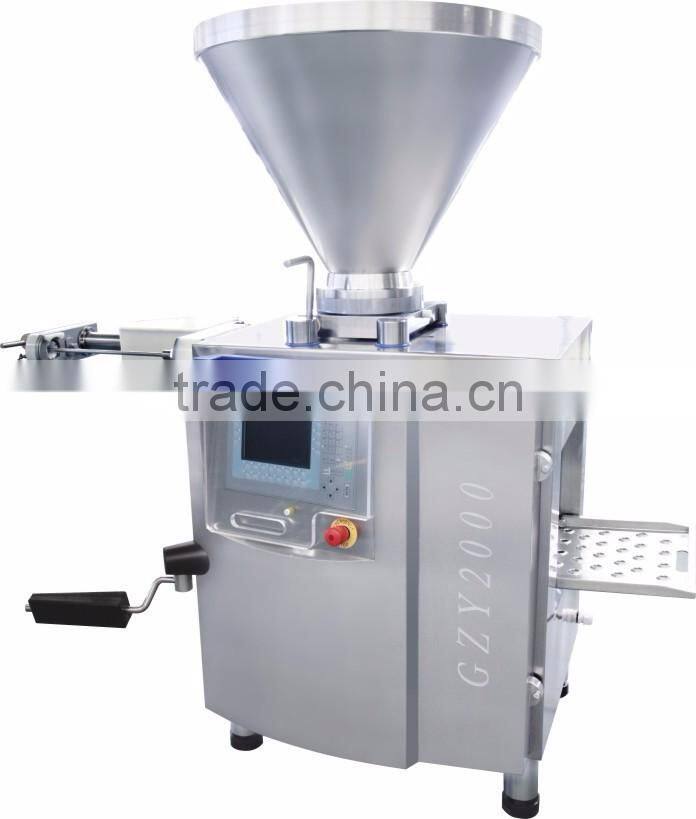

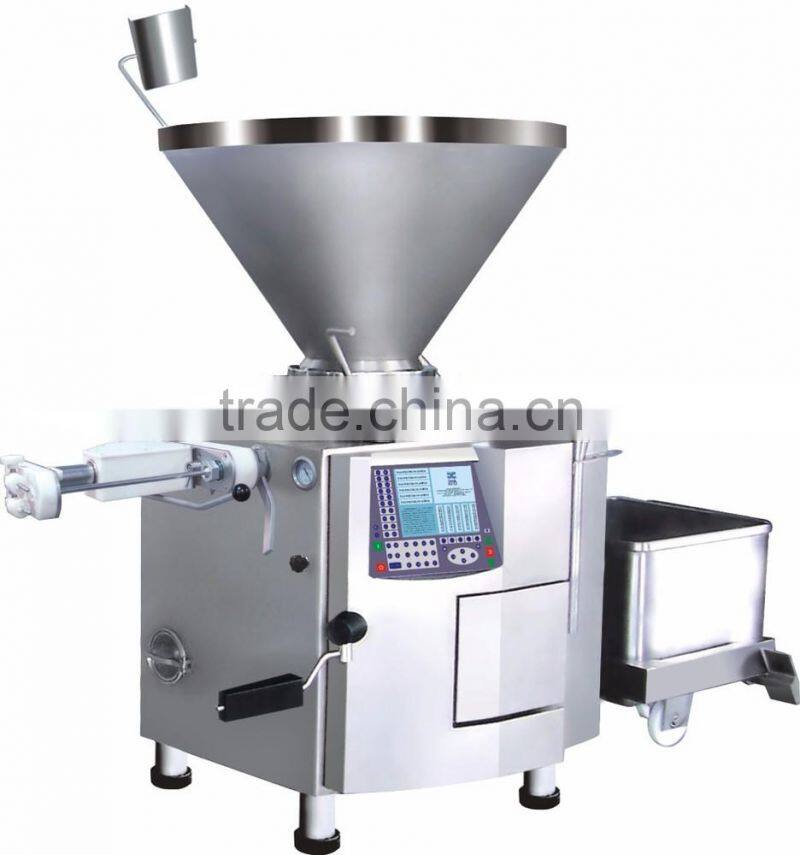

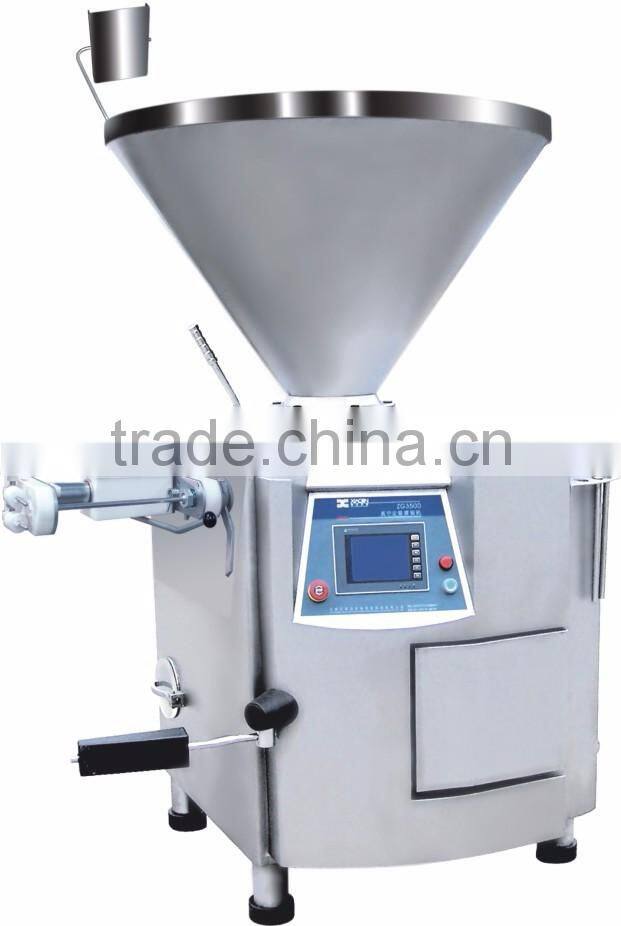

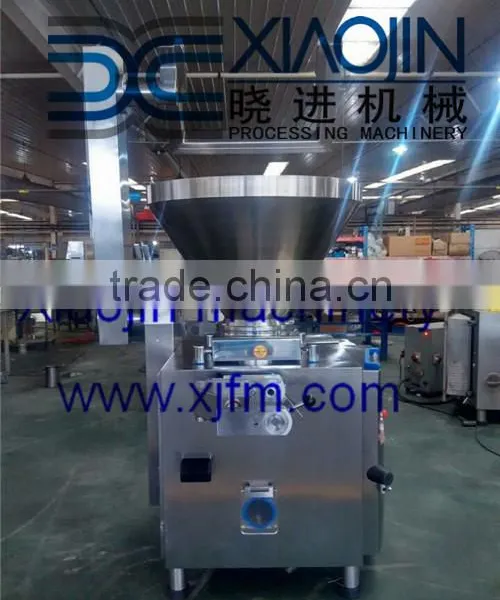

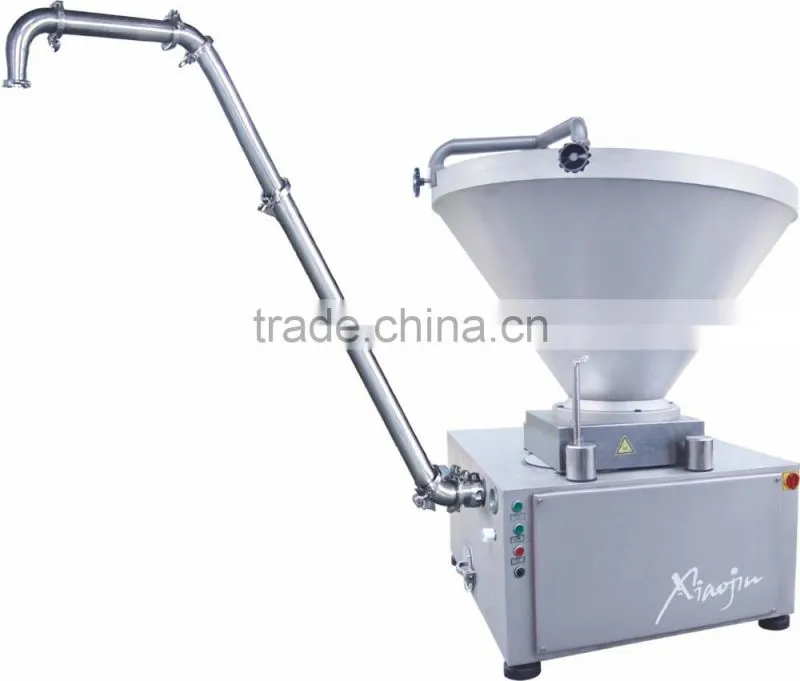

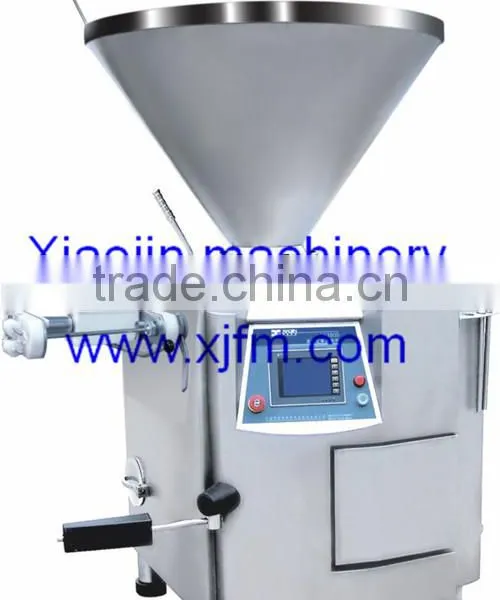

GZY3600 Vacuum Sausage Filler Machine
Feature:
1. Vacuum State: The filling process performed under vacuum state. Avoid fat oxidation and proteolysis, reduce bacteria survival amount. This guarantee a longer shelf life, brighter color and the pure taste of the products.

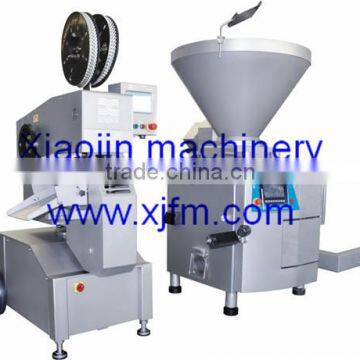

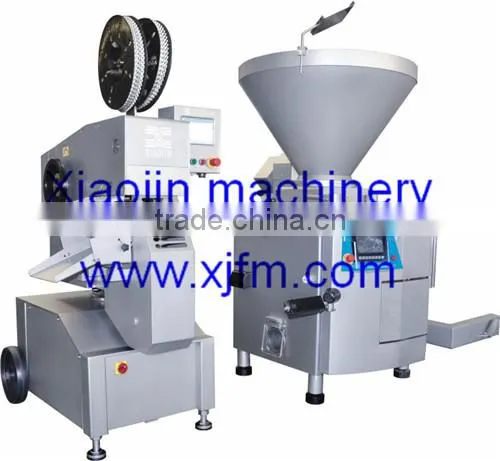

2. Auxiliary: Be equipped with automatic casing knot tying device that suitable for animal casing, protein sausage casing, collagen casing, etc.
Connecting with sausage length controller to realize high-speed knot tying procedure.
Connecting with double clipping machine to realize automatic produce.
The machine can link with auto sausage hanging machine and high-speed sausage length controller.
3. Each portion: 5g-99999g. The allowed error of paste product: 2g(400g).
4. Stuffing speed: can reach 500 per minute.
5. Key parts: produced by machine center with high precision. All of pump, impeller and blade have adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up. Man-machine interface, servomotor, decelerator, PLC controller are all imported products.
6. Vacuum degree can be reached -0.1Mpa.
7. Material: The whole machine adopts SUS304 plate. Unique exterior design and surface processing technique.
8. Blade: The machine adopts blades stuffing mode, material under vacuum state pushed out the material to the filling tube by the rotating blades to complete filling. Control the quantitification by the intersection angle.

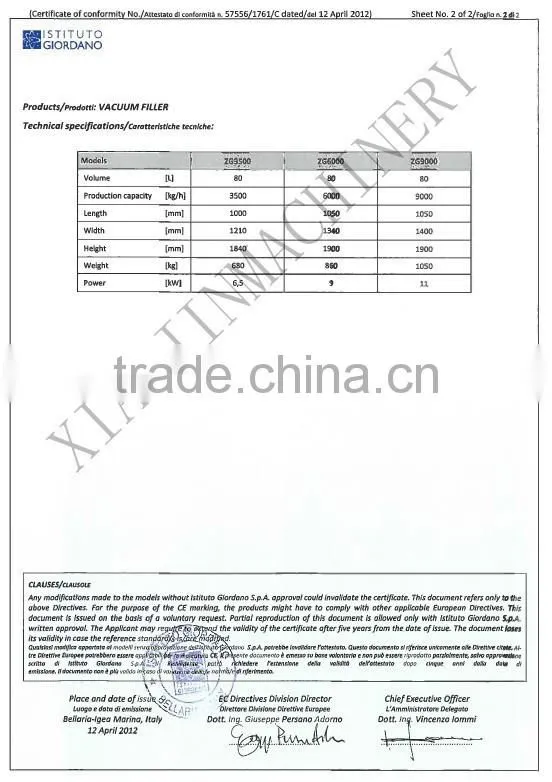

Specification of Some Types of Vacuum Filler:
Type | External Dimension (mm) | Power (Kw) | Hopper Volume (L) | Vacuum (Mpa) | Flling Capacity (kg/h) | Weight (kg) |
GZY3600 | 1960x1450x1850 (with lifter) | 8 | 220 | -0.1 | 3600 | 680 |
| GZY6000 | 1130x1150x1850 (with lifter) | 9.5 | 220 | -0.1 | 6000 |
Wrapped by plastic film and fixed in wooden package
- If you need, our technicians will go to your place to help you install and adjust the machine.
- Train your workers how to use and maintain the machine in daily use.
- Any parts you need will be sent directly from us.
Hebei Xiaojin Machinery Manufacturing Inc. was founded in 1986. We have over 30 years experiences in food processing machinery industry, which is playing a leading role in Chinese meat processing industry. Under the leadership of board Mr. Min Xiaojin, the company insists of modern management and an excellent staff and strong technical team. The products include, Vacuum Filler, Tumbler, Mixer, Slicer, Grinder, Saline Injector, Automatic smokehouse, Tenderizer, Bowl Cutter, Clipper and all kinds of clips. 30 types of products own National patents, since we have founded a comprehensive service system, our products earn pretty reputation among our clients. We have successfully entered into the International market and exported over 70 countries.
Company Overview:
Exhibition Room:
Office:
Workshop:
Q1: Are you a factory or trade company? Is it possible to visit factory?
We are the biggest manufacturer in China, you are welcome to visit our factory at any time.
Q2: Whats the after-sale service?
One years warranty, and lifelong after-sale service. Engineers are available to serve overseas.
Q3: What is the material of Xiaojins machines?
The main material we use for our machines is SUS304 stainless steel.
Q4: Is it available to use customers own Logo on the machine?
Yes, it is available. Please send your Logo to us before place order.
Q5: Customized voltage is acceptable?
Yes, it is acceptable. Please tell the voltage you required before place order.
Q6: Terms of Payment?
T/T, L/C, Visa, and Western Union.
Q7: What is the lead Time?
15-30 business days, depends on order qty. If the voltage is customized, the lead time may be longer. Please contact Xiaojin to know exactly date.
Q8: Price & Shipment?
Our offer is EXW factory price, FOB, CFR or CIF is also acceptable, we would assist our customers to arrange shipment.
Q9: How to contact us?
Cellphone/ Wechat/ WhatsApp: 86-13483425853
skype: xiaojinmachinery1
