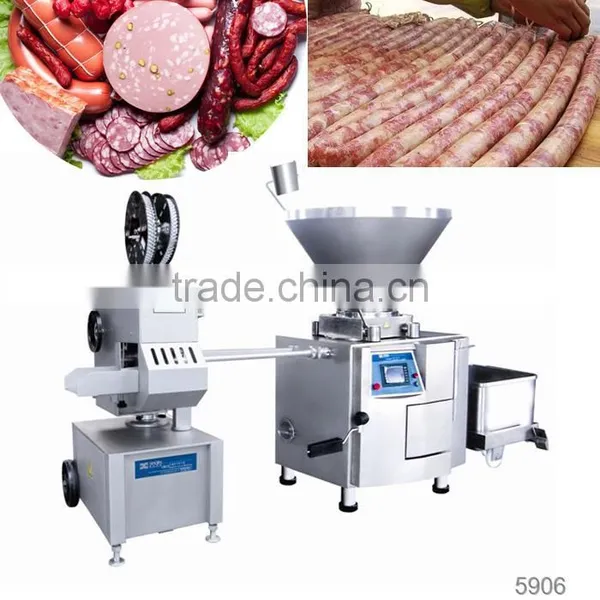

Helped Automatic Chicken Sausage Making Machine With Sausage Filler and Clipper

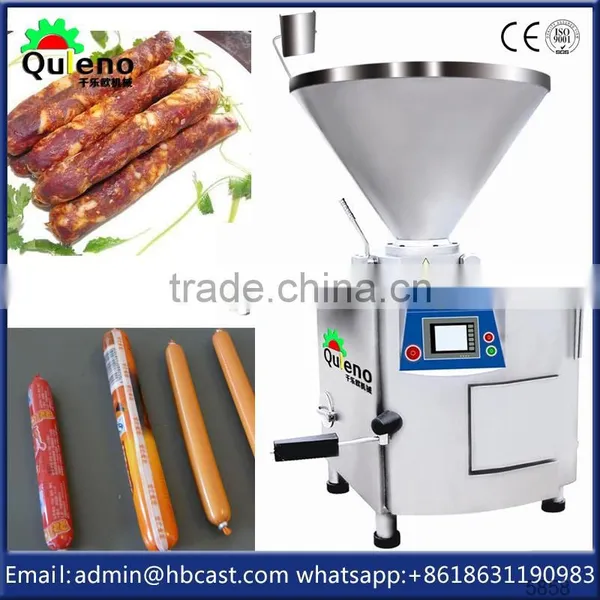

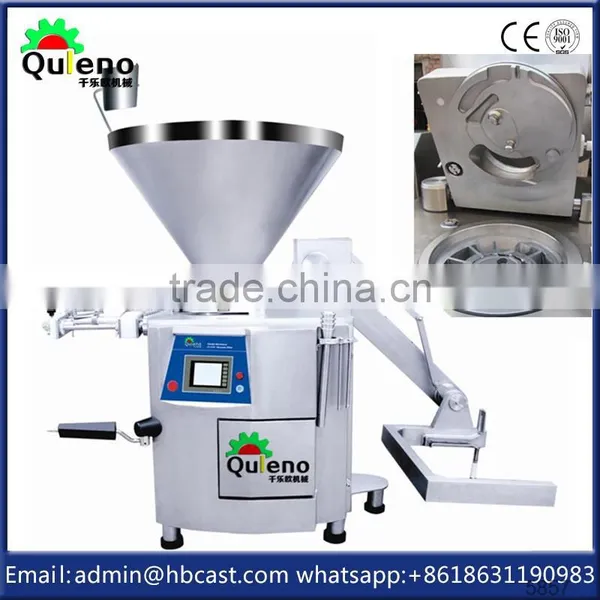

• GZY3600 Vacuum Sausage Filler can fill under vacuum state. Avoid fat oxidation and proteolysis.
• PLC control;
• SUS 304 stainless steel;
• Adopts Siemens electronic components;
• Germany Busch vacuum pump
• CE and ISO Certificate;

1. Vacuum State: The filling process performed under vacuum state. Avoid fat oxidation and proteolysis, reduce bacteria survival amount. This guarantee a longer shelf life, brighter color and the pure taste of the products.

2. Auxiliary: Be equipped with automatic casing knot tying device that suitable for animal casing, protein sausage casing, collagen casing, etc.

Connecting with sausage length controller to realize high-speed knot tying procedure.

Connecting with double clipping machine to realize automatic produce.

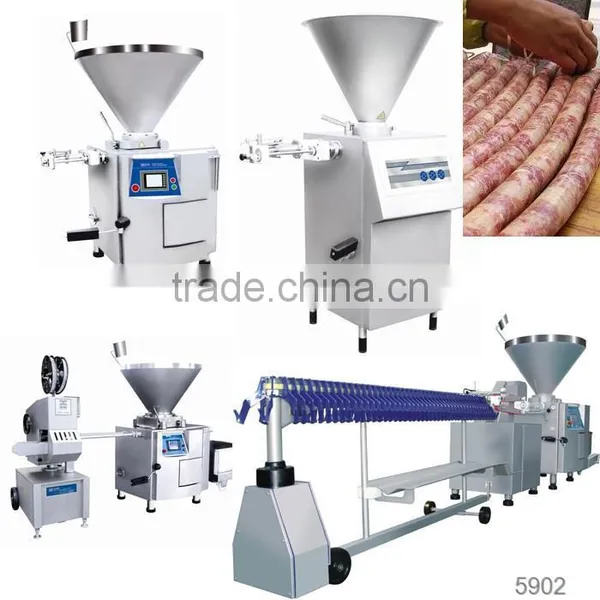

The machine can link with auto sausage hanging machine and high-speed sausage length controller.

3. Each portion: 5g-99999g. The allowed error of paste product: 2g(400g).

4. Stuffing speed: can reach 500 per minute.

5. Key parts: produced by machine center with high precision. All of pump, impeller and blade have adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up. Man-machine interface, servomotor, decelerator, PLC controller are all imported products.

6. Vacuum degree can be reached -0.1Mpa.

7. Material: The whole machine adopts SUS304 plate. Unique exterior design and surface processing technique.

8. Blade: The machine adopts blades stuffing mode, material under vacuum state pushed out the material to the filling tube by the rotating blades to complete filling. Control the quantitification by the intersection angle.

• DKJC 18/15 Sausage Clipper
• PLC control;
• SUS 304 stainless steel;
• Adopts Siemens electronic components;
• CE and ISO certificate;

1. Working speed: 1-9 level adjustable. Match with different type Great Wall aluminum clips.

2. Height of center: 920-1060mm adjustable.

3. Produced by Machine Center, improved manufacturing accuracy.

4. Cut sausage casing automatically, adjustable range 0-9 pieces, tightness adjustable.

5. It can link with any quantitative filling machines to realize automatic production.

6. DKJL18/15 Great Wall double clipper, the clipping mould 15 and 18 can be change in this machine.
