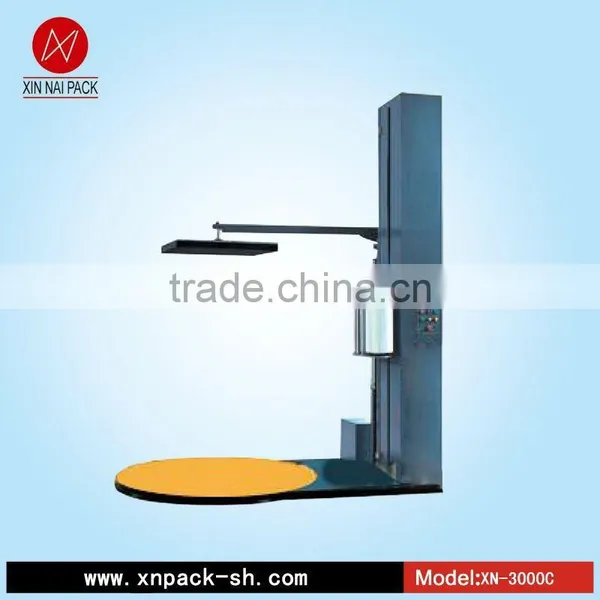

Automatic Pallet Wrapping Machine XN-3000C

Automatic Pallet Wrapping Machine XN-3000C photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity
Packaging Type Cartons
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Power Turntable motor power 0.75kw, film frame 0.23kw, column 0.37kw
Place of Origin Shanghai, China
Brand Name XINNAIPACK
Model Number XN-3000C

Specifications

automatic pallet wrapping machine
1,easy to operate
2,button operate panel
3,PLC
4,speed of rise and down adjustable

XN-3000C  automatic pallet wrapping machine







Features



1,  Film pre-stretch film frame rack system, pre-stretch up to 250%, Automatic film, film tension control of DC drive system
2,  Lifting column pulley bearing structure, and vertical speed adjustable frequency difference
 Systems PLC programmable control, push-button control panel, easy to understand
3,  Operating functions run automatically, auto-complete function of the machine settings
4,  Auto-sensing, and optical goods, a high degree of shielding, turntable automatic reset
5,  Manual to strengthen winding function, can set the top / bottom winding number of laps up and down the number of roof reinforcement ring number and the more time
6,  Press device adopts pulley bearing structure, the motor system, safe and smooth speculation, simple to use















parameters





1, Wrapped around the specification (500-1200) mm × (500-1200) mm
2, Package Height 2300mm
3, Packaging efficiency of 20-40 ADS / hr
4, Turntable speed 0-14rpm speed frequency adjustable from slow to stop turntable turntable slow automatic reset
5, Turntable Dimensions Diameter: 1500mm Height: 90mm
6, Turntable bearing 2000kg
7, Total Weight 700kg
8,  Overall dimension 2500mm × 1500mm × 2600mm
9,  Power Single-phase 220VAC/50Hz/20A
10, Turntable motor power 0.75kw, film frame 0.23kw, column 0.37kw
