CMV-19/25 Pneumatic Plastic (pet/pp) Air Stripping Tool

CMV-19/25 Pneumatic Plastic (pet/pp) Air Stripping Tool photo-1
US$ 200 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Belt
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity
Packaging Type Belt
Packaging Material Plastic
Automatic Grade Other, Semi-Automatic, Semi-Automatic
Driven Type Pneumatic
Place of Origin Shanghai, China
Brand Name XINAIPACK
Model Number CMV-19/25
Weight 3.8KG 4.0KG
After-sales Service Provided No overseas service provided

CMV-19/25 pneumatic plastic (pet/pp) air stripping tool

Features:

Small and light, easy to carry.

Not limited with working field.

a.suitable for PET strap
b.Tensioning,Adhasion&sealing,cutting finish at one time,easy to operate
c. strong tensioning  power, greater than 2800N and suitable for metallurgy, iron and steel, building materials industries

paramete

ModeCMVXQD-19CMVXQD-25
weight3.kg4.kg
Strap width10-19.0mm19-25mm
Strap thickness0.4-1.05mm0.4-1.35mm
strapping joint strenghabout 75%about75%
seal notch typefriction melting jointfriction melting joint
tensioning force2800N2800-3000N
average air pressure0.65MPa0.65MPa

1, Easy to use, light weight machine, pneumatic power design.
2, No fasteners, using friction heat welding, the interface appearance and reliable.
3, the high degree of automation, tight, controlled fusion crust strong.
4, large tightening force, the special structure design, easy steel, aluminum, heavy-duty packaging tighten and packaging.
5, machine durability, all of the body and components are made of high strength alloy materials, high-reliability design, advanced manufacturing technology.

A.E-mail reply within 24 hours

B.High quality products

C.Warm and kind service

D.Fast delivery

operation instructions

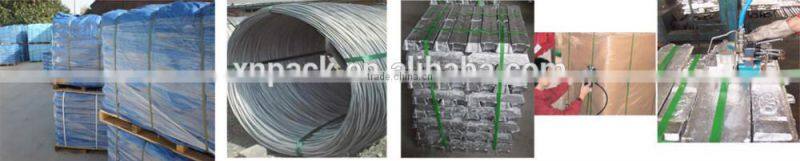

Application example





product details picture



Exploded view of tool

factory and office
