Specifications
New Hydraulic metal baling machine1.Strong:max 400KN
2.Low power: min 11kW
3.PLC control
4.Low Noise
New Strong Automactic Hydraulic Metal baling machine
Application:
Automactic Hydraulic Metal baling machine is suitable for the steel works and the recovery and precess industries, colored and black metal smelt industries. It can ectrude every kinds of metal leftover materials, steel paring, waste copper and waste aluminum into qualified charging such as square column.
Features of hydraulic metal baling machine
1. No installtion demands, operating the baler directly
2. PLC automatic control.
3. Three rams pressing the scrap metals.
4. With blades on two sides of chamber sides and lids.
5. With cooler and hotter ( For special temperature environment)
6. Hydraulic Oil is ISO 46
7. The guard plate on the pressing chamber is made of S45C plate.
Part parameter of hydraulic metal baling machine
Model |
Y81/T-63 |
|
Nominal push force (kN) |
630 |
|
Dimension of externality (mm) |
3255×2400×1947 |
|
Dimension of compressed room (mm) |
1000×600×500 |
|
Package block dimension(mm) |
200×200 |
|
Package block avoirdupois (kg) |
35-6 |
|
Output (ton/hr) |
1-1.2 |
|
Matched capacity (kw) |
7.5 |
|
Hydraulic pump |
63YCY |
|
Single cycle time(s) |
90 |
|
Model |
Y81/T-160A |
Y81/T-160B |
Nominal push force (kN) |
1600 |
1600 |
Dimension of externality (mm) |
4265×3695×2535 |
4265×4090×2535 |
Dimension of compressed room (mm) |
1600×1000×800 |
1600×1200×800 |
Package block dimension(mm) |
350 or 400×400 |
400×400 |
Package block avoirdupois (kg) |
110-150 |
130-180 |
Output (ton/hr) |
2.2-3.2 |
2.6-3.8 |
Matched capacity (kw) |
22 |
15 + 22 |
Hydraulic pump |
160YCY |
63 YCY + 160YCY |
Single cycle time(s) |
110 |
100 |
Model |
Y81/T-200A |
Y81/T-200B |
Nominal push force (kN) |
2000 |
2000 |
Dimension of externality (mm) |
4590×4500×2550 |
5420×4900×2795 |
Dimension of compressed room (mm) |
1600×1200×800 |
1800×1400×900 |
Package block dimension(mm) |
400×400 |
400×400 |
Package block avoirdupois (kg) |
150-230 |
190-280 |
Output (ton/hr) |
3.1-4.2 |
3.5-5 |
Matched capacity (kw) |
18.5×2 |
15 + 22 |
Hydraulic pump |
80YCY×2 |
63 YCY + 160YCY |
Single cycle time(s) |
110 |
115 |

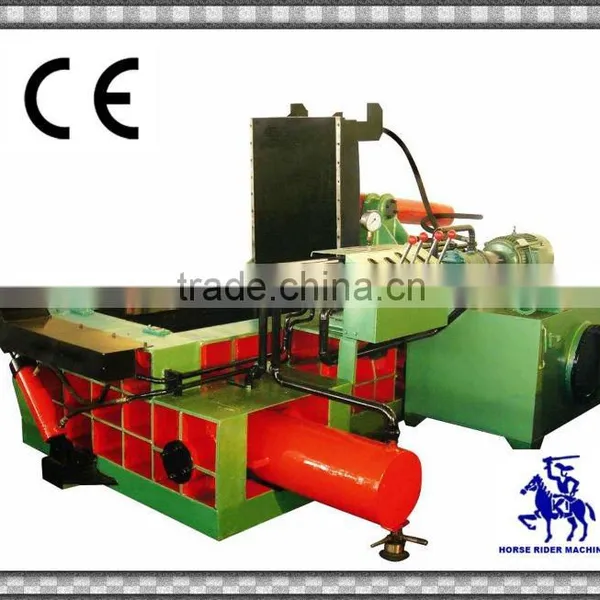

Reference photos of hydraulic metal baling machine
(all photos and parameter of hydraulic metal baling machine only for reference)
