Description:
Single shaft shredder is mainly used in all kinds of hollow or solid plastic material. The shredder machine is suitable to PE, PP, PET, ABS, PVC and engineering plastics..
Single shaft plastic shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
This plastic shredder machine has the advantages of stable running lower noise and big torque...
The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.
Features:
1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2)PLC control system with automatic overload protection and auto reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly

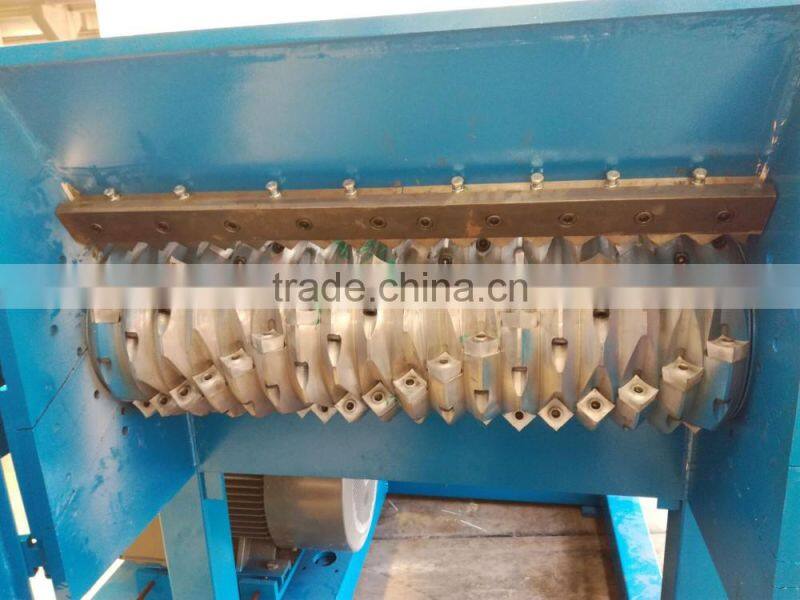

4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed

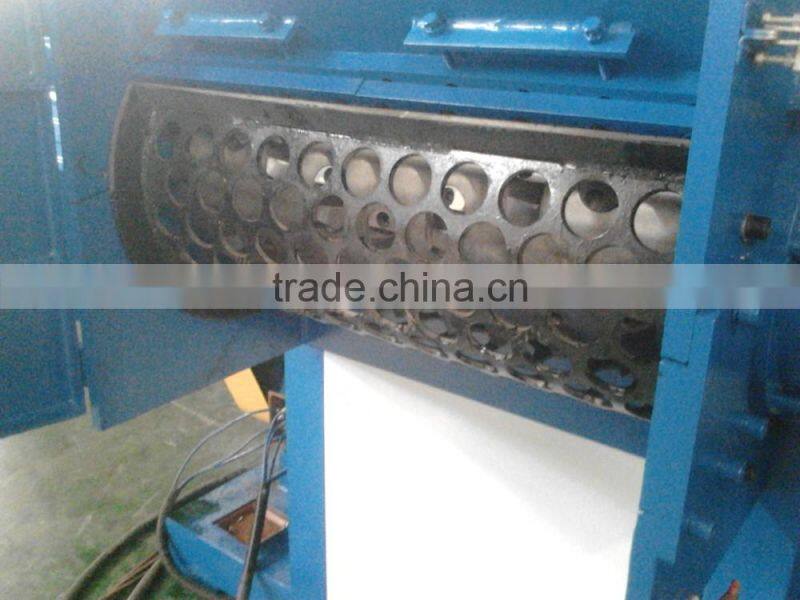

7)Screen mesh is adjustable according to customers' requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
Technical data:
Technical parameter
| WT300 | WT400 | WT500 | WT600 | WT800 | WT1000 | WT1250 |
Quantity of rotary blades
| 22pcs | 20pcs | 24pcs | 28pcs | 46pcs | 64pcs | 72pcs |
Quantity of fixed blades | 2pcs | 2pcs | 2pcs | 4pcs | 4pcs | 4pcs | 4pcs |
Size of feeding mouth(mm) | 300X300 | 400X400 | 500X500 | 600*800 | 800×800 | 1000×1000 | 1250×1250 |
Diameter of rotation(mm)
| 150 | 220 | 220 | 220 | 400 | 400 | 500 |
Speed ( r/min)
| 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 |
Motor power (kW)
| 4 | 11 | 15 | 18.5 | 37 | 45 | 75 |
Hydraulic pressure power(KW) | 0.75 | 0.75 | 2.2 | 2.2 | 2.2 | 3 | 4 |
Size of the screener (mm)
| 22 | 22 | 22 | 22 | 22 | 22 | 22 |
Weight (kg)
| 300 | 1100 | 1100 | 2200 | 3100 | 4500 | 7000 |
Motor protection standard | IP44 | IP44 | IP44 | TP44 | TP44 | TP44 | TP44 |
Noise (decibel)
| ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 |
F A Q
Q: Are you trading company or manufacturer ?
A: We are factory ,welcome to visit factory anytime.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
