PVC Pellet Machine for Recycling Plastic Granule Cutting Machine
- Shanghai
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Die Face Cutting PVC Recycling Pelletizing Machine for Sale
-
PVC Pelletizing Granulating Machine Pellet Granule Extrusion Line
-
PVC Plastic Extrusion/ PVC Granulating Machine
-
PVC Plastic Extrusion/ PVC Pelletizing Machine
-
PVC Granules Machine/ PVC Hot Cutting Pelletizing Line
-
New Pvc Material Pelletizing Machine Manufacturer/soft and Rigid Pvc Pelletizing Extruding Line
Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Jiangsu, China | |
| Brand Name | China Horse rider | Model Number | SJSZ | |
| Voltage | 380V 50HZ 3Phase(Customized) | Power(W) | 37KW-90kw | |
| Dimension(L*W*H) | Based on machine model | Weight | 5T | |
| Certification | ISO CE SGS UL | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application of PVC granulating machine:
Certification: ISO9001:2000 CE
Output:80-800kg/h
PVC Pelletizing Granulating Extruder Extrusion Machine Line
Function:
pvc hot-cutting line is mainly used in hot-cutting PVC and other plastic.
The pvc granualting machine is suitable for the pelletizing of pvc raw material with wood powder or other additives.
Feature:
1. Precision is high. Hot-cutting efficiency is high. Installation and movementis convenient.

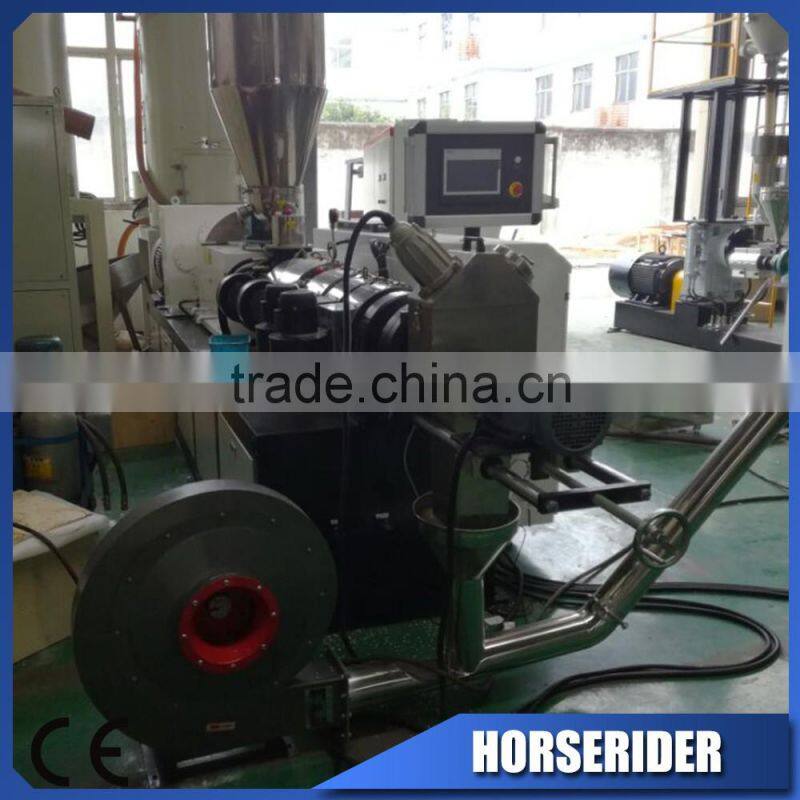

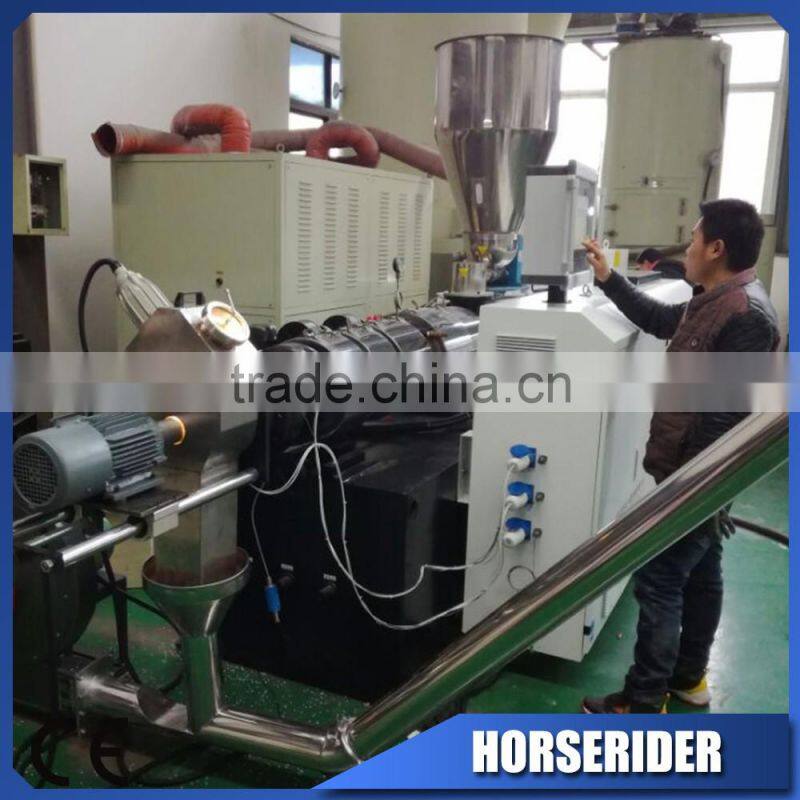

2. This pvc granulating machine is composed by a conical twin screw extruder and the correspindingly pelletizing downstream equipment, it is suitable for the pelletizing of pvc raw material or add some additives, such as wooden power.

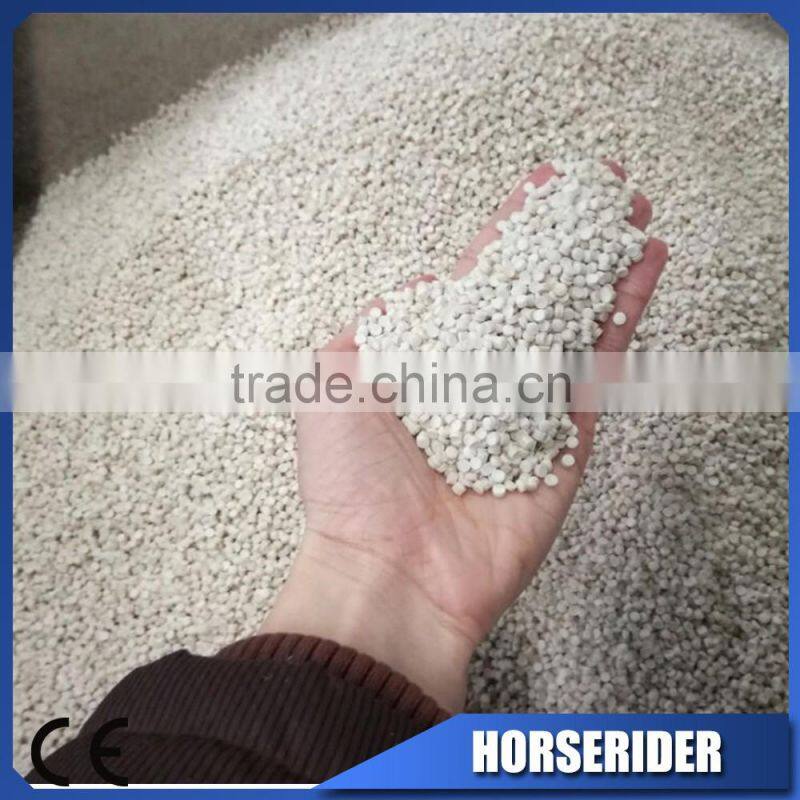

3. The pellets produced by this machine is evenly, solid, elegace.

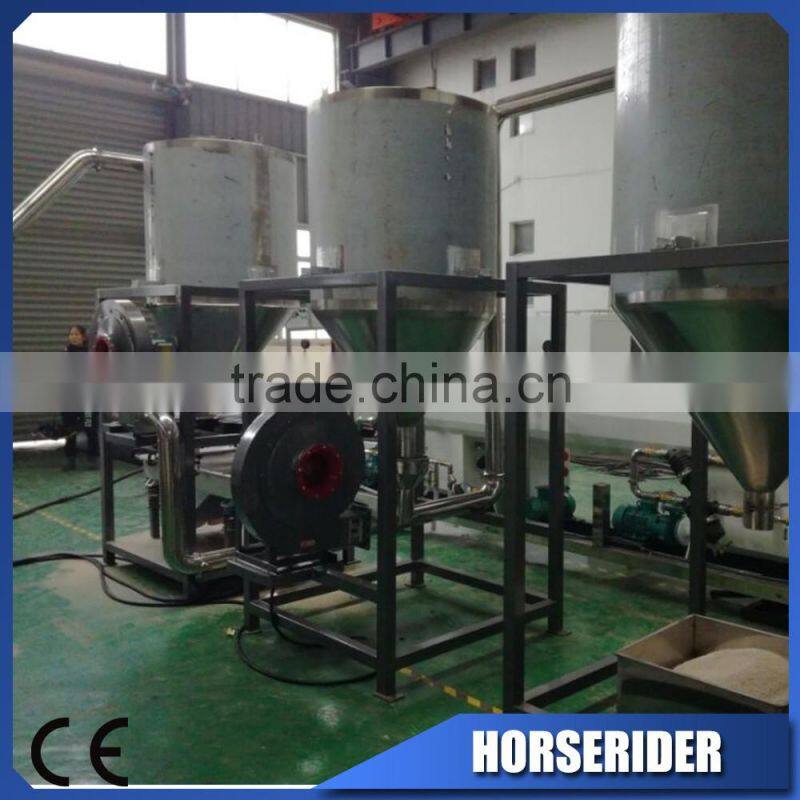

4. The pelletizing downstream equipment is the die face cutter, air transferring unit, vibration screen and fan delivery system, this pelletizing auxuliary machine has the features of high automation and high production efficiency.
5.The screw and barrel, made of 38CrMoAlA, and made through smithing, tempering, nitriding treatment.Different from other: screw edge is tempered after rough finish with good harder ability, and double aging reduce efficiently stree, Meanwhile, through accurate processing, phases of screw edges have small error, the barrel and screw have high universal property, the structure of screw is different based on the material.
Process flow:

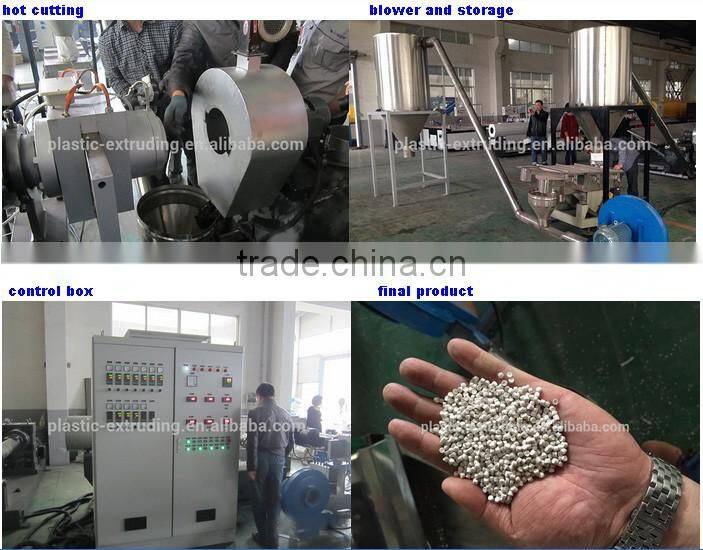

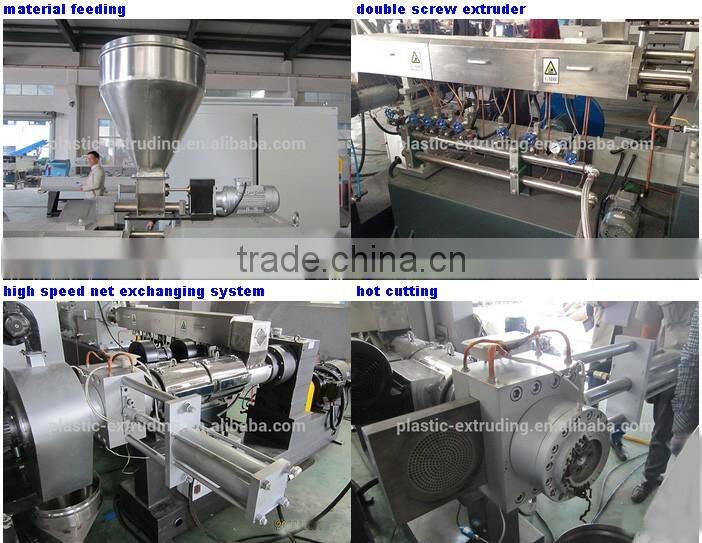

Raw material+ additive → Mixing → Material feeding→ Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing
| Extruder type | SJSZ51/132 | SJSZ55/110 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Motor power | 18.5kw | 30kw | 37kw | 55kw | 110kw |
| Capacity | 80-120kg/h | 150-180kg/h | 250-300kg/h | 350-400kg/h | 600-800kg/h |
F A Q
Q: Are you trading company or manufacturer ?
A: We are factory ,welcome to visit us anytime.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
