Horserider PP / ABS Plastic Miller Machine / Grinder
- Shanghai
- T/T
You May Like
-
Horserider PE Plastic Grinder
-
High Speed Plastic Pvc Powder Mill/pulverizer/mixing Machine
-
High Speed Pvc Scrap Pulverizer Machine/plastic Pulverizing Machine
-
High Speed Plastic Pvc Milling Machine/plastic PVC Pulverizer
-
PE Pellet Mill/ PE Micronizer / PE Pulverizer
-
High Output Plastic Powder Grinder Machine for Promotion
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HorsiRider | |
| Model Number | MF | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Speed Plastic Miller / Grinder
Performance characteristics
The MF series automatic plastic grinding mill is disc-type plastic grinding mill series,which has the advantages of high-yield and low-power.This machine can be used for powder processing of PE,PVC,PP,PS,ABS,nylon and other materiels.

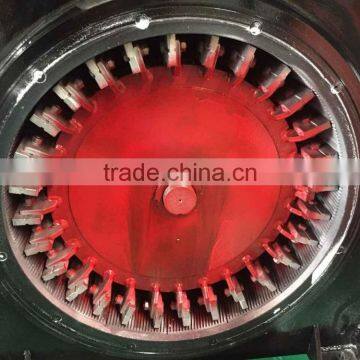

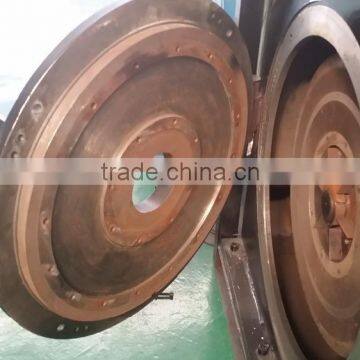

1),The new disc design is used,high-yield,strong resistance and the life if this grinfding disc is double the ordinary.
2),The use of newly designed professional bearings,and reached a high rotation rate.At the same time using only one drive motor,to ensure the efficent grinding crash,which greatly saves the time and operation of machinery and control engerneering.

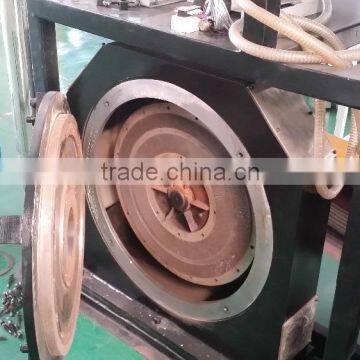

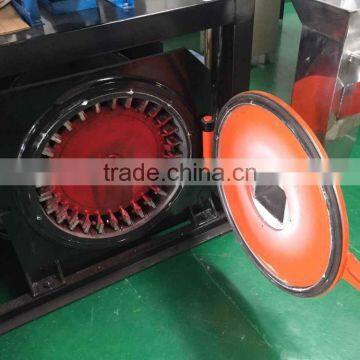

3),Installation and maintenance is easy,open the door to cover clean-up.
4),Milling process of the whole seal,without dust leakage.
5),Full automatic,auto matic feeding,the materials and sorting.
6),Gringding gap adjustment is simple,just use the plug-foot bolts and adjustments can be fine
tuning.
7),The host used the water and wind double cooling system,Rational design of smaller cross-section of the gringding chamber,grinding is almost flat vertical surface.Material entered the grinding chamberas soon as caught,groud,and then rapidly removed,which eliminates the grinding chamber of the surge in materials,heating materials to aviod decomposition,resulting in improved production.
The Parameter
No | Item | SMF-400 | SMF-500 | SMF-600 |
1 | Main motor power | 30KW | 37KW | 45kw |
2 | Capacity (PVC 30-80mesh) | 50-120kg/h | 60-220kg/h | 280-380kg/h |
3 | Material of conveying pipe | Stainless steel | Stainless steel | Stainless steel |
4 | Total weight(kg) | 1000 | 1200 | 1800 |

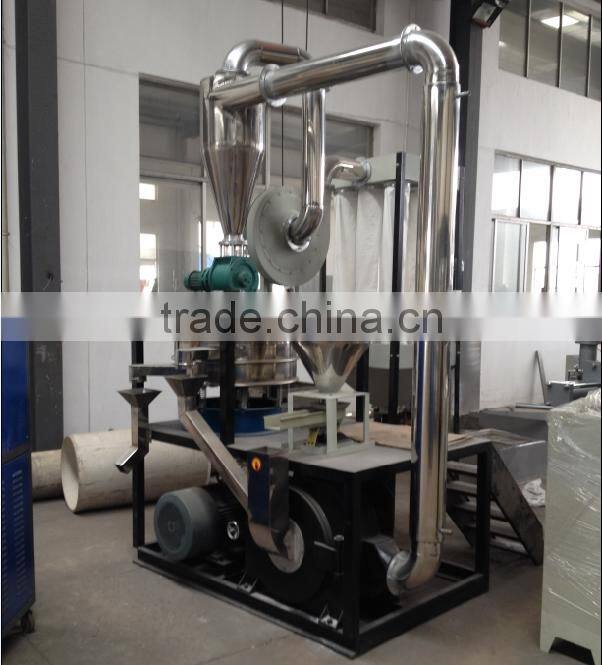

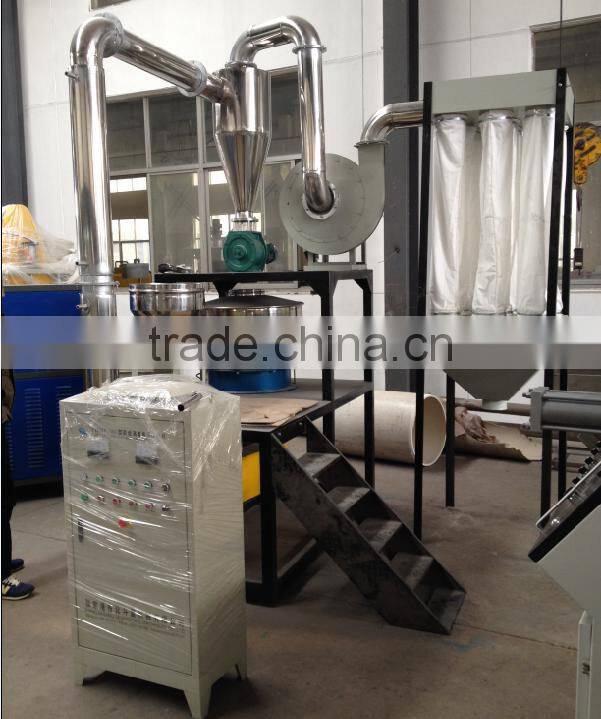

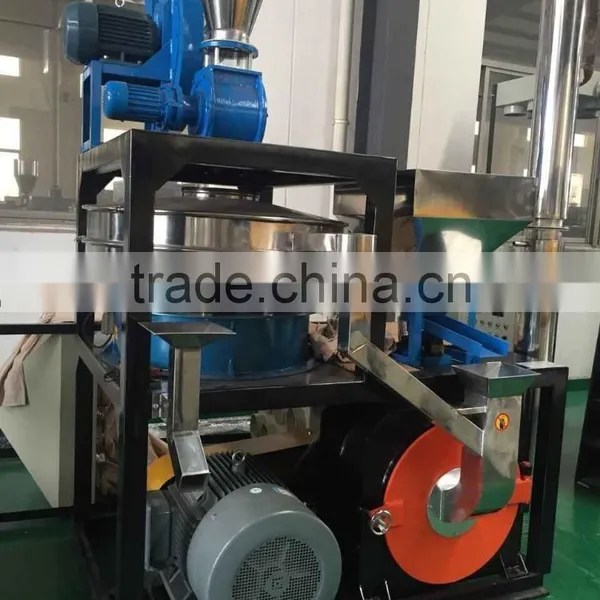

The Equipment

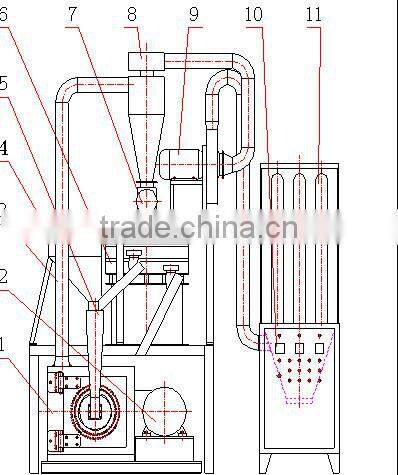

1.milling room2.Main motor3.Air pipe4.Hopper/ loader5.Vibrating material feeding
6.Vibrating sieve7.Cyclone butterfly valve8.Cyclone separator9.Air blower
10.Control cabinet 11.Dust collector
