Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder

Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder thumbnail-1
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder thumbnail-2
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder thumbnail-3
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder thumbnail-4
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder thumbnail-5
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder thumbnail-6
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder photo-1
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder photo-2
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder photo-3
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder photo-4
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder photo-5
Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder photo-6
US$ 8,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HorseRider
Contact Supplier Request Quote Chat Now
Zhangjiagang Horse Rider Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HorseRider
Model Number DC
Use Waste Plastic Crusher
Plastic Type PP/PE
Shaft Design Single
Power 2.2-15KW/Crusher Grinder
Capacity 50-1000kg/h/Crusher Grinder
Voltage 380V or Customized/Crusher Grinder
Power(W) According to the Model/Crusher Grinder
Dimension(L*W*H) Negotiations/Crusher Grinder
Weight According to the Model/Crusher Grinder
Certification CE / ISO /Crusher Grinder
After-sales Service Provided Engineers available to service machinery overseas

Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder

Product Description

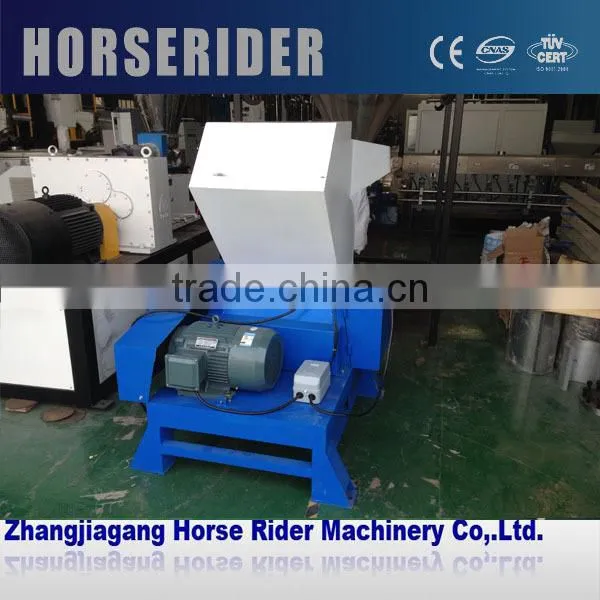

                                                                       Plastic Crusher



Specifications:

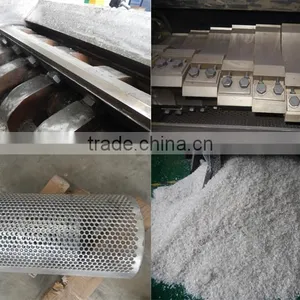

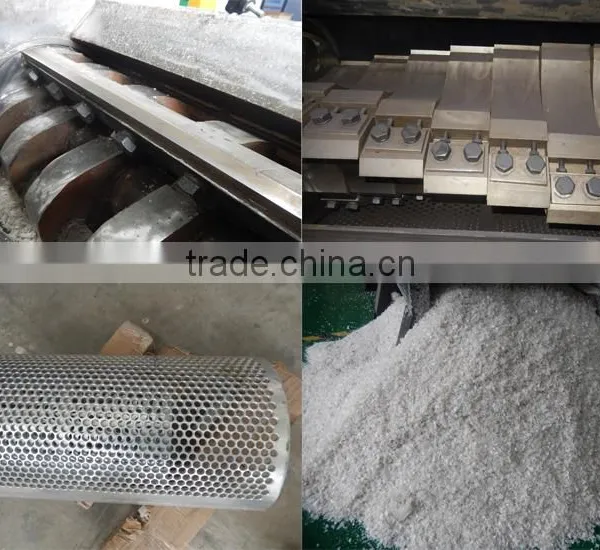

1.high quality tool steel, cutting-tool
2,using life is very long
3,easy operation



Character of PC series Plastic Crusher:

PC series plastic crusher absorbs domestic and foreign advanced technology; it has the rational design and repeated tests and keeps improving.
The machine has some features such as light in weight, low energy consumption, good quality, long life and easy to clean. PC series plastic crusher is suitable for smashing polystyrene, polypropylene, nylon, defective plastic products of injecting and extruding machine. If you change the suitable sieve and adjust the space among the blades, it can also be used in smashing the waste of various plastic such as PVC/PP/PE films, PET bottle, and plastic sheet and so on.

It is a very important machine for recycling PP PE film, PET bottles and etc plastics.



Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder


Parameter



Model
Crushing room dimension
(mm)
Capacity
(kg/h)
Motor
 power
Number of fixing blade
Number of rotating blade
Machine dimension
(L*W*H)mm
Weight
(KG)

PC-180
190*195
30-80
2.2
2
6/9
680*530*800
250

PC-230
210*230
50-110
4
2
6
890*650*1102
300

PC-300
310*240
100-250
5.5
2
9
1050*800*1200
450

PC-400
410*255
200-450
7.5
2
12
1200*880*1330
550

PC-500
510*270
360-720
11
4
15
1380*1000*1380
650

PC-600
610*270
470-870
15
4
18
1380*1100*1500
750

PC-500H
510*350
420-720
15
4
9
1400*1100*1600
1000

PC-600H
650*425
600-870
22
4
12
1400*1130*1810
1800

PC-800
810*520
800-1000
30
4
15
2080*1500*2100
2000

PC-1000
1001*650
1000-1300
37
4
18
2080*1780*2100
3000

PC-400 for film
410*255
50-150
7.5
2
6
1200*880*1330
550

PC-600 for film
610*270
100-250
15
4
6
1330*1100*1500
750





 Waste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder

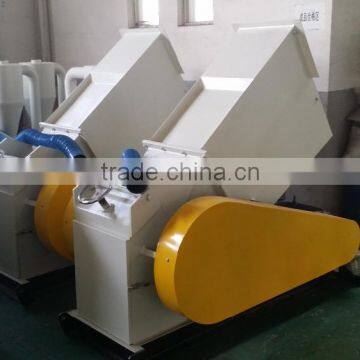

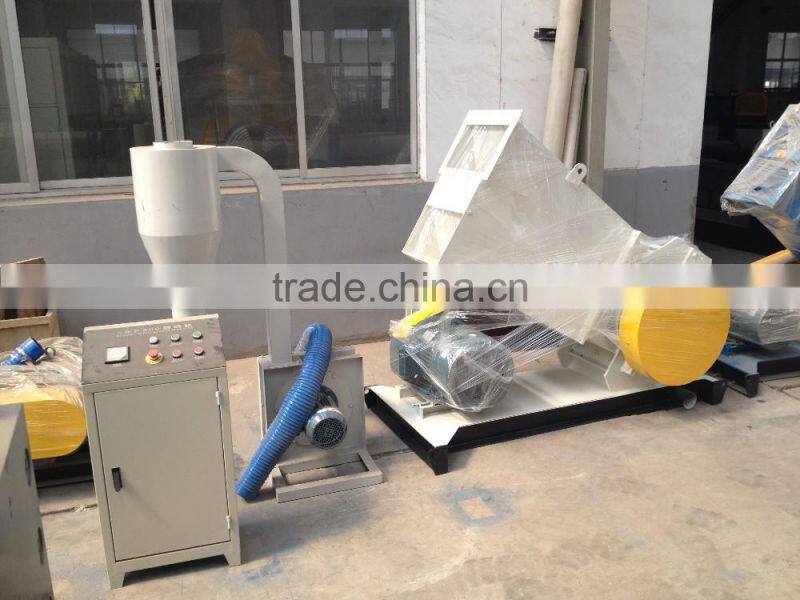

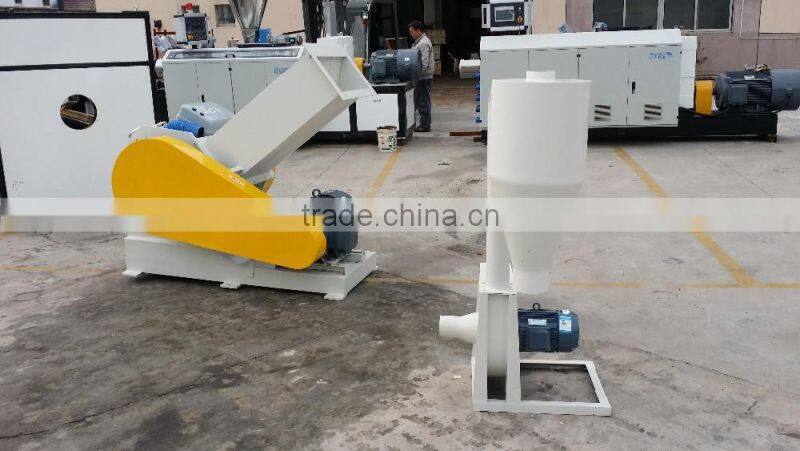

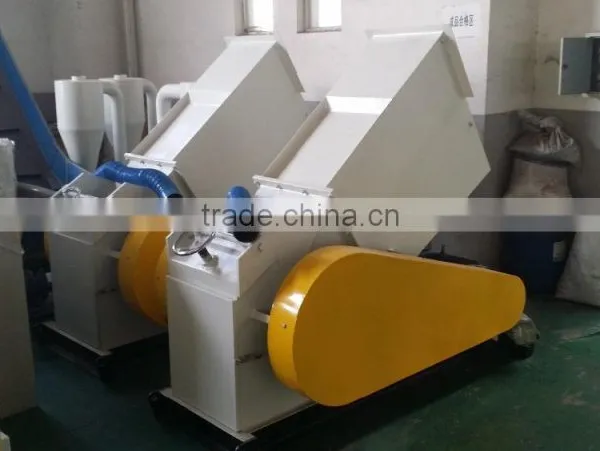

                                                                          Plastic Pipe Crusher

Waste plastic pipe crusher / hard Plastic pipe grinder

1) Suitable for recycle of all kinds of plastic bottles, containers, pellicle, plastics sheets,spurs from injection molding machines and extrustion parts.

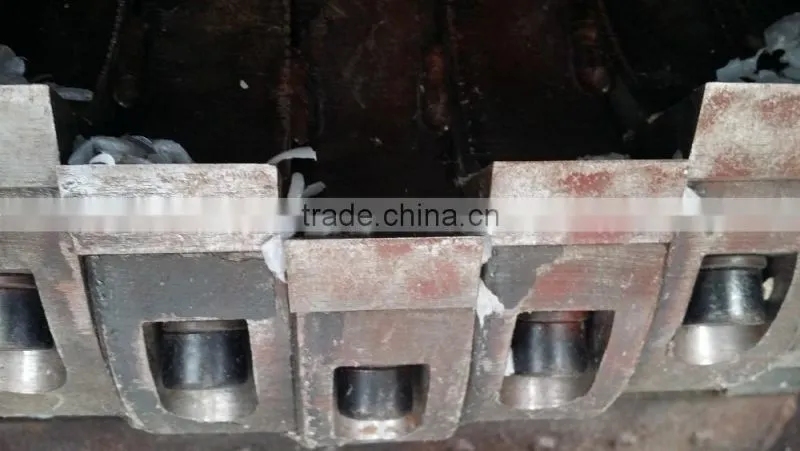

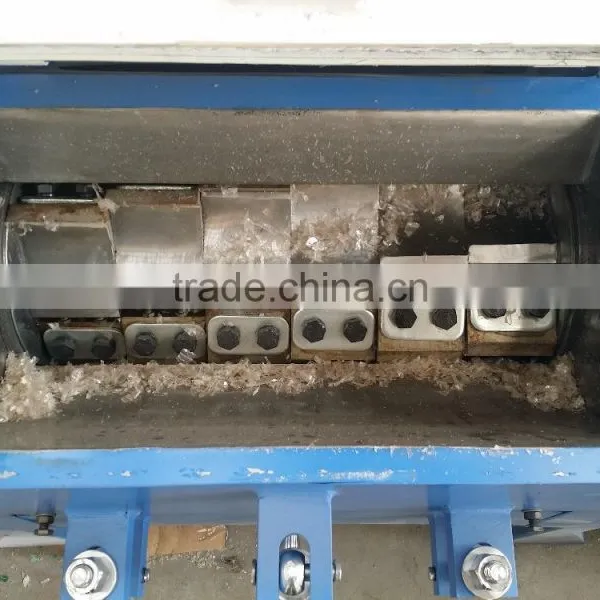

2) The cutter stand is designed as a step-shearing style, which can resolve the force bored by cutting, and increase the force of cutting greatly.

Waste Plastic Pipe Crusher Machine/PET Bottles Crusher GrinderWaste Plastic Pipe Crusher Machine/PET Bottles Crusher GrinderWaste Plastic Pipe Crusher Machine/PET Bottles Crusher Grinder

 Parameter



Model

SWP150

SWP200

SWP210

SWP300

SWP320

SWP380

SWP400

SWP630

Diameter of turning knife(mm)

150

200

210

300

320

380

400

630

Number of turning knife

9

3

3

3

6/2 groups

12/4 groups

5

9/3

Turing speed of knife(r/min)

730

870

500

640

650

650

500

480

Number of fixed knife

2

2

2

3

2

8/4 groups

2

4/2

aperture of screen panel

φ8

φ8

φ8

φ12orφ14

φ8

φ10

φ10

φ10

Crushing capacity(kg/h)

60-200

50-110

80-120

50-250

250-350

100-400

350-450

700-850

power

5.5

4

4

37

11

27.5

13.2

44

Current source

380V50Hz

Size of feeding gate(mm)

150×200

240×350

250×230

260×1200

500×280

268×1120

375320

820610

weight(kg)



300

320

2000

1400

800

980

5000

Outline dimension(mm)

1200*820
*1160

1000*590
*1090

800*600
*1400

1550*1300
*1850

1613*1150
*1910

1800*1460
*1380

2500*1200
*2000

2500*1550
*2850

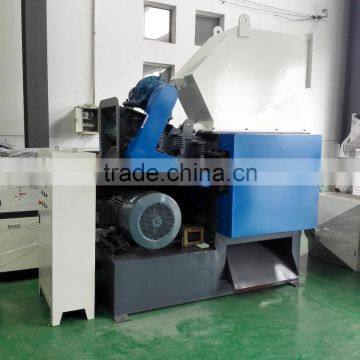

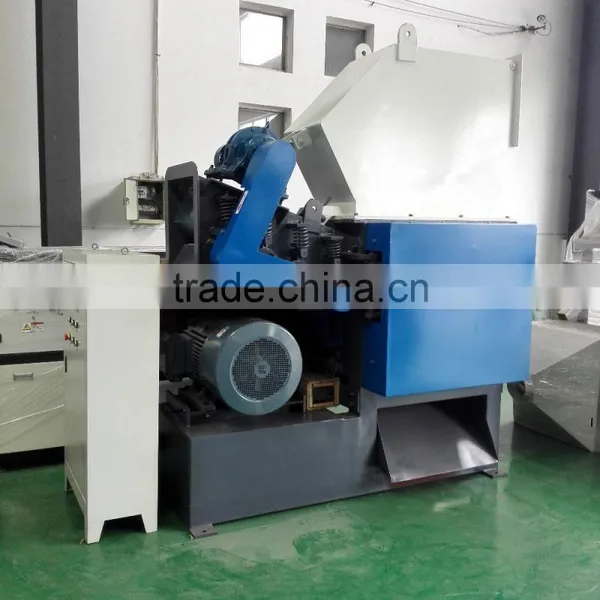

                                                                                   PVC Panel Crusher



Our SWP700 series crusher adopts the advanced technology introduced from Europe, and passed the CE Certification of Quality System. Low speed, high torque, low noise.



Over-load protector, the machines is suitable to treat different type of PVC sheet and PVC board and PVC panel and different lumps from PVC waste.
The machine is used to crush big waste to pieces for next mill and with very high safety service.
