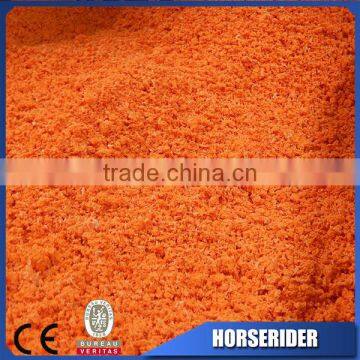

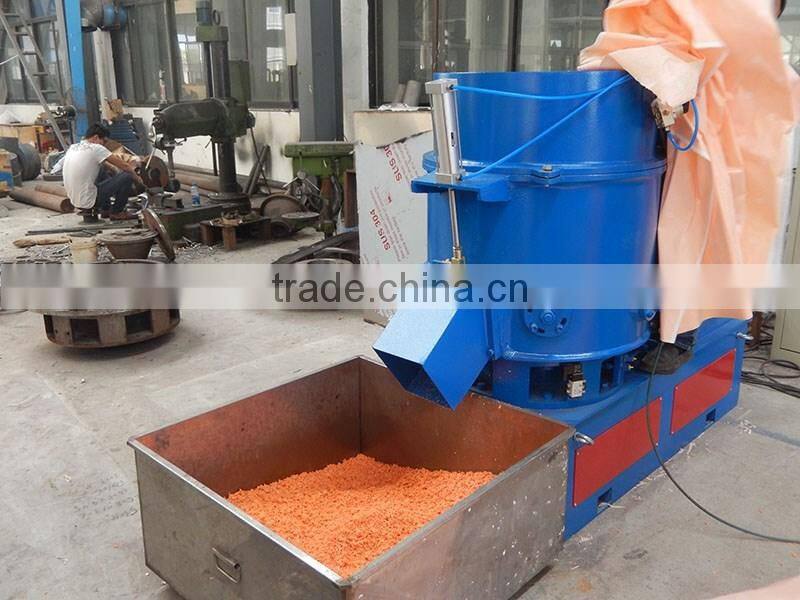

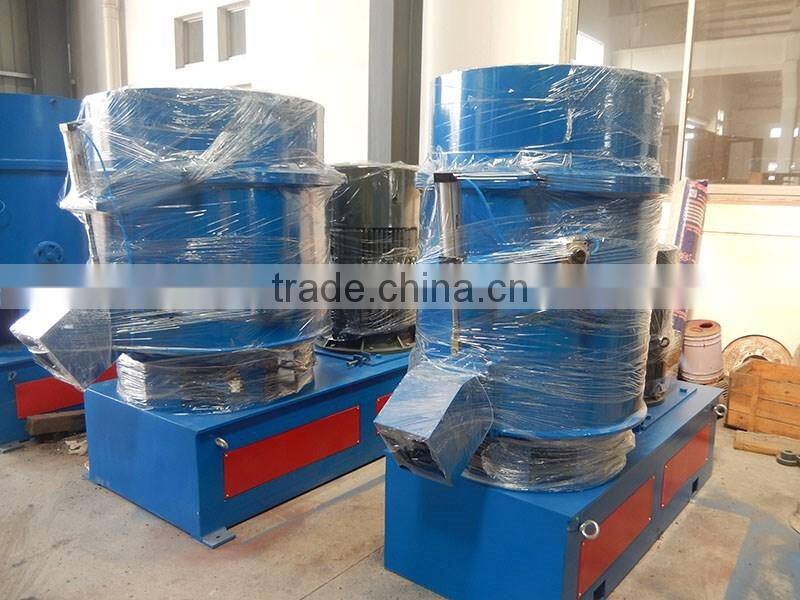

GSL series agglomerator machine can process waste plastic films and other materials with wall thickness less than 2mm into particles/granules.

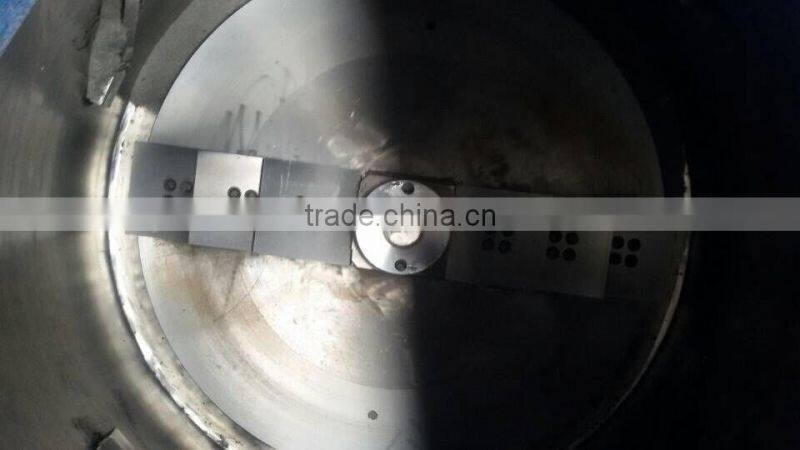

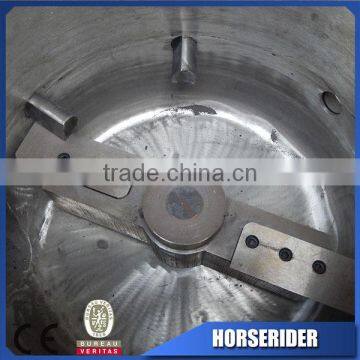

It is suitable for soft PVC, HDPE, HDPE, soft PP and other thermoplastic waste plastic. When the waste plastic is put into the crushing chamber of the machine, the plastic will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material will adsorb lots of heat from the frictional movement of being crushing, and then the plastic will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared will be sprayed into the semi-plasticizing material. The water will be evaporated off quickly and the surface temperature of material will drop down quickly also. So the material being crushed will become small particles or granules. Then, you can discharge the material.

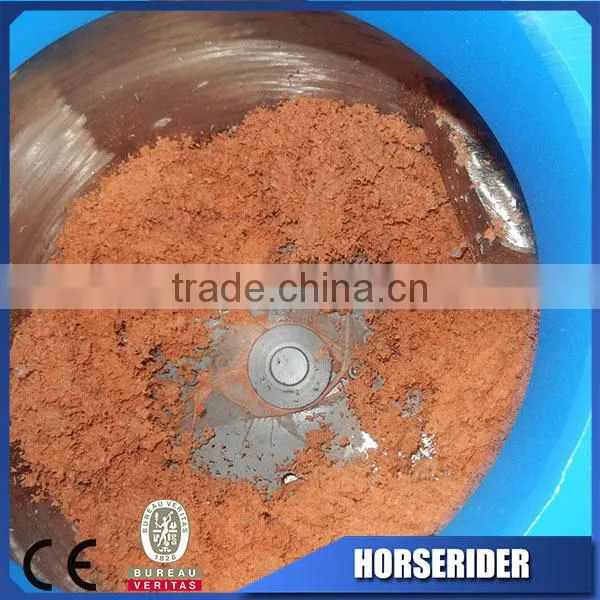

It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
The particles can be used for extrusion or injection molding machine directly, which can also be used in further pelletizing process for some advanced requirements.
We have new type agglomerator, with high capacity, low power consumption:

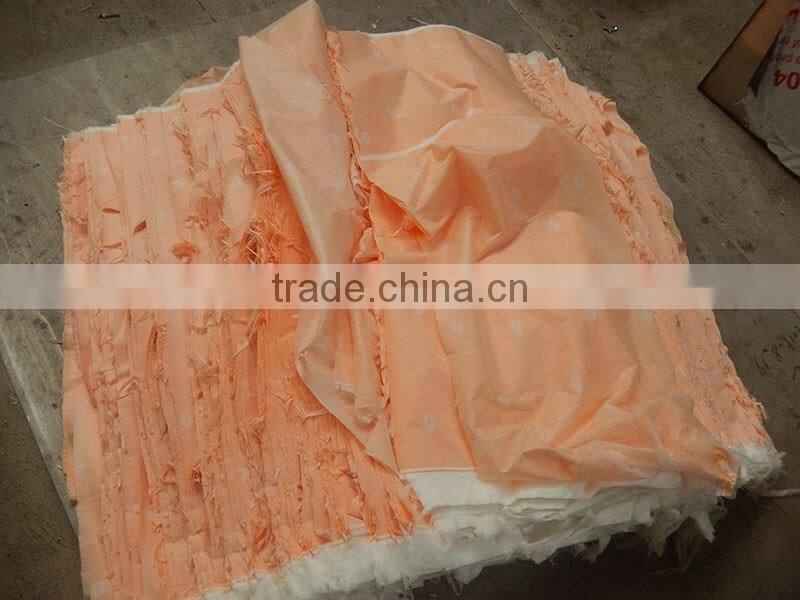

For example, PP woven bags:

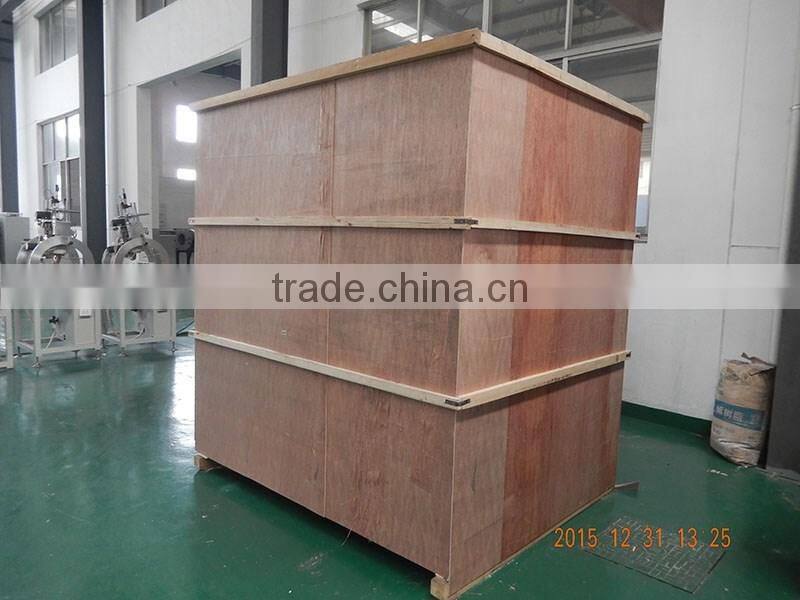

woden package:
Model | Specifications | |||||
| GSL-100 | GSL-200 | GSL-300 | GSL-500 | GSL-600 | GSL-800 |
Volume / L | 100 | 200 | 300 | 500 | 600 | 800 |
Effective volume / L | 75 | 150 | 225 | 375 | 450 | 600 |
Main blades speed (r/min) | 1050 | 1000 | 950 | 750 | 750 | 750 |
Capacity (kg/h) | 100 | 150 | 200 | 300 | 400 | 550 |
Power / kW | 37 | 55 | 75 | 90 | 90-110 | 132 |
Weight / kg | 1000 | 1200 | 1800 | 2500 | 2700 | 3000 |
Dimension / m | 1.7*0.75*1.5 | 1.7*0.85*1.5 | 2*0.85*1.6 | 2.3*0.95*1.7 | 2.3*1.1*1.75 | 2.5*1.25*1.8 |
Rotary blades | 2 | 2 | 2 | 4 | 4 | 4 |
Fixed blades | 6 | 6 | 8 | 8 | 8 | 8 |
Materials of machine | Stainless steel 304 | |||||
Tel / Whatsapp / wechat: +86-13862218472
Skype: 563589417 (niu_Jessica)

If you are interested in our machine,please feel free contact me.
I must give you a good offer!
Why choose us?
1.Low cost
- All the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality
- We choose our material very strict.
- All the material come to our factory must pass the quality test
- Substandard goods are returned to the supplier.
3. Engerneers available to serve oversea
4.Quick delivery
- The company provide just in time delivery with its streamlined supply chain.
5.Cost saving
- Se take strong attention to every detail in the manufacturing process.
- The quality control in our factory is very strict.
- All defective semi-manufactures must be treated again or reject.
- All the machine must be checked out ,then delivered to our customer.
- All about that pushing up the price,but get good quality machine.
- What we want to do is give our customer a good quality product with stable working and long lived.
