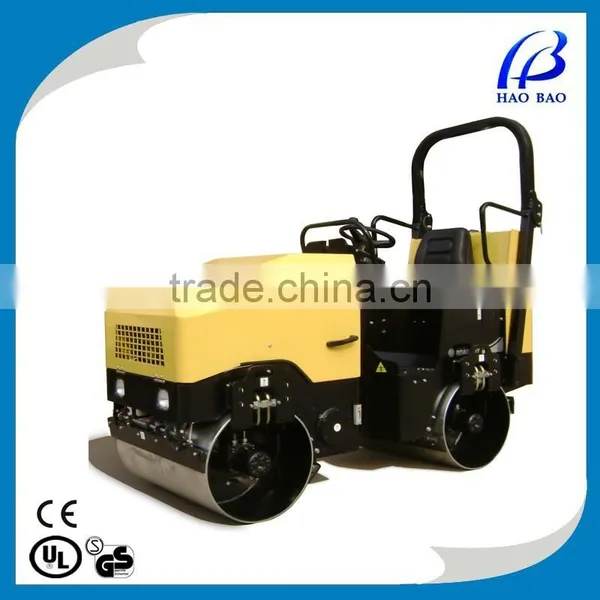

YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine

YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine thumbnail-1
YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine thumbnail-2
YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine thumbnail-3
YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine thumbnail-4
YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine thumbnail-5
YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine photo-1

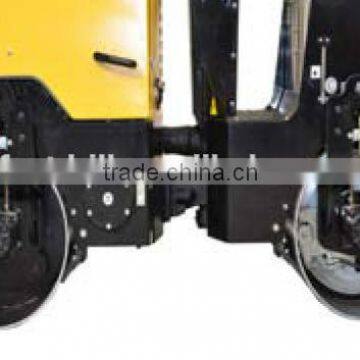

YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine photo-2

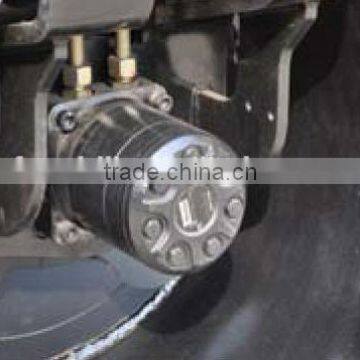

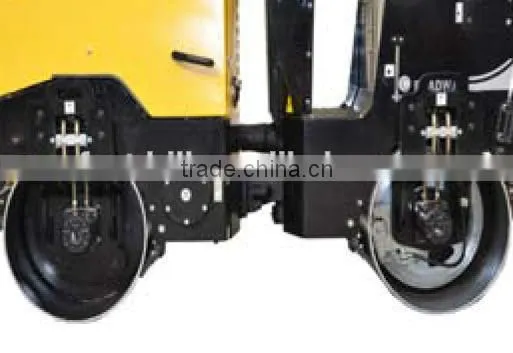

YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine photo-3

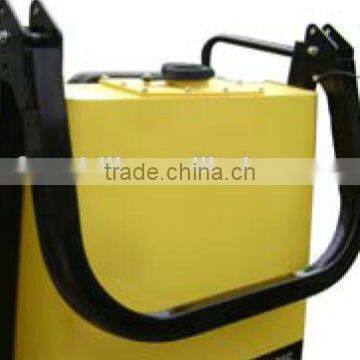

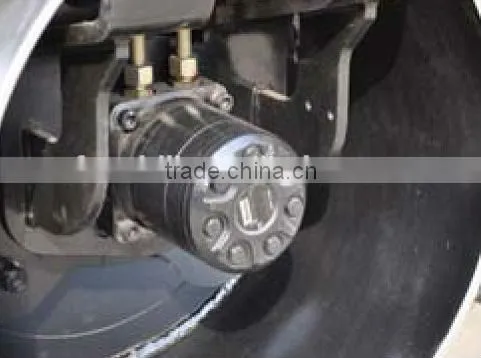

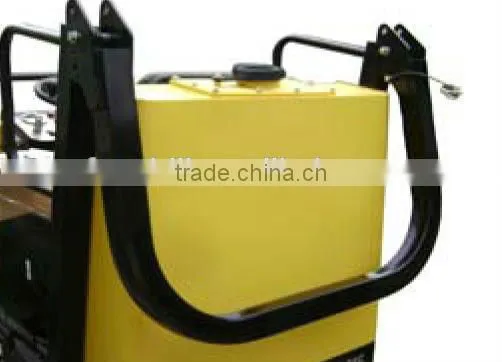

YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine photo-4

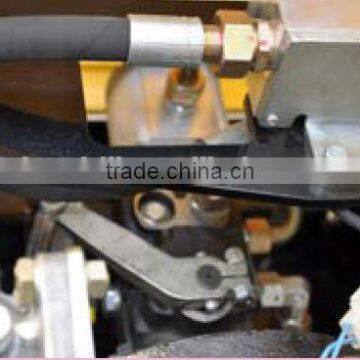

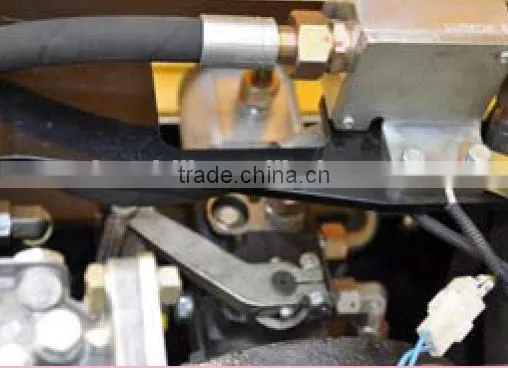

YL51C CE Certificate New Types Ride-On Hydraulic Double Drums Road Roller With Honda Engine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Double Drum Roller, CE Certificate new types Ride-On Hydraulic Double Drums Road Roller
Static Linear Pressure:
17KN
Contact Supplier Request Quote Chat Now
Hangzhou Hexun Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Double Drum Roller, CE Certificate new types Ride-On Hydraulic Double Drums Road Roller
Static Linear Pressure 17KN
Travel Speed 0~8KM/H
Grade Ability 30%
Place of Origin Zhejiang, China
Brand Name haobao
Model Number YL51/51C
Dimension(L*W*H) 2460*1140*1700MM
Weight 1480KG
Certification CE
After-sales Service Provided Overseas third-party support available

YL51/51C  CE  Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine1.  Famous brand engine, excellent performance, easy to start-up;

2.  Famous brand variable pump, fixed displacement motor, stepless speed, easy to change direction;

3.  Hydraulic diversion, efficient and convenient;

4.  The whole machine could be controlled by instrument panel;

5.  NSK bearing, excellent performance;



Type

RWYL51

RWYL51C

Run



Speed

0-8km/h

Turning radius

1900mm

Climbing capacity in theory

30%

Compaction



Static load forward/back

55/66N/cm

Nominal amplitude

0.5mm

Vibration frequency

65Hz

Exciting force

17kN

                            21kN

Water tank volume

150L

Working



Drive



Variable plunger pump , constant displacement hydraulic motor

Vibration

  Gear pump, Gear motor

Turning

   Redirector , hydraulic ram

Stop braking

  Hand draw and friction

Engine



Model

HONDA, GX630

Perkins 403D-11

Type

Gasoline engine, air cooled,4stroke,OHV,double cylinder

Diesel engine, water-cooled, 4stroke, three cylinder

Power

20hp/3600rpm

25hp/2800rpm

Fuel tank volume

30L

Lubricant L

1.8L

3.8L

Fuel consumption

313g/kWh

281g/kWh

Dimension



Width of steel wheel

900mm

Diameter of steel wheel

560mm

Tread

1340mm

1420mm

Total length

2270mm

2350mm

Total width

980mm

Total height

2250mm

Packing size

2460×1140×1700mm

Weight



Working weight

1480kg

1700kg

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engineYL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engineYL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

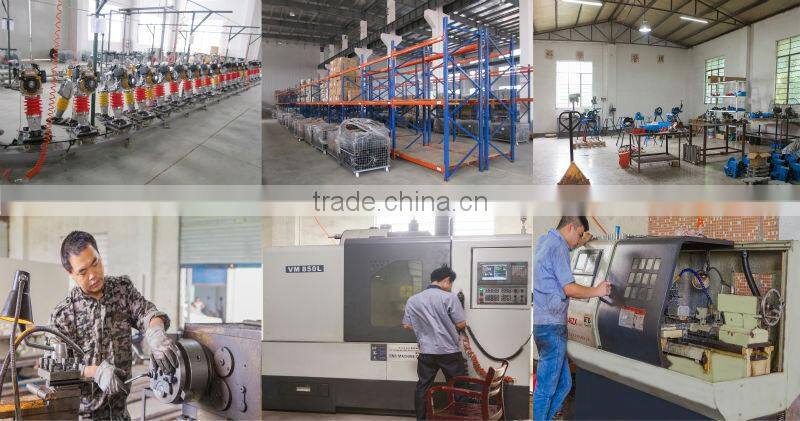

Our workshop:YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

 Our Office:

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine

YL51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine
