HXM100 80kg 5hp 760mm blade size gas power trowel parts

Specifications

HXM100 80kg 5hp 760mm blade size gas power trowel parts
2.3600 power equip wheel
3.36inch

   HXM100 80kg 5hp 760mm blade size  gas  power trowel parts







Model	HXM80	HXM90	HXM100
Work diameter(mm)	760	880	960
Engine power	3600	3600	3600
Running speed(rpm)	60-140	60-140	60-165
plate diameter(cm)	100	100	100
Blade size(cm)	15*35*16	15*35*16	15*35*16
Engine	HONDA/LIFAN	HONDA/LIFAN	HONDA
N.W/G.W(kg)	70/80	80/90	80/100
Package size(mm)	840*840*720	960*960*810	1960*990*990
Spare parts offered	wheel,cliver	wheel,cliver	wheel,cliver

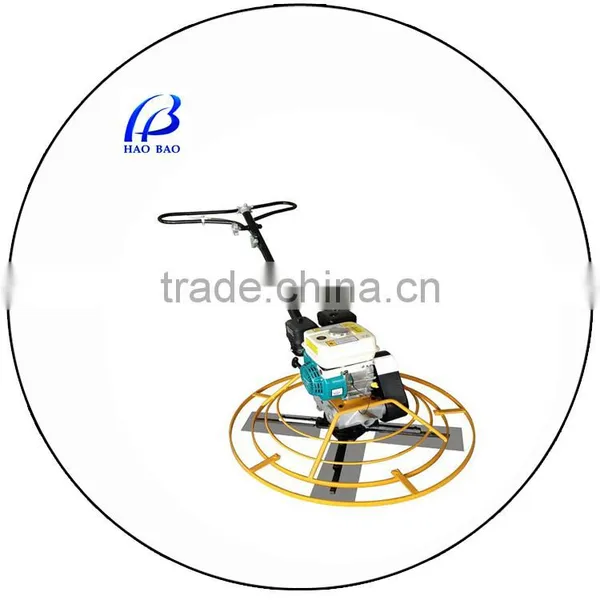

Gasoline concrete power trowel

1. Honda engine
2. 36inches plate
3. 80kg weight









1. HAO BAO is one of the biggest manufacturer of power trowel in China.



2. Feature precision engineered and fully sealed dust proof gear box

guarantee high capacity and longer service time.



3. Rugged four-in diameter gripper clutch enables smooth operation from

floating to finishing speeds.



4. Automatic stop system for work safety.



5. Smooth operating screw control knob make it easy to adjust the blade

pitch between 0~15 degree.



6. Standard lifting hook, allow trowel to be transported on the site with two

people by the lifting bar,easy changing blade or pan.



7. Standard throttle control.
