Hot Sale Complete Set Carbon Black Powder Processing Machinery

Specifications

1.Auto milling, pelletizing and packing
2.High capacity
3.All sealed without dust
4.200-2500 mesh powder
5.1-3mm granule

Automatic Carbon Black Processing System



This process comprises three parts, carbon balck milling process, pelletizing process and auto weighing and packing process. And all all the process is done automatically.



System introduction:

1.Carbon Black Milling system

This system is to refine the CB from Pyrolysis system, and the recycling SB can be used in rubberand plastic industires as reniforcement agent and color pigment

1) Recycling carbon black from Pyrolysis system
2) Refining into 300-2500 mesh
3) Used as reinforcement agent or color pigment

2.Carbon black Pelletizer System
This system is to make round pellets from carbon black fine powder, and the pellet carbon black can be used in rubber and plastic industries as reinforcement agent and color pigment.
1) Pelletizing milled carbon black from Pyrolysis system
2) into the granule with the size of 1-3mm
3) Used as reinforcement agent and color pigment





Specifications:



Milling machine



Item	Part Description	Rated Power(KW)	Quantity(Set)	Total Power(KW)
1	Steel Separator	0.55	1	0.55
2	Material Elevator	3	1	3
3	Material box and platform	0	1	0
4	Feed-in Screw conveyor	1.5	1	1.5
5	Super fine first milling machine	75	1	75
6	Super fine secondd milling machine	18.5	1	18.5
7	Vortex collector	1.5	1	1.5
8	Bag collector	3.3	1	3.3
9	Draft fan	37	1	37
10	Electrical control cabinet	0	1	0
11	Pipe line	0	1	0
12	Lubricating oil station	0.37	1	0.37
13	Transportation screw conveyor	6	2	12
14	Air compressor	7.5	1	7.5





Drawings

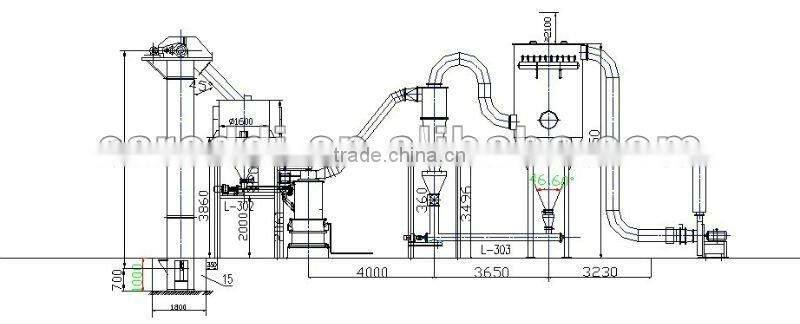

                                                                    Milling Plant Layout

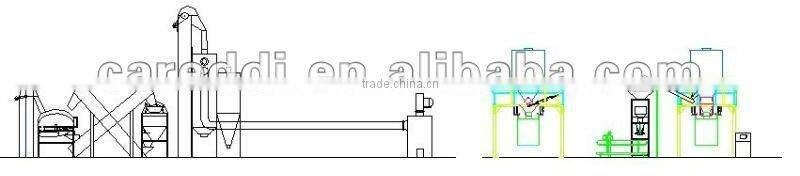

                                                                       Pelletizing Plant Layout

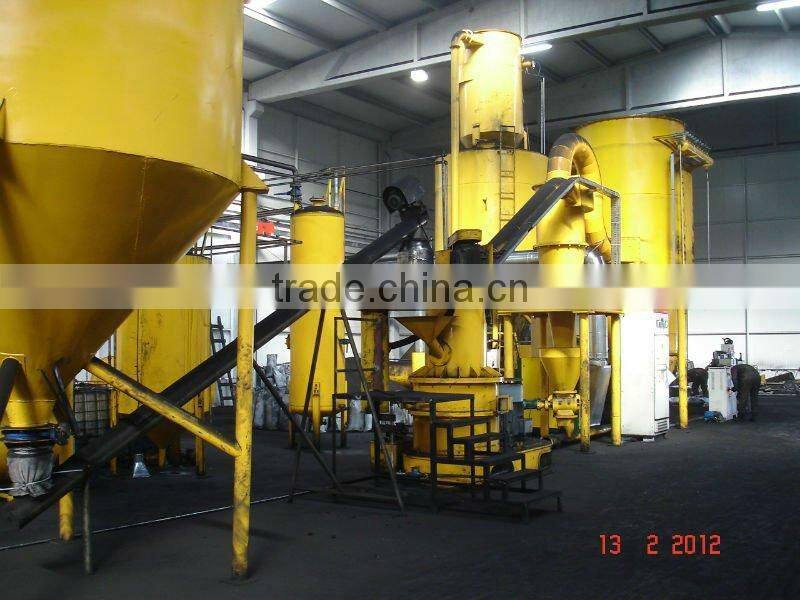

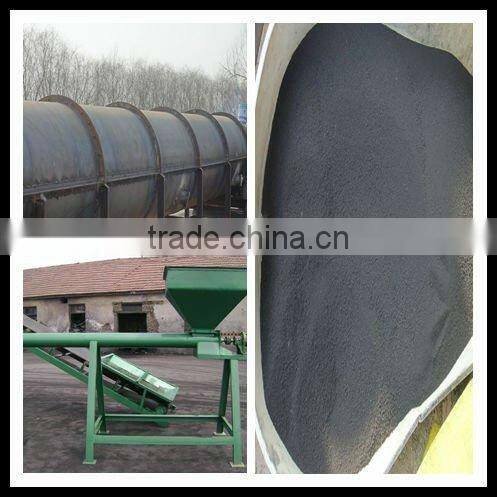

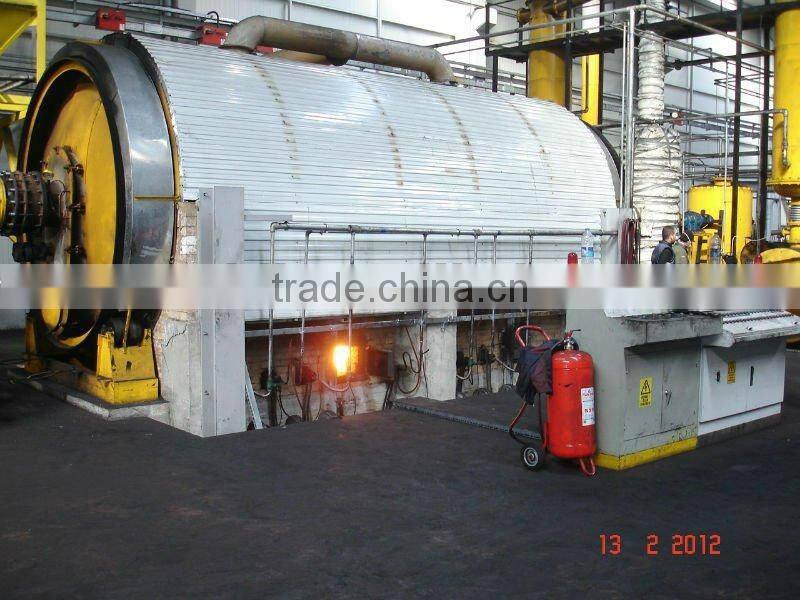

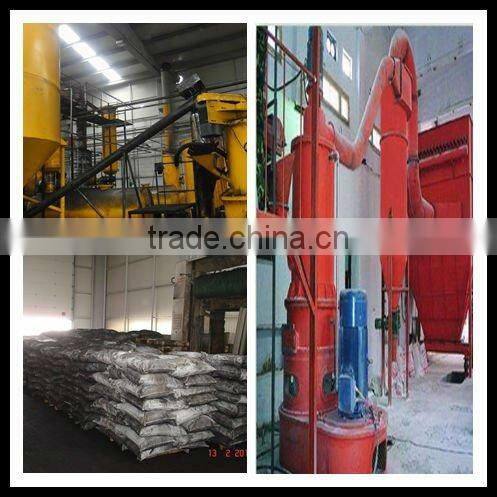

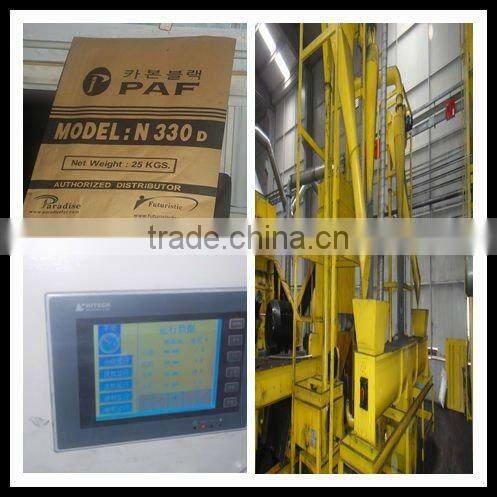

Pictures

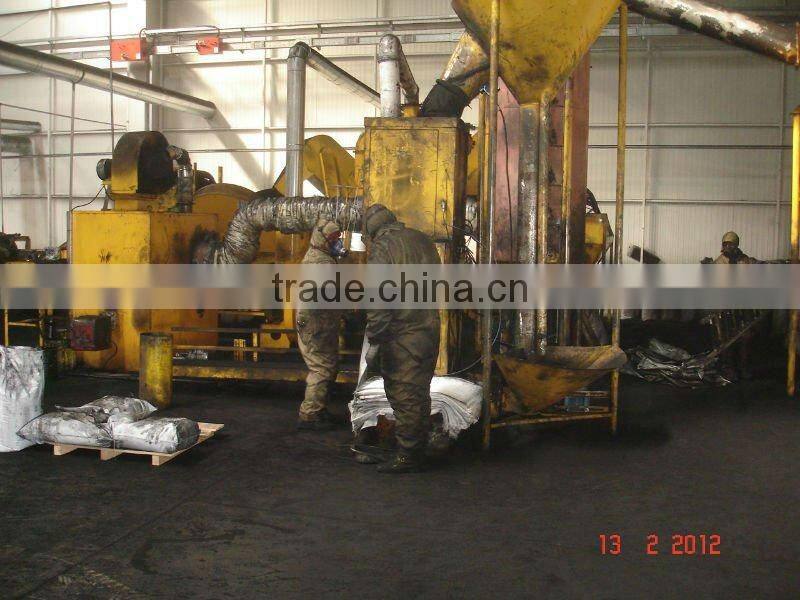

                                                                                Working processing









Professional service



1 Reply your enquiry in 24 working hours.



2. Experience staffs answer all your questions in fluent English.



3. Exclusive and unique solution can be provided to our customer by our well-trained  and professional staffs
