Limestone Rope Saw Machine

Jining Hengwang Mining Machinery Co., Ltd.
Limestone Rope Saw Machine thumbnail-1
Limestone Rope Saw Machine thumbnail-2
Limestone Rope Saw Machine thumbnail-3
Limestone Rope Saw Machine thumbnail-4
Limestone Rope Saw Machine thumbnail-5
Limestone Rope Saw Machine thumbnail-6
Limestone Rope Saw Machine photo-1
Limestone Rope Saw Machine photo-2
Limestone Rope Saw Machine photo-3
Limestone Rope Saw Machine photo-4
Limestone Rope Saw Machine photo-5
Limestone Rope Saw Machine photo-6
US$ 5,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, marble granite concrete
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Other, marble granite concrete
Production Capacity Month
Place of Origin Shandong, China
Brand Name HENGWANG
Model Number HW--R
Voltage 380V/50Hz
Power(W) 11KW
Dimension(L*W*H) 1300*2500*300mm
Weight 2000KG
Certification ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application             limestone rope saw Machine

The rope saw machine is mainly used for plastic waste material decomposition and stone mining the small area of cutting, especially some small mines to use large lock instead of one of the most advanced equipment, mining machinery, the ideal is also mine supporting disk saw cutting is a corner of the device in the first place.

SPECIFICATIONS FOR ROPE SAW MACHINE
Model
Motor power
driver saw the rope length
Line speed
Object slicing
HW-11G
11KW
5-30
0-40
Used for granite or marble block of plastic
HW-22G
22KW
5-40
0-40
HW-30G
30KW
20-70
0-40


Used for granite or marble mines
HW-37G
37KW
20-80
0-40
HW-45G
45KW
20-100
0-40
HW-55G
55KW
20-120
0-40
HW-75G
75KW
20-150
0-40

Main Features

1) It is applicable for quarrying all kinds of granite and marble.
2) The movement and rotation of the cutting head is driven by motor with position limitation protection.
3) The motor equipped with the inverter so as to control the moving speed variably to keep the diamond wire a constant tension control and working efficiently all the time.
4) Diamond wire saw machine protection functions including : wire broken, overload cutting, and other malfunctions.
5) The machine can be operated manually or automatically.
6) Easy-operating functions of electric turnover, electric horizontal movement and quick moving..
Certifications

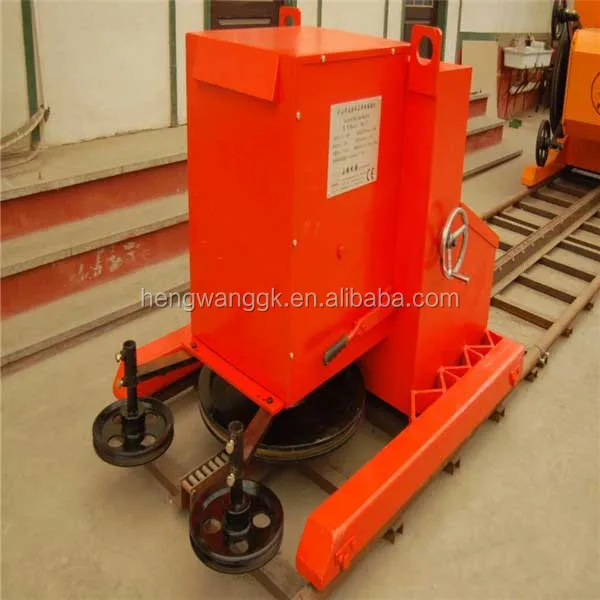

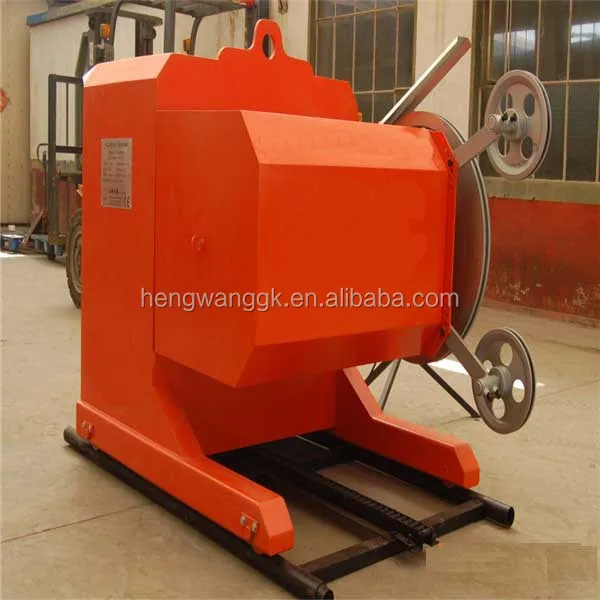

Detailed Images

Using the most advanced computer control system, linear velocity can be adjusted arbitrarily, is suitable for granite, marble and so on all sorts of small mining area of cutting and waste plastic material.


work station USES portable design, flexible operation, strong adaptability.



Mainly composed of the base guide rail, the Lord saw, and work station.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
