Product Application

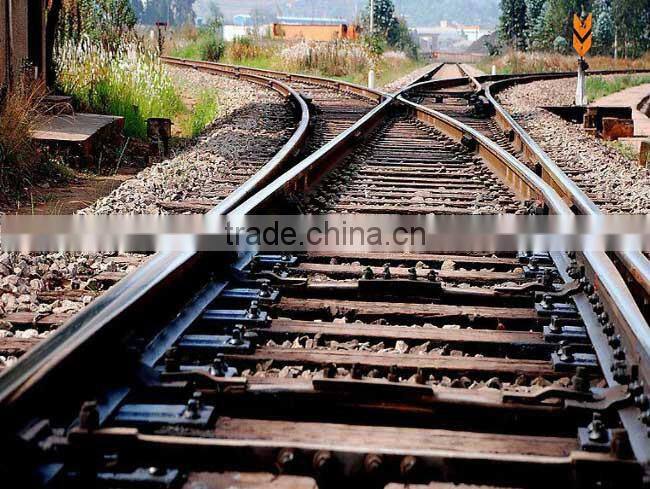

Gauge rod is in orbit with a bar connects two rails, in order to improve the lateral stability of the rail, improve the ability to keep track the tracks.Some lines have track circuit, the gauge of tie rod with insulation parts.
Gauge rod is an important accessories line, and if the gauge is lack, tie rod line gauge appeared deviation, train to the road, while the derailment, weight can cause train, consequence is unimaginable.
18 x 870 gauge rod 20 x 870 gauge rod 22 22 x 1050 x 880 gauge rod gauge 24 24 x 1250 x 1050 gauge rod rod gauge rod and 28 x 1850 x 1810 gauge rod gauge rod 32 32 x 1850 x 1810 gauge rod gauge rod 36 x 1850 gauge rod .

Main Features

Rod bar

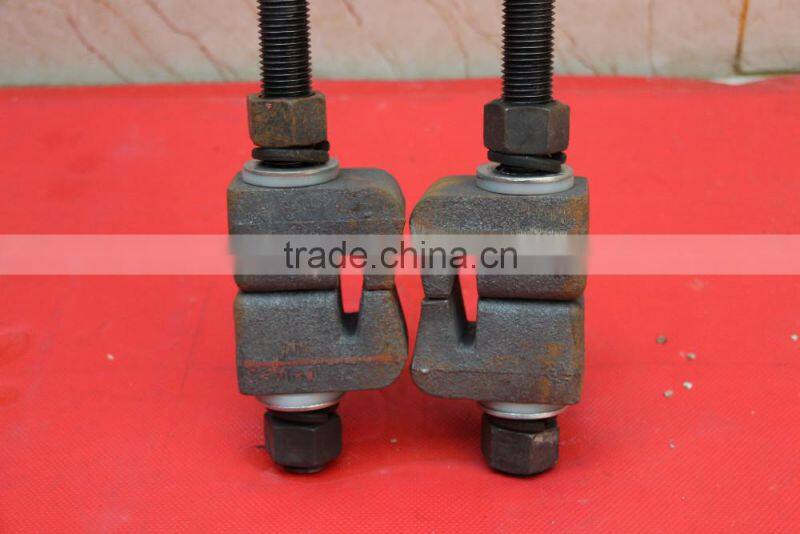

Anchor

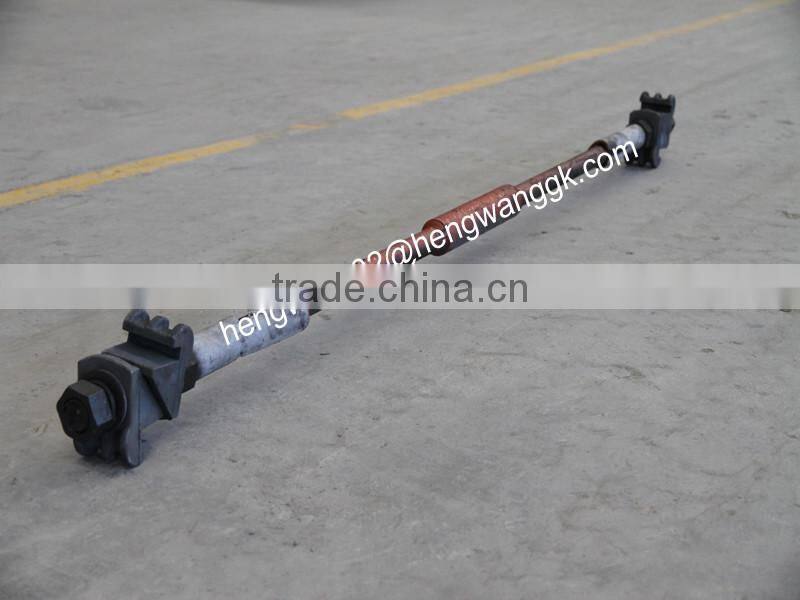

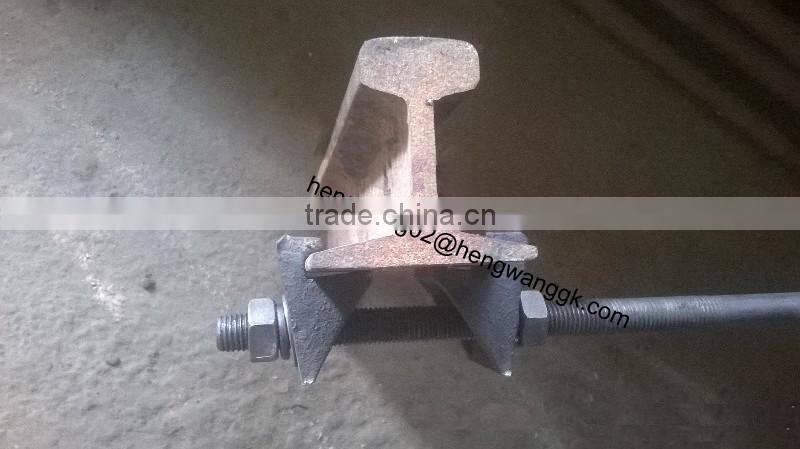

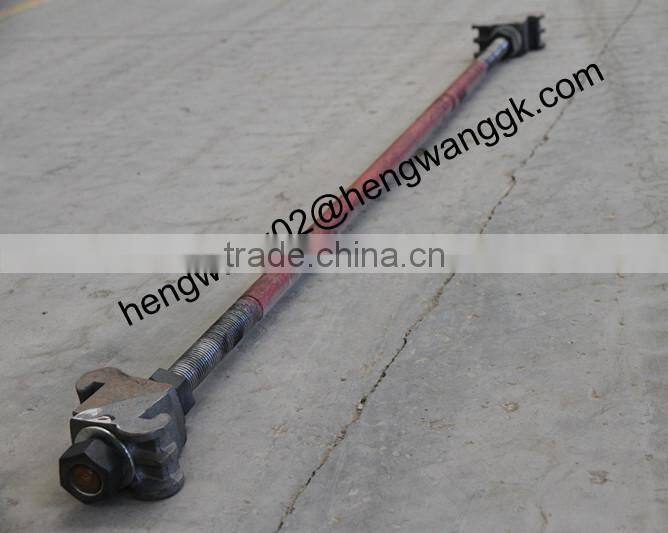

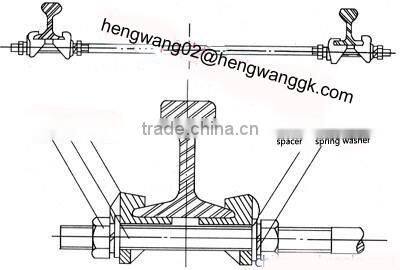

Rail gauge rod, also named gauge tie rod or gauge tie bar, is a member bar which is specially designed to joint two steel rails at the rail bottom to protect the rails from tilting and keep the rails in certain rail gauge.

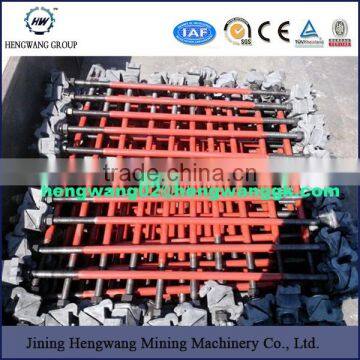

For a gauge tie rod, both ordinary and insulated, it includes 1pcs rod, 4pcs iron card, 4pcs nuts, 4pcs flat washer and 4pcs spring washer.

Depend on the tensile force of the rod to prevent the rail from spreading, and ensure traffic safety effectively. It is a portable and widely used in rail lines construction and maintenance.
