Cyclone dust collector Corn grinding mill with diesel engine
- 1000 Unit / Units per Month
- qingdao
- Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | HY |
Model Number: | 9FQ-320 | Type: | Mill Machine | Voltage: | 220V |
Power(W): | 3 KW | Dimension(L*W*H): | 350*550*850 MM | Weight: | 80 kg |
Certification: | ISO9001 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cyclone dust collector Corn grinding mill with diesel engine
Introduction of the corn grinding mill with diesel engine
The 9FQ series corn grinding mill with diesel engine is used to crush all kinds of grains to powder and the powder size is adjustable between 0.4-22 mm. The hammers inside the machine make it high efficiency and durable.
9FQ series corn grinding mill with diesel engine crush grains by highspeed rotating hammers.
After the materials coming into the crushing room, they will become power rapidly by continuous high speed blow of the hammer mill and crushing room. Then go out of the crushing room through different size sieve.
It can be used for all kinds of grains, straw, is universal crusher, which makes your work easier
Technical parameter of the corn grinding mill with diesel engine
Model | Motor power (kw) | weight (kg) | Outsize (mm) | Capacity (kg/h) |
9FQ-320 | 3 | 50 | 350*550*850 | 100-300 |
9FQ-360 | 4HP | 60 | 400*550*850 | 200-300 |
9FQ-360 | 5.5 | 110 | 650*600*1050 | 200-600 |
9FQ-400 | 7.5 | 160 | 700*650*1050 | 300-800 |
9FQ-420 | 11 | 180 | 780*700*1100 | 400-1000 |
9FQ-500 | 15 | 200 | 900*850*1250 | 500-1500 |
9FQ-600 | 22 | 500 | 1350*950*1550 | 1000-2000 |
9FQ-700 | 30 | 735 | 1450*1050*1650 | 1500-3000 |
9FQ-800 | 30 | 1220 | 1750*1350*1800 | 3000-5000 |
9FQ-900 | 37 | 1835 | 1950*1550*1950 | 4000-8000 |
9FQ-1000 | 55 | 2500 | 2250*1750*2050 | 5000-12000 |
Pictures of the corn grinding mill with diesel engine

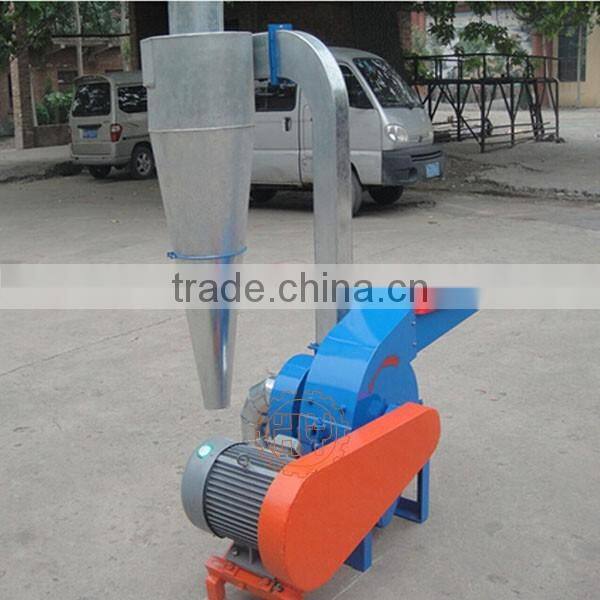

9FQ-320 corn grinding mill with diesel engine and cyclone to reduce the dust
'
large quantity corn grinding mill with diesel engine in warehouse
9FQ-400 corn grinding mill with diesel engine

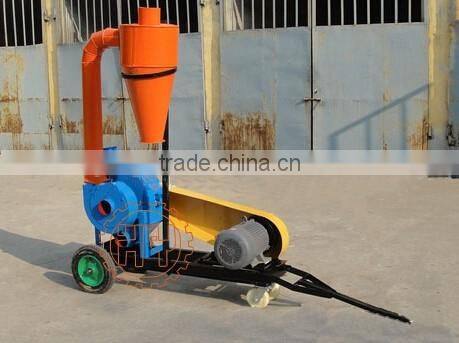

large capacity corn grinding mill with diesel engine
working site of corn grinding mill with diesel engine
corn grinding mill with diesel engine can crush grains to different size
We have been ISO9001 certified since 2005, while our products have also been approved by the third party inspectors such as CE ,SGS, BV and TUV, UL, COTECNA ,and our products have been exported to Europe, USA,Indonesia, Australia, Southeast Asia, South America ,North and West Africa etc..
The factory has more than 15 years experience at manufacturing and exporting machines.
With us, your money and your business safe !
We have been in this line for more than 15 years ,offering excellent before and after sale service. Quality is our culture.
- Our factory has excellent R&D, quality control, sales and after-sales teams. We'll be constantly learning and improving to supply you different kinds of top quality farming machines.Sincerely looking forward to working with you and mutual development to create better future!
- We offer free sample. The sample cost will be charged first and cut down in next large order.
- We support Trade Assurance Service. It protects your benefit and eliminate your worries about your money.
- 24 hours email and Telephone support . for large machines, we can also send professional engineer to direct the installation in your place.
pls contact me for more information with the answer :
1. what is your material for crusher?
2. what is the capacity you need ?
