Help CenterUnique Designed High Function Lime Rotary Kiln With Competitive Price
Related Products
-
Large Handling Capacity Rotary Kiln Incinerator With Low Power ConsumptionUS$ 1,000 - 9,000MOQ: 1 Set -
China Leading Manufacturer Direct Selling Lime Rotary Kiln With Best QualityUS$ 1,000 - 9,000MOQ: 1 Set
-
Hot Sale Premium Quality Cement Rotary Kiln With Competitive PriceUS$ 1 - 999.999MOQ: 1 Set
-
High Efficiency Low Power Consumption Rotary Kiln for Activated Carbon With Low PriceUS$ 1,000 - 9,000MOQ: 1 Set
-
Reliable Working Condition Rotary Kiln for Chromium Ore Processing With Good QualityUS$ 1,000 - 9,000MOQ: 1 Set
Brief Introduction of rotary kiln:
Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials. Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. metallurgy chemical kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry, calcimine of calotte and aluminum hydroxide in aluminum manufacturer, claiming of chrome sand ore and chrome powder ore in chemical plant.
Lime Rotary Kiln Features:
1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating,.
2. Catch wheel: including two kinds mechanical wheel and hydraulic pressure
3. Gears: single or double. Control the rotating speed by buncher, DE machine and frequency variable motor. Be reliable, energy-saving, and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple, replacement is convenient and won’t hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, and graphite block sealing and combination for above.
6. Kiln head hood: including stationary type and flexible type.
Technical parameters of rotary kiln:
Type | Model | Shell Dia(mm) | Shell Length (mm) | Gradient (%) | Output(t/h) | Rotate Speed(rpm) | Motor Power(Kw) | Weight( t ) |
Straight | YZ1225 | 1200 | 2500 |
| 3 |
| 22 | 34 |
YZ1828 | 1800 | 2800 |
| 4 |
| 30 | 59. 39 | |
YZ1636 | 1600 | 36000 | 4 | 1. 2~1. 9 | 0. 26~2. 61 | 22 | 51. 023 | |
YZ2245 | 2200 | 4500 | 3. 5 | 3. 2~5. 3 | 0. 23~2. 25 | 45 | 125. 462 | |
YZ2555 | 2500 | 55000 | 3 | 7. 3~9. 8 | 0. 79~2. 38 | 55 | 191. 203 | |
YZ2820 | 2800 | 20000 | 4 | 15~18 | 0. 8~1. 45 | 75 | 186. 373 | |
YZ3060 | 3000 | 60000 | 3. 5 | 16~20 | 0. 49~2. 41 | 90 | 272. 510 | |
YZ3560 | 3500 | 60000 | 3. 5 | 28~40 | 0. 65~2. 25 | 125 | 347. 872 | |
YZ4030 | 4000 | 30000 | 4 | 52~70 | 0. 38~3. 52 | 160 | 415. 103 | |
YZ4262 | 4200 | 62000 | 3. 5 | 80~105 | 0. 38~3. 52 | 315 | 541. 615 | |
Diameter | YB1626 | 1600/1400 | 26000 | 4 | 0. 7~1. 1 | 0. 41~3. 85 | 18. 5 | 38. 621 |
YB1939 | 1900/1600 | 39000 | 4 | 2. 2~2. 7 | 0. 27~2. 58 | 22 | 60. 841 | |
YB2545 | 2500/2200 | 45000 | 3. 5 | 4. 5~6. 2 | 0. 25~2. 18 | 45 |
102. | |
YB3560 | 3500/3000 | 60000 | 3. 5 | 23`32 | 0. 65~2. 28 | 125 | 310. |

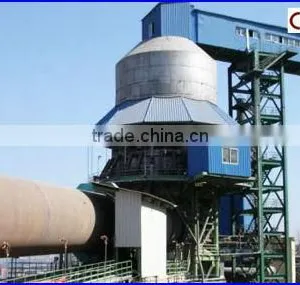

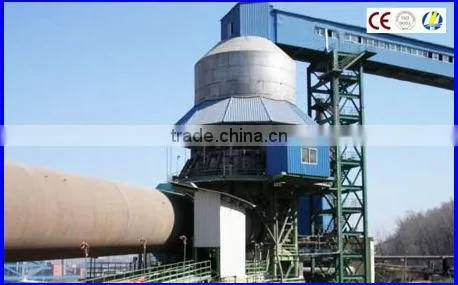

The pictures of rotary kiln:
