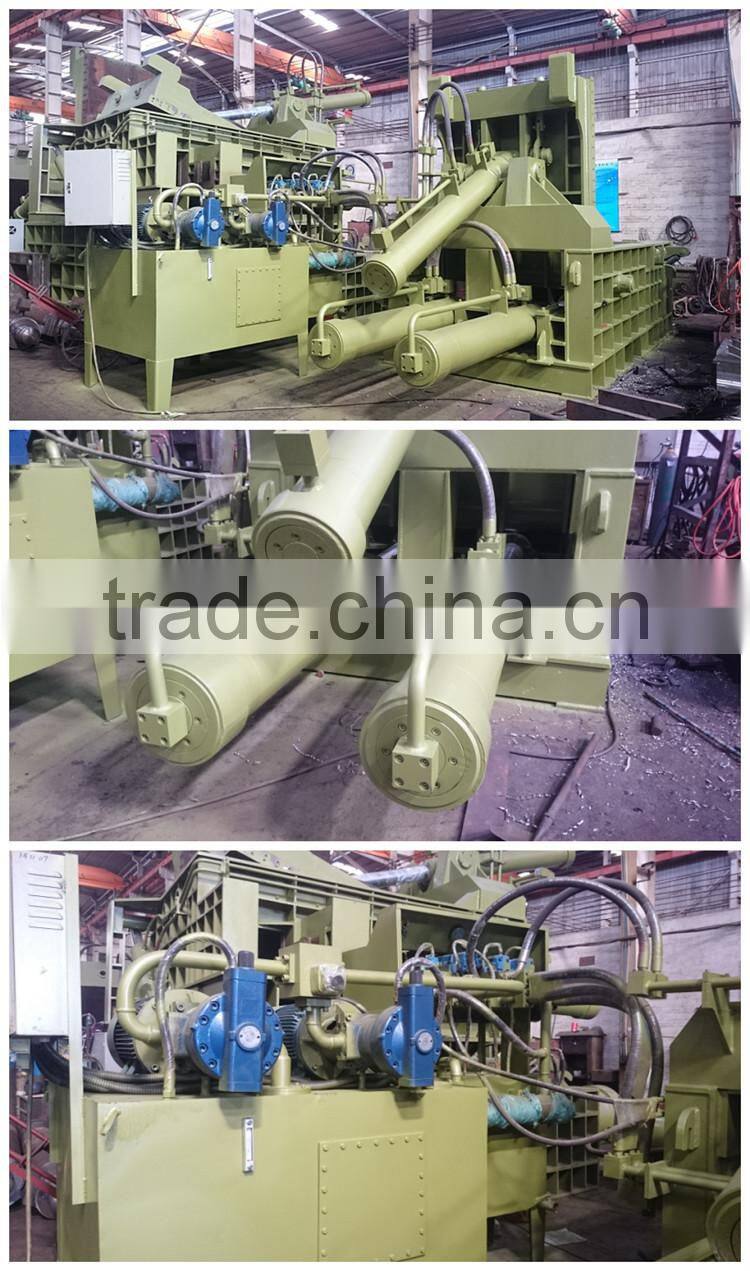

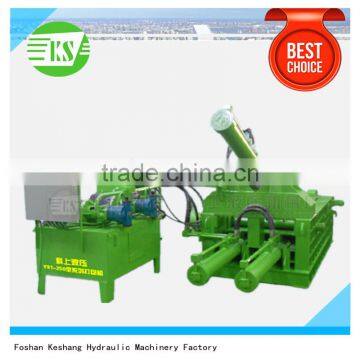

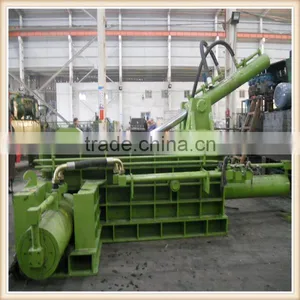

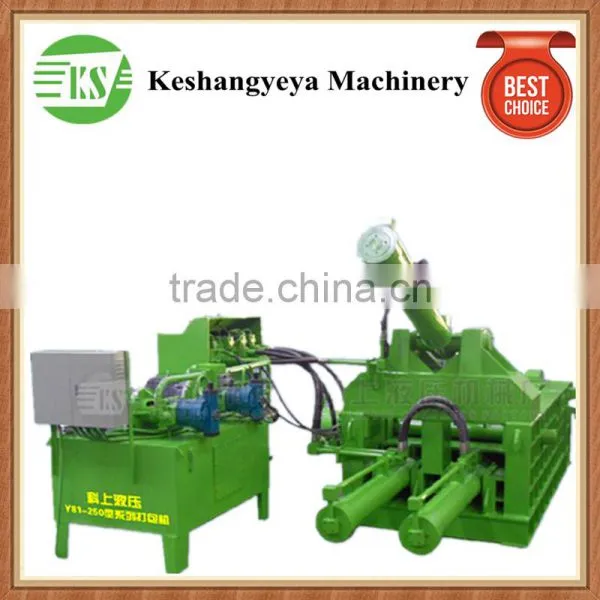

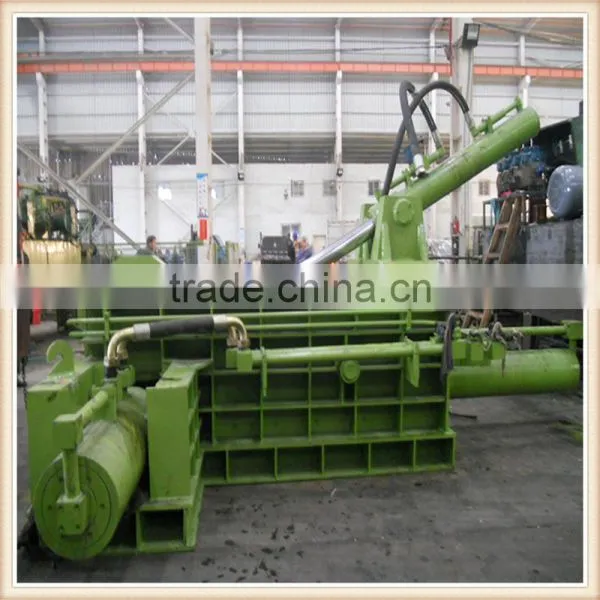

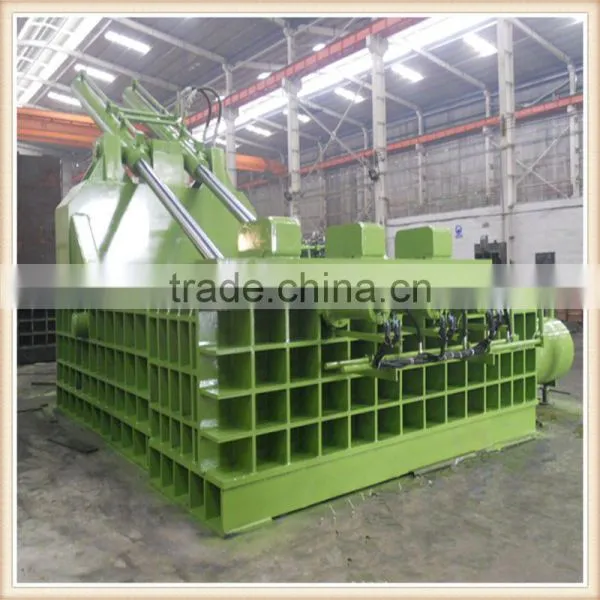

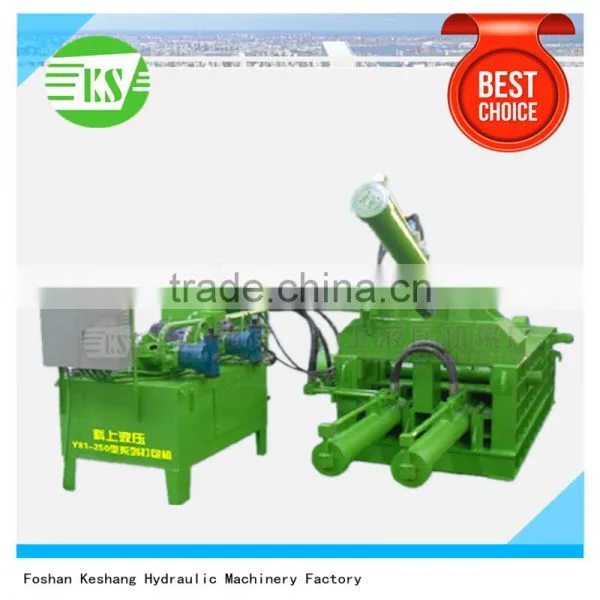

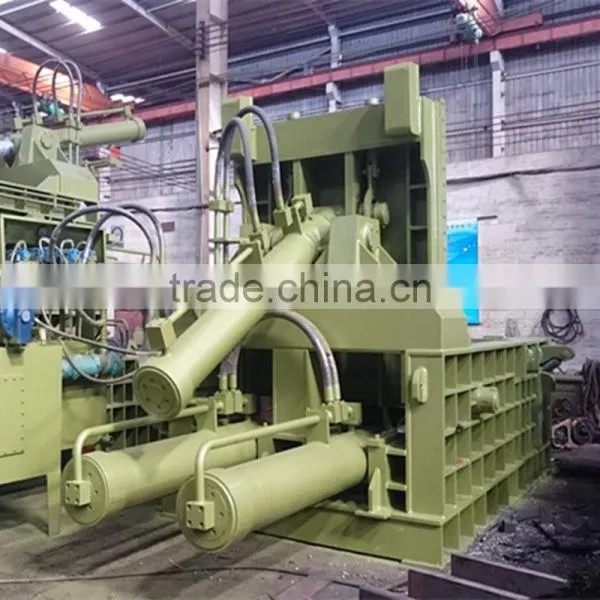

Y81-250 Baling press machine for scrap metal
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2) Uses the slow fast start form, When commutation is steady,Divergence,Reduced system impact
3)The structure is durable, no footing bolts needed in installation; diesel engine can be equipped or generator for power.
4) Baling force 10 grades from 130 to 1000 tons; productivity from 12 to 150 tons per shift(8 hours)
5)Easily operation, high effeciency, and less power comsumption
6) Bale-discharging: turn bag or push bag or using forklift to make the bale out.
Application:
Y81 series of hydraulic metal baler are mainly used in recycling companies, steel plants, ferrous & non-ferrous smelting industry to press the metal scraps(iron,steel, copper, aluminium, discarder sutomoblils) into acceptable fumace charges or shapes(cuboid, cylinder or octagon), convenient for storing, and can reduce the cost of transportation and smelting, increase speed of fumace charging.
Technical parameters:
| No. | Spare parts name | Unit | Item No. (Dates) | ||
| Y81-250 | |||||
| 1 | Nominal pressure | Main cylinder | KN | 2500 | 2500 |
| Side cylinder | KN | 1250X2 | 1250X2 | ||
| 2 | Max hydraulic pressure | MPA | 31.5 | 31.5 | |
| 3 | Chamber size | Length | MM | 2000 | 2000(1800) |
| Width | MM | 1600 | 1400(1400) | ||
| Height | MM | 950 | 900 | ||
| 4 | bale size | Length | MM | 800-1200 | 560-1200 |
| Width | MM | 500(450) | 500(450) | ||
| Height | MM | 500(450) | 500(450) | ||
| 5 | bale density | kg/m³ | ≥2200 | ≥2200 | |
| 6 | Single cyle time | S | about 90 | about 85 | |
| 7 | Motor power | KW | 22x2 | 22x2 | |
| 8 | Oil pump | YCY | 160x2 | 160x2 | |
| 9 | Outside dimension | Length | MM | 6000 | 6000 |
| Width | MM | 4000 | 4000 | ||
| Height | MM | 3000 | 3000 | ||
| 10 | Total Weight | T | about 23 | about 21 |
|
Raw Material (Steel Q345):
Packaging: host nude packing, parts can be in wooden cases, or as your requirement.
Shipping: usually 20-30 days after your deposit payment, more exactly time pls contact us.
Foshan Nanhai Keshang hydraulic machine factory established in 1989, is a professional manufacturer in designing and producing hydraulic equipments, continually absorbing domestic and overseas advantage technology to make our technology becomes more better. The quality of the products have been improved continuously, sells very good in our domestic market, and even selled them to Japan, Hongkong, Indonesia, Singapore.
1.Good pre-sale services and after-sale services.
2.Large company, strong strength. Consuming more than 1000 tons steels each month.
3.Choosing supplier strictly and only using high quality materials like steel Q345.
4.The same machine, the efficiency of our machine is 1/3 faster than others’.
5.Advanced equipment such as honing machine and milling machine.
6.Faster delivery time, obviously on the big machines.
7.TWO years’ warranty on machine.
Q:Payment terms:
We usually accept 30% deposit by TT as deposit for regular size machine, balance before shipment.
And 50% deposit by TT as deposit for customized machine, balance before shipment.
Q:Delivery time:
Vertical baler needs about 20 days after receiving deposit.
Horizontal balers under 315 tons need about 45 days after receiving deposit and above 400 tons need about 75 days after receiving deposit.
Q:Install:
For vertical baler machines, no need install by us. This kind of machine is exported by complete unit.
When you receive the machine, you only need to connect it with the power (usually 3 phase, 380V), and fill the hydraulic oil (HF#46or #68) as per user manual.
For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges of freight tickets, hotels and food etc are on your account.
Q:Voltage:
Usually it requires 380V, 3 phase,50-60Hz. We also can design different voltages according to your requirement, such as 220V,415V, 450V etc.
You just need to tell us your voltage value before manufacturing.
Q:How long it takes for a bale?
Usually, it takes 30-35s for one cycle, then the time needed will depend on manual feeding speed and baling speed.
Q: What’s the capacity of the baler?
A: we have many different models, which have different baling capacity. Also we can suggest the suitable model according to your capacity requirements.
We have a very good reputation in our domestic market, and it is them to introduce the new clients to us, including the clients from Japan, Sigapore, Indunisia, Hongkong, Taiwan, we are looking forward to cooperating with you in the near future.
