Home > Products > Mini Loader > Mini Loader

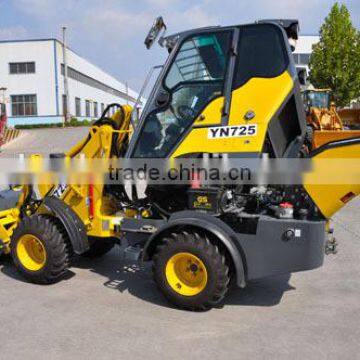

Mini Loader
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Brand Name | YINENG | |
| Model Number | YN725 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 3650*1110*2250 MM | Rated Load | 0.4 tons | |
| Certification | CE,ISO9001:2000 | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Perkins engine 403D-11,18.5kw
0.4cbm Standard bucket with teeth
Hydrostatic transmission with joystick control (mechanical)
Original American Sauer-Danfoss Walking and Steering System or Italian Walking and Steering System
Original Italian Working Valve
Adjustable steering wheel
Wheel Deceleration axle
27*8.5-15 Tires
Hydraulic quick change
Four-wheel Driving (4WD)
LED Working LampPerformance | Operating weight(kg) | 1490 |
Bucket capacity(m³) | 0.3-0.48 | |
Tipping load in shovel/pallet fork, vehicle straight (kg) | 850/540 | |
Tipping load in shovel/pallet fork, vehicle at 68° (kg) | 510/320 | |
Break-off force/biting force(daN) | 1340 | |
Ground clearance(mm) | 208 | |
Max travels peed(km/h) | 17 | |
Dimensions | Length * Width * High (mm) | 3615*930*2192 |
Max.dumping height(mm) | 2030 | |
Total working height(mm) | 3593 | |
Reach at max.dump(mm) | 501 | |
Wheel Base(mm) | 1345 | |
Track width(mm) | 714 | |
Engine | Engine | PERKINS 403D-11 |
Rated power(kw) | 18.5 | |
Rated speed(rpm) | 2800 | |
Displacement(cm3) | 1131 | |
Steering | Type | Full hydraulic centre-pivot steering |
Rotating angle | ±12° | |
Turn angle | ±54° | |
Turning radius | Inside turning radius(mm) | 865 |
Radius at outer edge(mm) | 1829 | |
Max turning radius (mm) | 2210 | |
Turning angle | ±54° | |
Hydrostatic | Working flow rate | 30 l/min |
Working pressure | 205bar | |
Driving flow rate | 84 l/min | |
Driving working pressure | 305bar | |
Tires | Model | 27*8.5-15 (Vacuum) |
