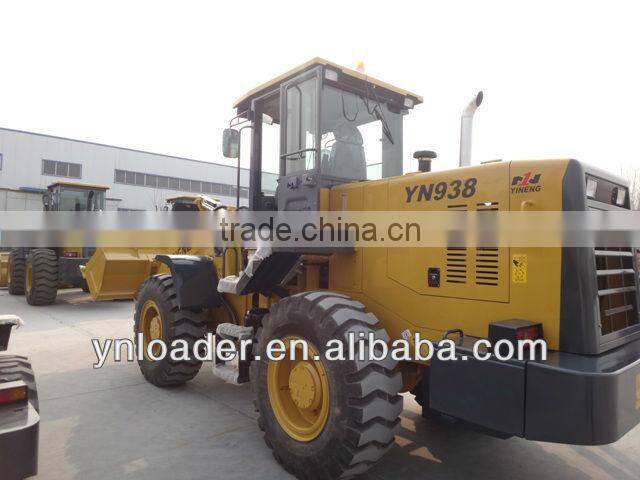

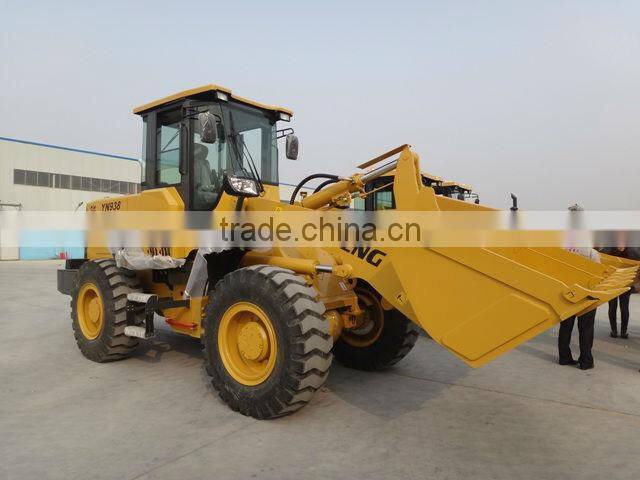

Front Wheel Loader 3t

Front Wheel Loader 3t thumbnail-1
Front Wheel Loader 3t photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YINENG
Model Number:
YN938
Contact Supplier Request Quote Chat Now
Shandong Yineng Heavy Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name YINENG
Model Number YN938
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6910*2510*3100MM
Rated Load 3000KG
Certification ISO;GOST;CE
Warranty 1 YEAR
After-sales Service Provided Overseas service center available

Specifications

Bucket 1.8m3; Rated load 3000kg; Dumping height 3000mm; Operating weight 10200kg;Dongfeng Cummins Engine;

Front Wheel loader 3tBucket 1.8m3; Rated load 3000kg; Dumping height 3000mm; Operating weight 10200kg;Dongfeng Cumins Engine;



1-      FEATURES AND OPTIONALS:


FEATURES:



*Dongfeng Cummins diesel engine, higher power and reliability.

*Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.

*Hangzhou Advance Gearbox Group BS428 powershift transmission, high efficiency and easy maintenance.

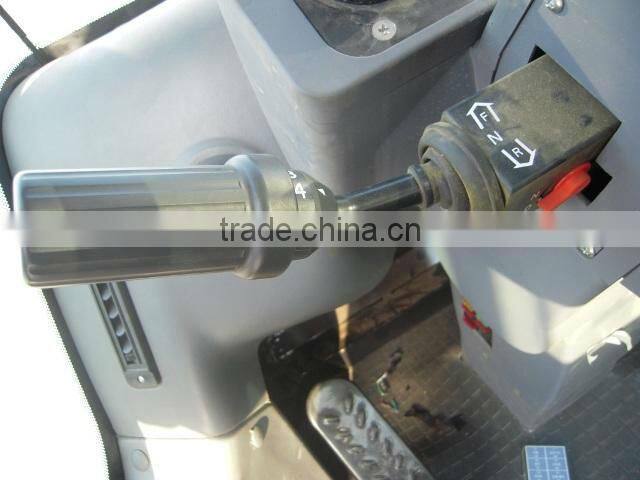

*Gear-shift controlled by flexible shaft makes operation more flexible and reliable.

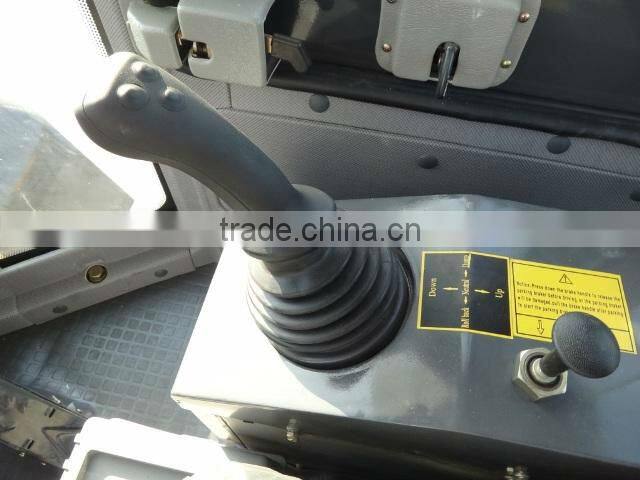

*Single lever joystick control system, comfortable and flexible operation.

*Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

* Air over hydraulic disks on four wheel brakes.

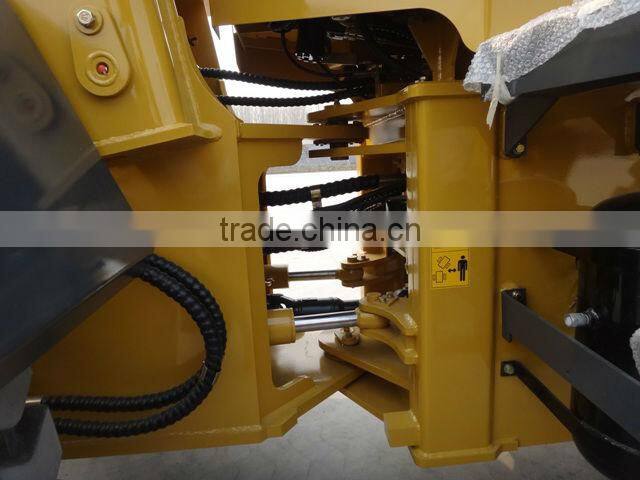

*Large space articulated frames make operation and traveling stable.

*Working device with automatically levelling ability at high position.

*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

*Integral, luxury instrument board.

*New, luxury cabin.



OPTIONALS:
    • Yuchai YC6108 engine.
• Weichai DEUTZ

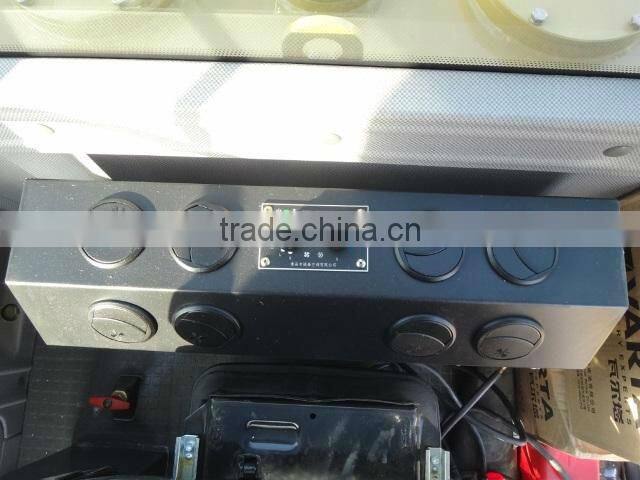

• Air Condition,
• Joystick/Pilot Control.
• Quick Change/ Quick Hitch.




*CE Approved.
*Obtained the certificate of ISO9001:2000;
*Manufacturing license number: TS2510025-2009.


2-      STANDARD SPECIFICATIONS:

Item

Specifications

Item

Specifications

Bucket capacity

1.8 m3

Min. turning radius

(outside of rear wheels)

5160mm

Rated load

3000 kg

Steering angle

36º

Dumping height

3000 mm

Min. ground clearance

375mm

Dumping distance

1100 mm

Wheel base

2700mm

Boom lifting time

5.5 S

Tread

1865mm

Total cycling time

10 S

Engine model

Cummins 6BTA5.9-C130

Max. speed

36 km/h

Rated power

97kW/

Max. breakout

force

120 kN

Tyre specifications

17.5-25

Max.drawing force

90 kN

Overall dimensions

6910*2510*3250mm

Max. Gradeability

30°

Operating weight

10200kg

 Front Wheel loader 3tFront Wheel loader 3tFront Wheel loader 3tFront Wheel loader 3tFront Wheel loader 3t
