Home > Products > 3.0 T/1.8 CBM Capacity > 3 ton grass/ timber/log grab front loader (Dumping height: 4400mm)

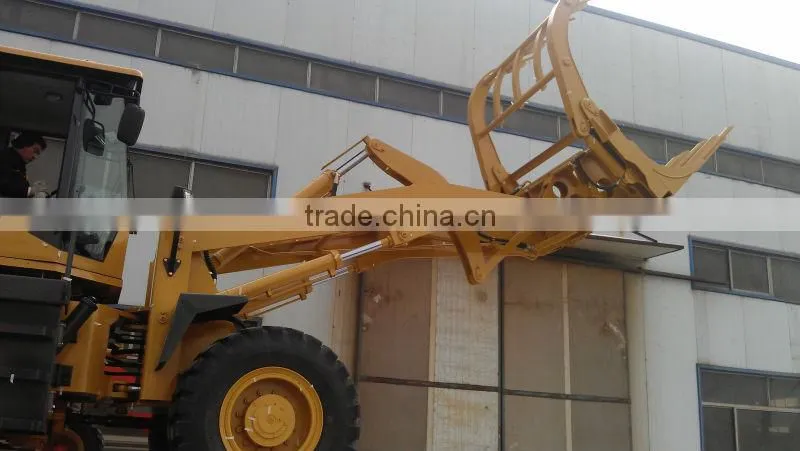

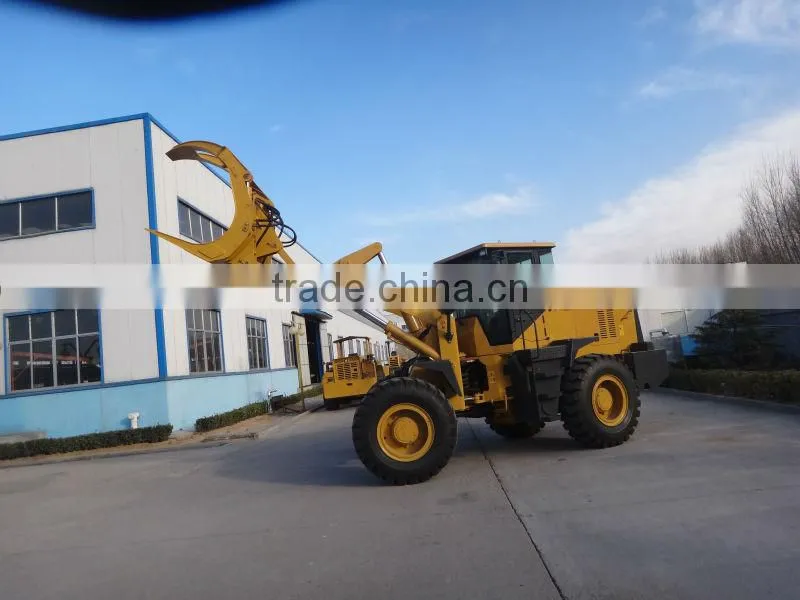

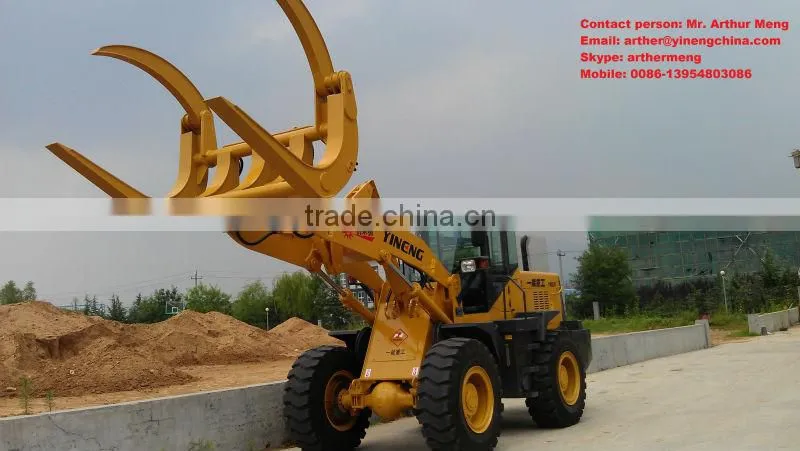

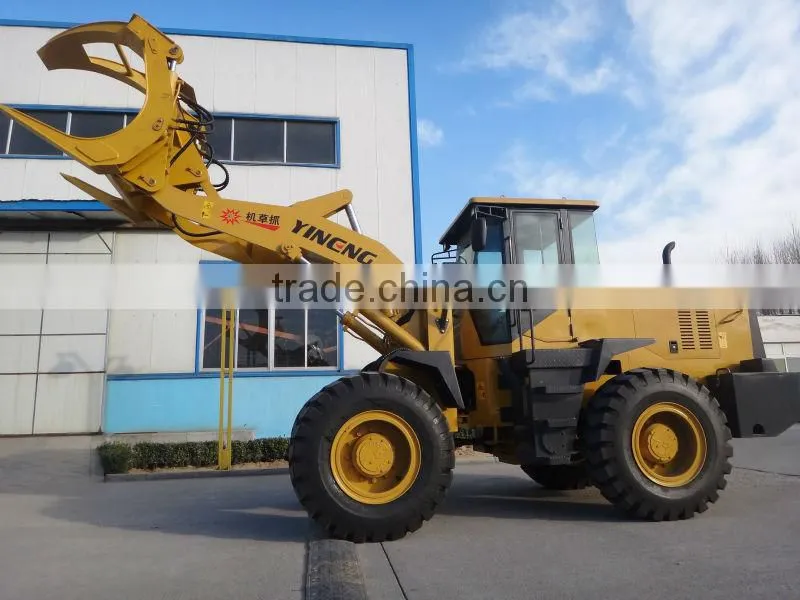

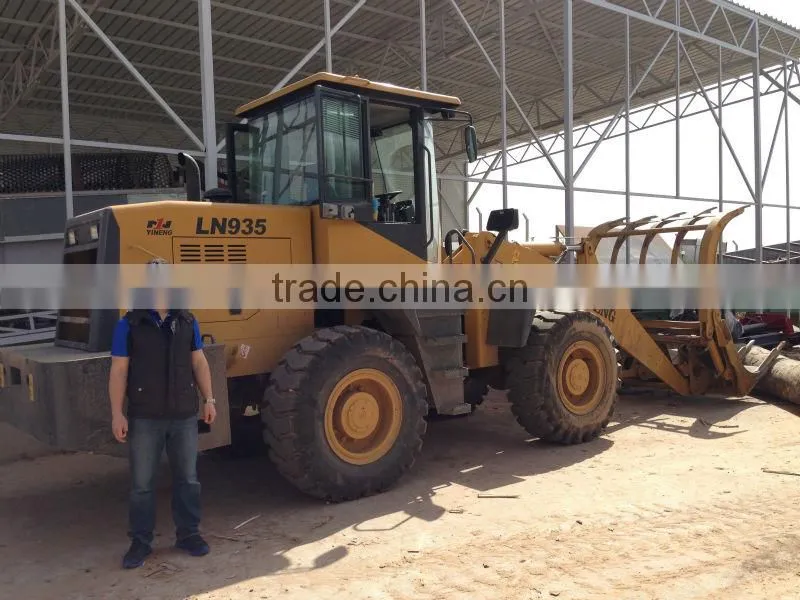

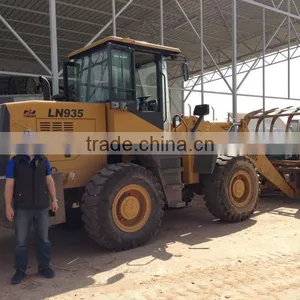

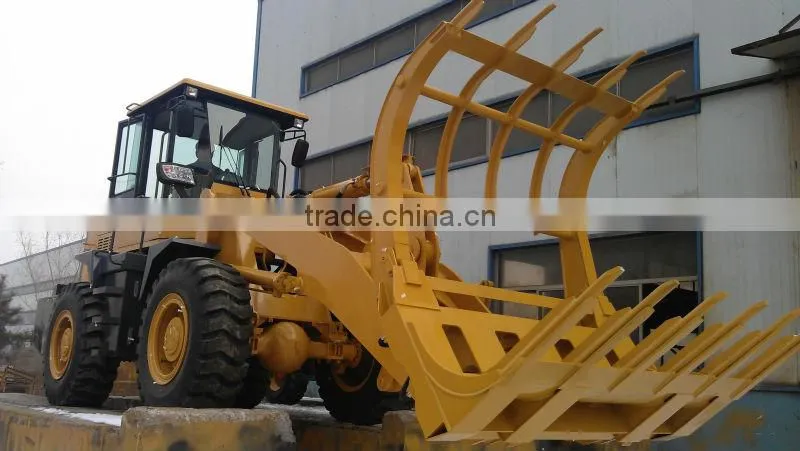

3 ton grass/ timber/log grab front loader (Dumping height: 4400mm)
- 150 Unit / Units per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Brand Name: | YINENG | Model Number: | LN935 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 7400x2510x3250mm | Rated Load: | 3000kg/3T | Certification: | ISO9001:2008/CE |
Warranty: | 12 months | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
3 ton grass/timber/log grab front loader: BS428 transmission + Cummins/Lovol euro III/Weichai Deutz engines + luxury cabin.WOOD GRASPER LOADER(YN935) | GRASS GRASPER LOADER( YN935) | ||
Item | Performance | Item | Performance |
Max opening dimension | 1500mm | Max opening dimension | 2830mm |
Min close diameter | 450mm | Min diameter of holding circle | 1450mm |
Gripper width | 1620mm | Gripping tool width | 2400mm |
Rated load capacity (kg) | 3000kg | Holding volume | 5 m³ |
Max.dump height | 4400mm | Rated load capacity(kg) | 3000kg |
Max.dump reach | 1360mm | Operating weight | 10300kg |
Operating weight | 10300kg | Max.dump height | 4400mm |
Wheel base | 2600 mm | Max.dump reach | 1558mm |
Tread | 1870 mm | Min.ground clearance | 410mm |
Overall dimentions (L*W*H) | 7470*2310*3000 mm | Wheel base | 2600mm |
Engine model | Deutz | Tread | 1870mm |
Rated power | 92 Kw | Static tilting load at full steering position | 58.8KN |
Transmission system | Hydrodynamical-mechanical type | Max breakout force | 120KN |
Highest speed | 36 km/h | Max pulling force | 90KN |
Driving axle | Double reduction type | Max grade ability | 30° |
Tyre | 17.5-25 | Lifting time | 5.5s |
Steering system | Fully hydraulic steering | Total cycle time(lifting, dumping, lowering) | 9.67s(full load) |
Service brake | Air over oil disc brake on 4 wheel | Overall dimensions (l×w×h)mm | 7470×2310×3000 |
|
| Fuel tank capacity | 125L |
