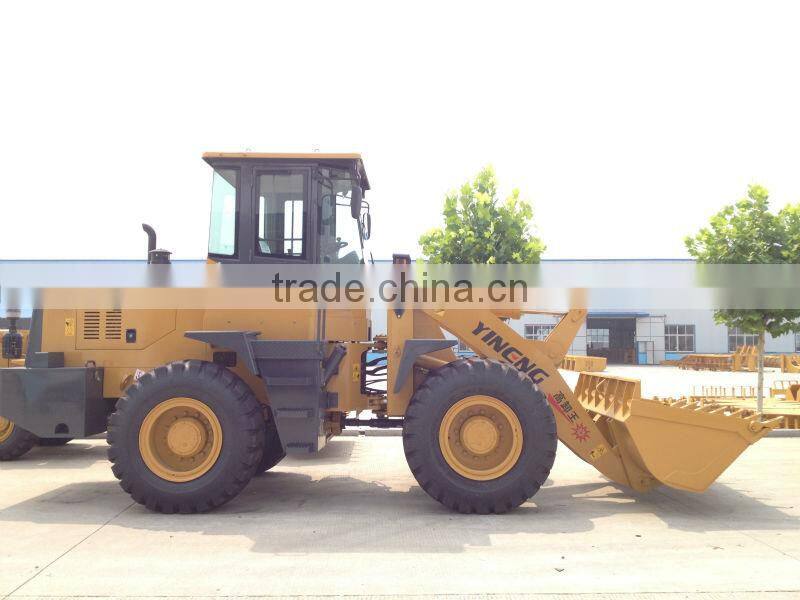

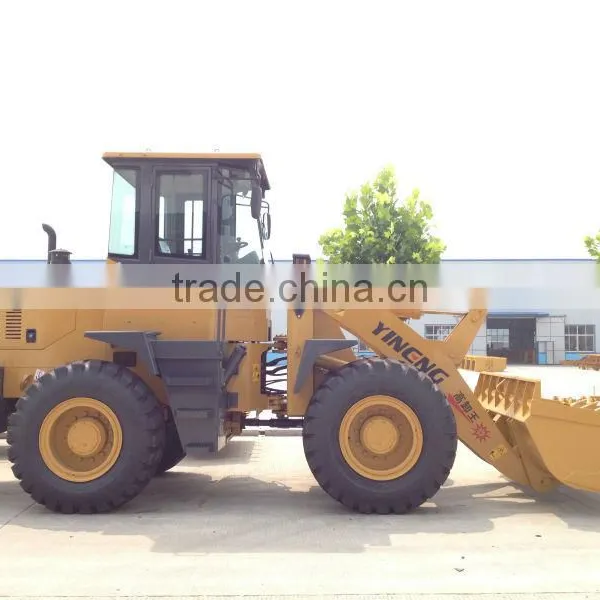

3 tons Wheel loader(1.7 M3, 92KW)
- 300 Unit / Units per Month
- Qingdao
- T/T L/C D/P D/A
Product Details
Condition: | New | Brand Name: | YINENG | Model Number: | YN935 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 6990*2420*3000MM | Rated Load: | 3000KG | Certification: | ISO;GOST;CE |
Warranty: | 1 YEAR | After-sales Service Provided: | Overseas service center available |
Product Description
3T Wheel loader YN935;Bucket 1.7m3; Rated load 3000kg; Dumping height 3000mm; Operating weight 10200kg;weichai deutz Engine;
1- FEATURES AND OPTIONALS:
FEATURES:
The most cost-effective
*Deutz high-power engine, large power storage.
*Torque-converter and gear box, the detached structure makes easy maintenance.
*Main articulated points take sealed, lubricated, double dust-proof layers, which owns good durability.
*The strengthened bucket attached with peripheral tooth is more wear-resisting and reliable.
*Doubly sealed hydraulic pipeline joints with 24° awl and O ring of international standard, avoided the oil leakage effectively;
*Air over hydraulic disks on four wheel brakes.
*Working device with automatically levelling ability at high position.

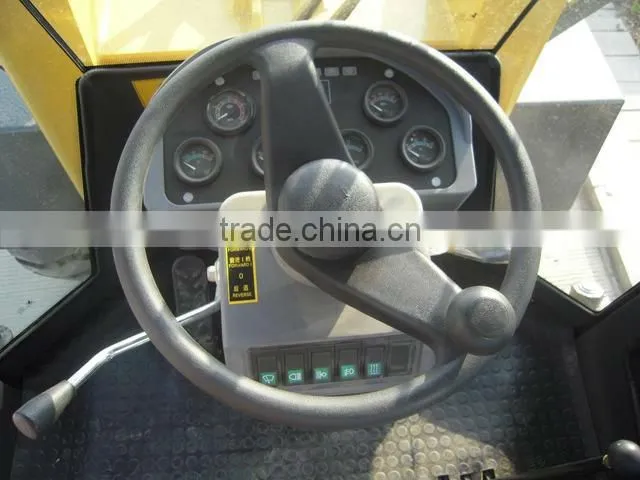

*Integral, luxury instrument board.
*New, luxury cabin.
OPTIONALS:
• Air Condition,
• Joystick
. • Quick Hitch (Fork)
• ROPS Cab.
*CE Approved.
*Obtained the certificate of ISO9001:2000;
*Manufacturing license number: TS2510025-2009.
2-STANDARD SPECIFICATIONS:
Items | Specifications | Items | Specifications |
Rated capacity | 1.7 m3 | Transmission system | Gear box separated from torque-converter |
Rated weight | 3000kg | Torque-converter model | YJ315x |
Operating weight | 9800kg | Type | Three-element, single stage |
Automatic leveling ability | Yes | Transmission box type | Full power shift, countershaft type |
Static tilting load | 68.8KN | Number of gear shift | 4 forward and 2 reverse |
Max breakout force | 120KN | Max travel speed | 36 km/h |
Max drawing force | 90KN | Front and rear axle |
|
Max grade ability | 30° | Main reducer type | Single stage reduction |
Max.dump height | 3050mm | Final reducer | Single stage planetary |
Max.dump reach | 1320mm | Tire |
|
Min.ground clearance | 410mm | Size | 17.5-25 |
Wheel base | 2600mm | Front wheel pressure | 343kpa |
Tread | 1800mm | Rear wheel pressure | 294kpa |
Height with bucket at full raise | 4870mm | Steering system | Fully hydraulic steering |
Lifting time | 5.5s(full load) | steering angle | 35°±1(each direction) |
Total cycle time | 9.67s(full load) | Min turning radius | 5160mm |
Overall dimensions (l×w×h) mm | 6990×2420×3000 | Hydraulic system |
|

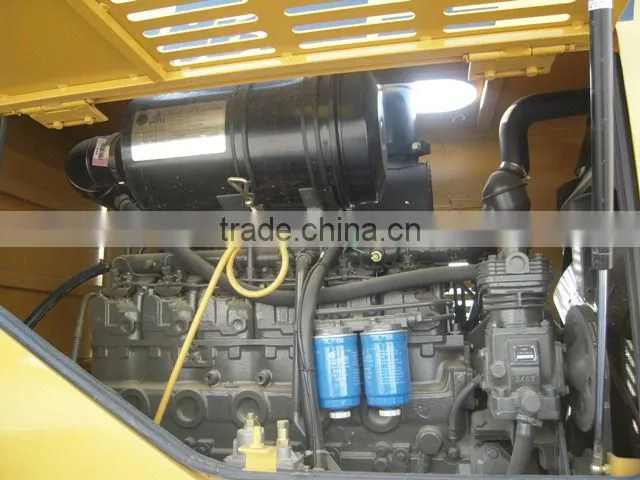

Engine | Deutz Engine | Distribution valve | DF25.2C |
Model | TD226B | Gear pump | GBGV2100 |
Type | In line, water cooled, four stroke, dir.inject | Brake system |
|
Rated power | 92KW | Service brake | Air assisted oil disc type four-wheel brake |
Rated speed | 2200r/min | Parking brake | Soft axis, cable control |
Min oil consumption | 235g/kw.h | Fuel tank capacity | 125L |
