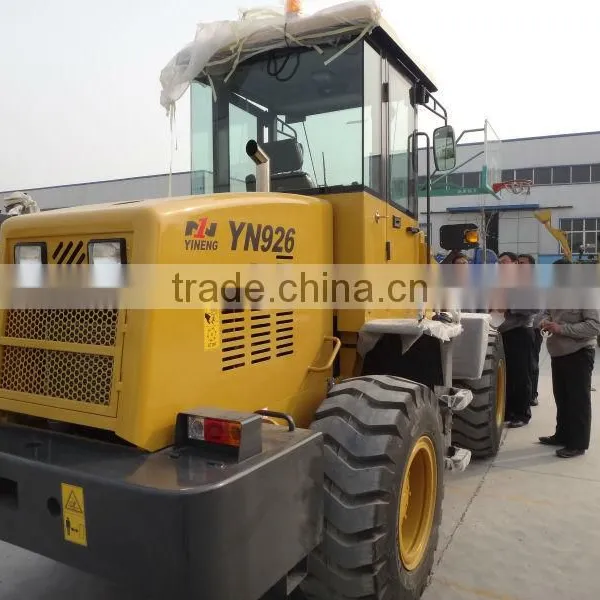

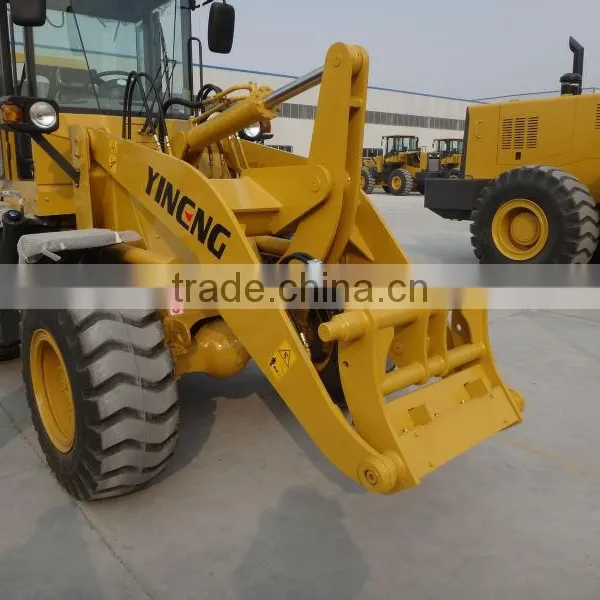

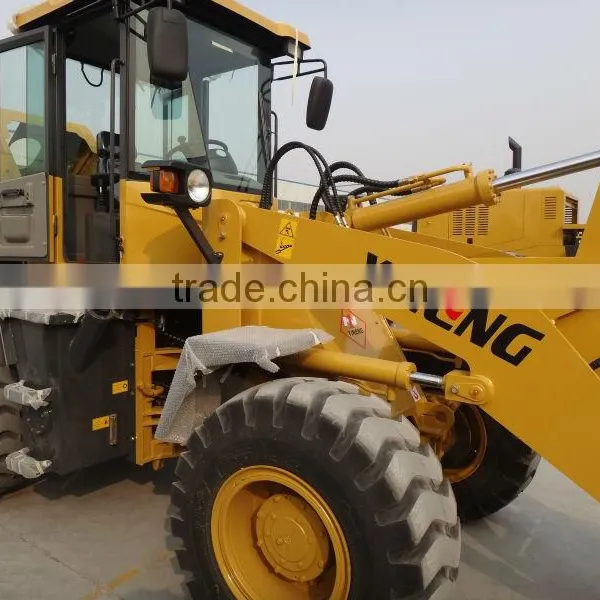

YN926 Front Loader

1.Adopt Dongfeng Cummins Diesel Engine.

2.Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.

3.Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy.

4.Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

5.Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage

6.Load sensing fully hydraulic steering system, easy and flexible operation

7.Air over hydraulic brake system; Caliper disc brakes

8.Working device with automatically leveling ability at high position

9.Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability

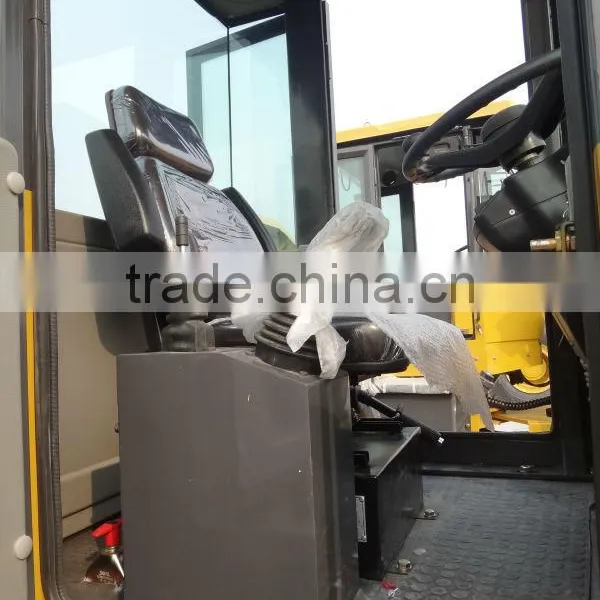

10.Integral, luxury instrument board.

11.New, luxury cabin

Item

Specification

Item

Specification

Bucket capacity

1.1m³

Rated power

60kW

Rated load

2000kg

Tyre

16/70-20

Dumping height

2750mm

Overall dimensions

5880*2060*2750

Max. breakout force

55 KN

Operating weight

6000kg

Max. drawing force

45 KN
