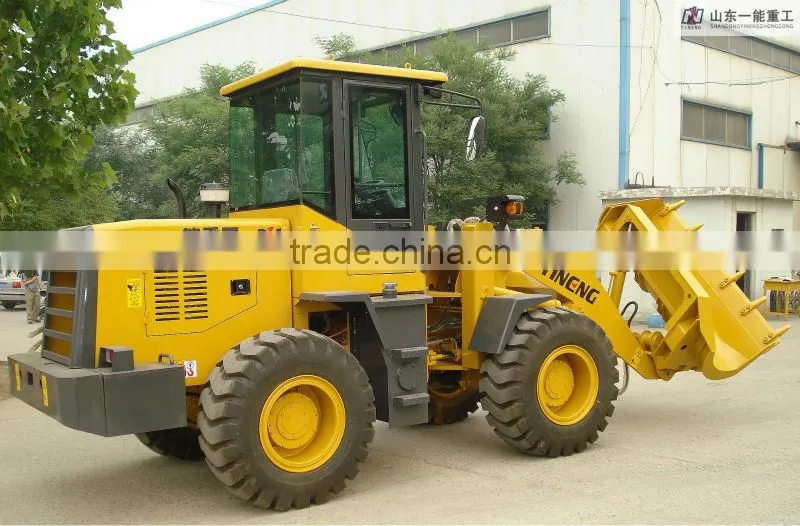

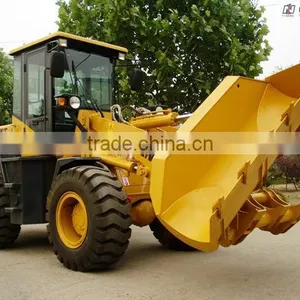

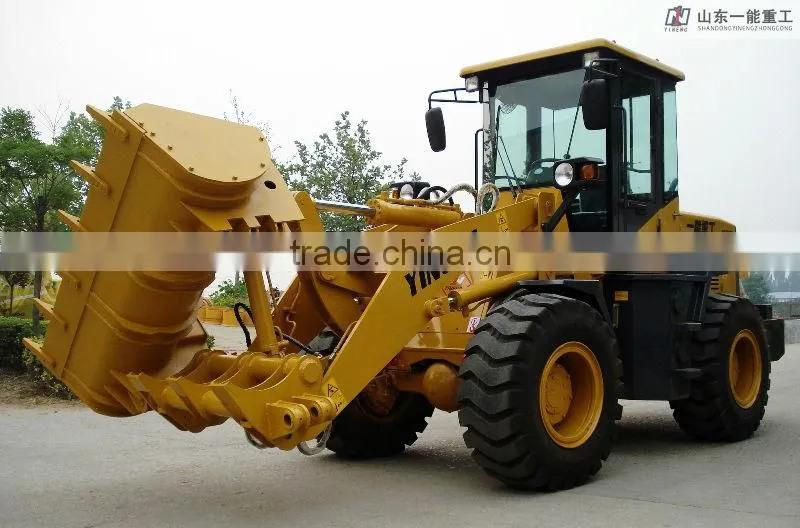

YN920 Wheel Loader(side-dump Bucket)

Name: YN920 Wheel Loader(side-dump Bucket)
Brand: yinenYINENG
SKU: 141006480
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

yinenYINENG

Model Number:

YN920

Shandong Yineng Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name yinenYINENG

Model Number YN920

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5520*1950*2670MM

Rated Load 1800kg

Certification GOST,CE,ISO

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Bucket capacity0.9m3, Rated load 1800kg, Dumping height2750mm, Rated Power 50kw 1- FEATURES:

1-    FEATURES:

* Adopt Jiangsu Sida four cylinder diesel engine.

*Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.

* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

*Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

*Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage obviously;

* Load sensing fully hydraulic steering system makes operation easy.

*Air over hydraulic brake system; Caliper disc brakes.

*Working device with automatically leveling ability at high position.

*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

* Integral, luxury instrument board.

* New, luxury cabin.

2- SPECIFICATIONS:

Item	Specifications	Item	Specifications
Bucket capacity	0.9 m³	Min. turning radius (outside of rear wheel)	4200mm
Rated load	1800 kg	Steering angle	35º (L/R)
Dumping height	2750 mm	Min. ground clearance	330mm
Dumping reach	910 mm	Wheel base	2150mm
Boom lifting time	4.5 S	Tread	1480mm
Total cycling time	9 S	Engine model	SD4012G
Max. speed	25km/h	Rated power	50kW/2400rpm
Max. breakout force	46 kN	Tyre	16/70-20
Max.drawing force	35 kN	Overall dimensions	552019502670mm
Max. Gradeability	28°	Operating weight	5300kg
