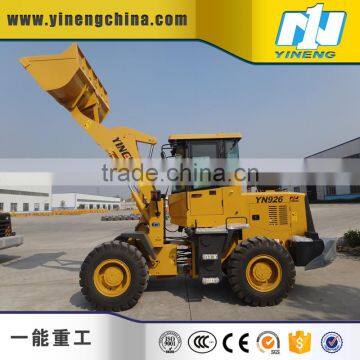

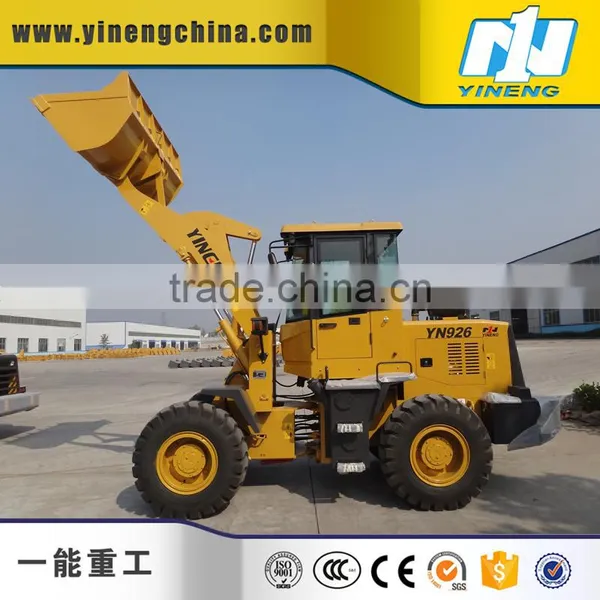

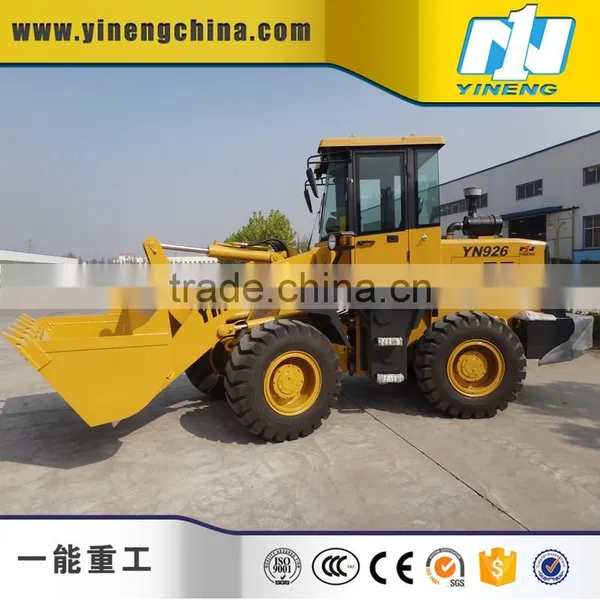

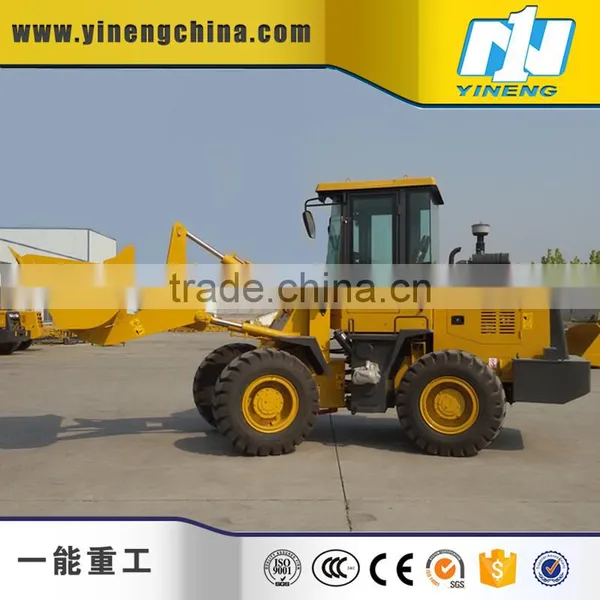

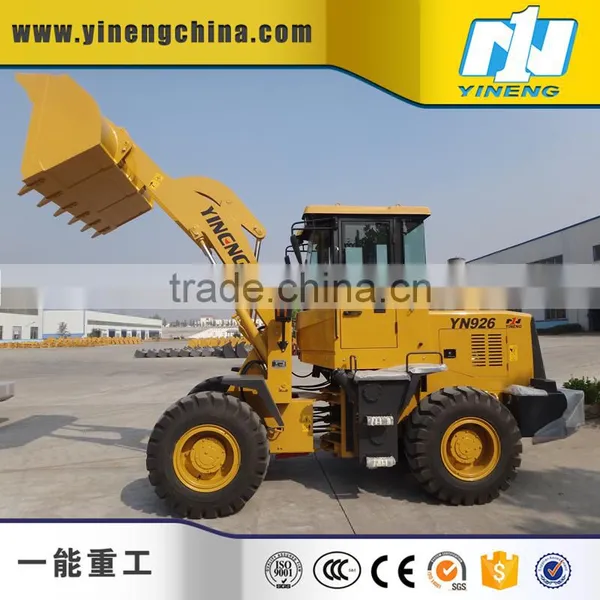

YN926 - YINENG Wheel Loader

YN926 - YINENG Wheel Loader thumbnail-1
YN926 - YINENG Wheel Loader thumbnail-2
YN926 - YINENG Wheel Loader thumbnail-3
YN926 - YINENG Wheel Loader thumbnail-4
YN926 - YINENG Wheel Loader photo-1
YN926 - YINENG Wheel Loader photo-2
YN926 - YINENG Wheel Loader photo-3
YN926 - YINENG Wheel Loader photo-4
US$ 15,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YINENG
Model Number:
YN926
Contact Supplier Request Quote Chat Now
Shandong Yineng Heavy Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name YINENG
Model Number YN926
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5880*2060*2820mm
Rated Load 2000kg
Certification ISO9001:2008, CE certification
Warranty 6 Months
After-sales Service Provided Overseas third-party support available
Product Description

Features:

* YTO diesel engine is adopted, with strong power.
* Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.
* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
* Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
* Load sensing fully hydraulic steering system makes operation easy.
* Air over hydraulic brake system; Caliper disc brakes.
* Working device with automatically leveling ability at high position.
*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin.

Item
Specifications
Item
Specifications
Bucket capacity
1.1 m3
Min. turning radius (outside of rear wheels)
4600mm
Rated load
2000 kg
Steering angle
Each direction 35º
Dumping height
2750 mm
Min. ground clearance
320mm
Dumping reach
920 mm
Wheel base
2350mm
Boom lifting time
5 S
Tread
1500mm
Total cycling time
9 S
Engine model
YTO LR4B3-24
Max. speed
25km/h
Rated power
60kW/2400rpm
Max. breakout Force
55 kN
Tyre
16/70-20
Max.drawing force
45 kN
Overall dimensions
5880*2060*2820mm
Max. Gradeability
30°
Operating weight
6000kg

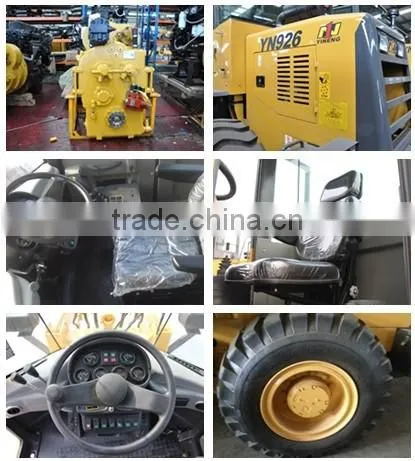

Detailed Images

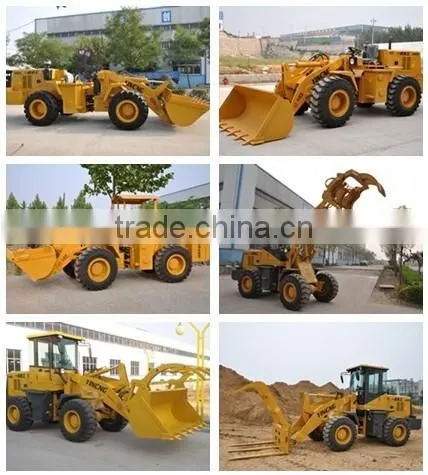

Related Products

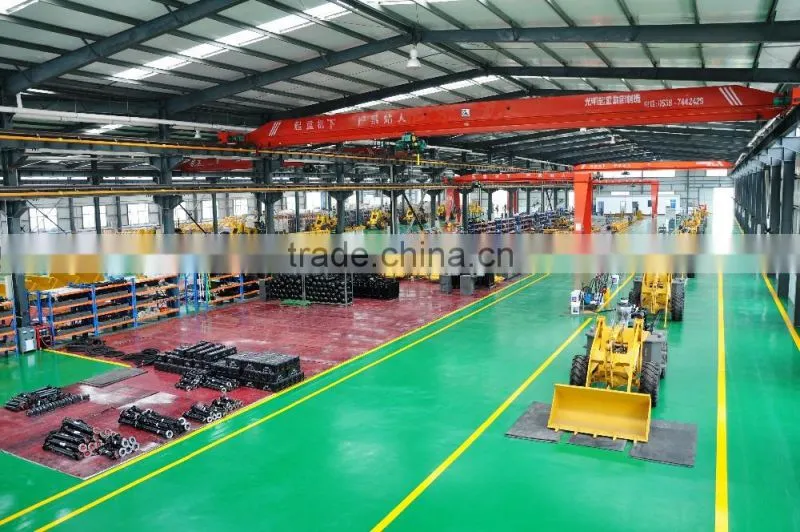

Our Factory
Certifications
Packing & Delivery

(1) Packing: 1 piece disassembled, naked within 1 x 20GP . 2 pieces disassembled, naked within 1 x 40GP.
(2) Delivery time: 30 days
(3) Validity of offer: 30 days
(4) Guarantee: We will send free spare parts with each loader. Besides, customers can order spare parts according to the parts list we offered.
(5) Guarantee: 6 months from the shipping date.
