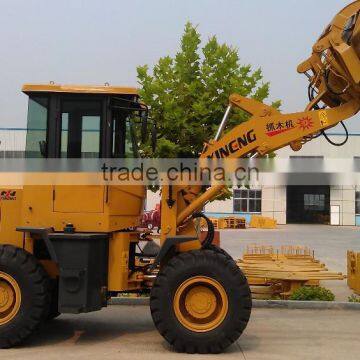

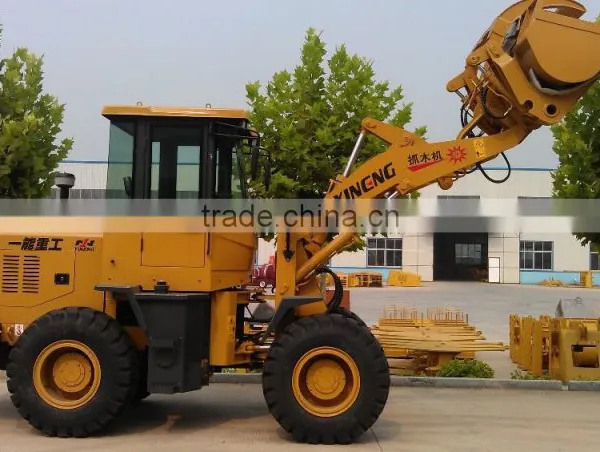

ZL18 Small Loader

1.Adopt Xinchai Diesel Engine.

2.Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance

3.Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy.

4.Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

5.Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage

6.Load sensing fully hydraulic steering system, easy and flexible operation

7.Air over hydraulic brake system; Caliper disc brakes

8.Working device with automatically leveling ability at high position

9.Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability

10.Integral, luxury instrument board.

11.New, luxury cabin

Item

Specification

Item

Specification

Bucket capacity

0.9m³

Rated power

50kW

Rated load

1800kg

Tyre

16/70-20

Dumping height

2750mm

Overall dimensions

5520*1950*2670

Max. breakout force

45 KN

Operating weight

5000kg

Max. drawing force

35 KN
