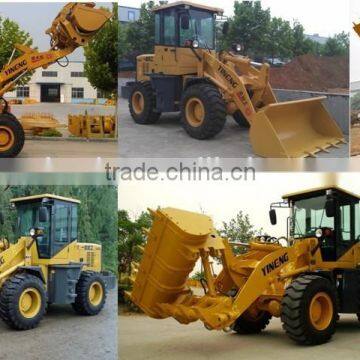

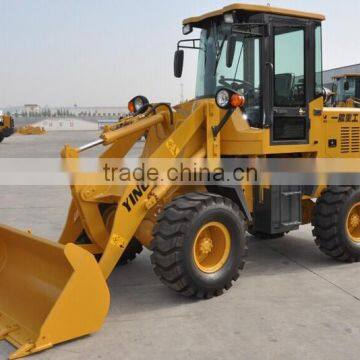

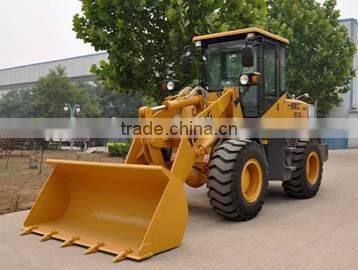

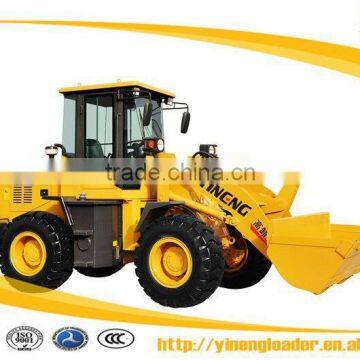

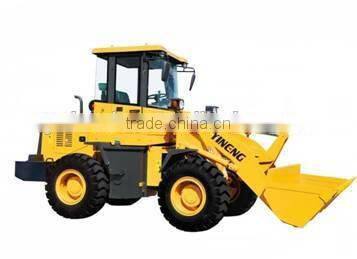

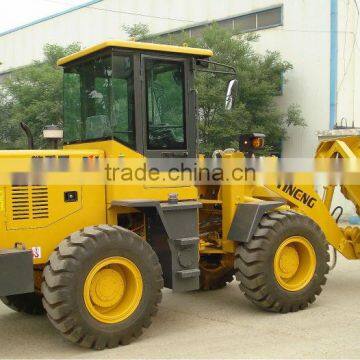

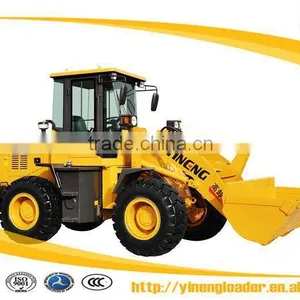

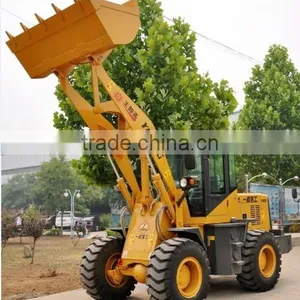

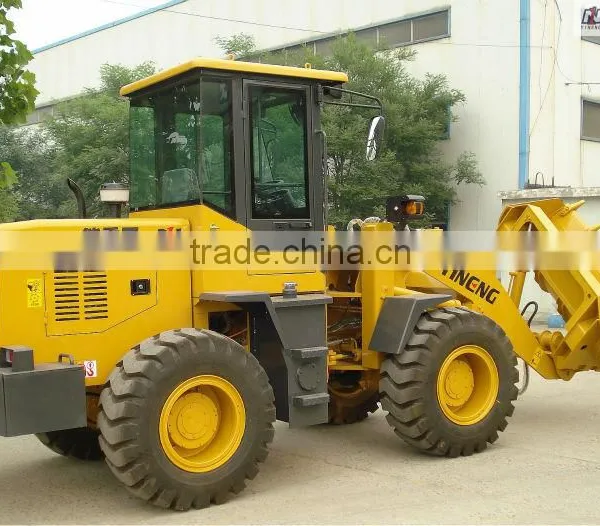

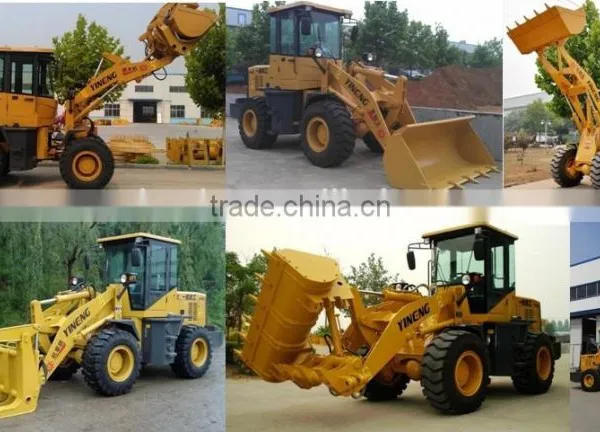

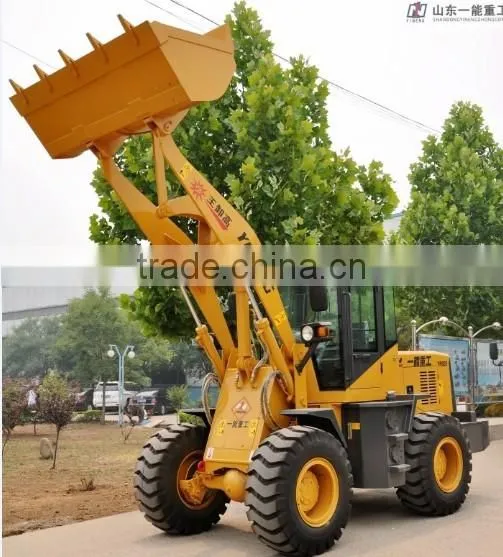

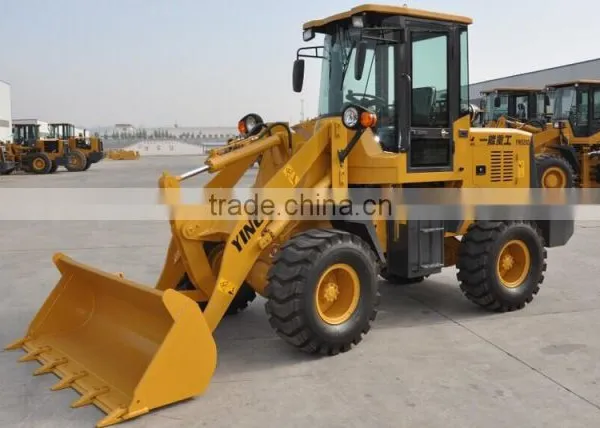

Help Center920 Wheel Loader
Related Products
-
First Class CE Provided 2 Ton Front Wheel Loader for Sale YN920 Adopt Xinchai Engine 0.9cbm Bucket CapacityNegotiableMOQ: 1 Set -
Hot Sale CE Provided 2 Ton Front Wheel Loader YN920 Adopt Xinchai EngineNegotiableMOQ: 1 Set
-
2ton Front Wheel Loader for Sale YN920 Adopt Xinchai Engine 0.9cbm Bucket CapacityUS$ 16,000 - 17,000MOQ: 1 Set
-
Hot Sale 3ton Front Wheel Loader 1.8cbm Bucket CapacityNegotiableMOQ: 1 Set
-
1.8T 0.9CBM CE ISO Approved Shan Dong First Class Brand SHAN DONG Yineng YN 918 Loader Luneng Machinery LN YN Iso 9001 APPROVEDNegotiableMOQ: 1 Set
1. Features
* Adopt XINCHAI A4K41G diesel engine;
* Hydrodynamic transmission technology and separated structure,make high reliability and easy maintenance;
* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy;
* Single pump, split flow working hydraulic system makes lower consumption and excellent performance;
* Double sealed hydraulic pipeline joints with 24° awl and ring of international standard,avoids oil leakage obviously;
* Load sensing fully hydraulic steering system makes operation easy;
* Air over hydraulic brake system; Caliper disc brakes;
* Working device with automatically leveling ability at high position;
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
* Integral, luxury instrument board.
* New, luxury cabin.
2.Main Specifications
Item |
Specification |
Item |
Specification |
Bucket capacity |
0.9m³ |
Min. turning radius (outside of rear wheel) |
4200mm |
Rated load |
1800kg |
Steering angle |
35° |
Dumping height |
2750mm |
Min. ground clearance |
330mm |
Dumping reach |
910mm |
Wheel base |
2150mm |
Boom lifting time |
4.5s |
Wheel tread |
1480mm |
Max. speed |
25km/h |
Rated power |
50kW/2400rpm |
Max. breakout force |
46kN |
Tire |
16/70-20 |
Max. drawing force |
35kN |
Overall dimensions |
5520*1950*2670mm |
Max. grade ability |
28° |
Operating weight |
5300kg |
3. Quality certificate
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Others
(1) Packing: 1 unit naked in 1 x 20GP container;
2 units naked within 1 x 40HQ container
(2) Delivery time: 30 days
(3) Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4) Guarantee Period: Six Months
(5)Offer Validity: 30 days
