Land preparing machine subsoiler 1S-200 / 264 / 300
1. Features:
1 Whole machine: compact structure and reasonable designation. Main parts of whole machine adopt high quality Q345 alloy project steel of good toughness, high strength and low plastic deformation coefficient, which makes the whole machine reliable and durable.
2 Plough legs: That unique and reasonable angle designation matching with particular main plough shovel and wings shovel combination structure makes low power consumption and working resistance as well as high working efficient
3 sharp knife type soil preparation roller which height is adjustable is easily able to smooth the soil
4 The security bolts set on plough legs could protect shovels from damaging when it meets big obstacles like stone or tree stump during working
2. Technical parameter:
Item | Unit | 1S-200 | 1S-264 | 1S-300 |
Working width | mm | 2000 | 2640 | 3000 |
Plough depth | mm | 300~360 | 300~400 | 300~500 |
Plough rows | rows | 5 | 5 | 7 |
Line spacing | mm | 440 | 500 | 440 |
Matched power (tractor) | Kw/hp | ≥70/95 | ≥88/120 | ≥88/120 |
Working efficiency | Mu/h | 15-30 | 12-30 | 20-45 |
Overall dimension (L*W*H) | mm | 2838x2372x1603 | 2838x2730x1603 | 2838x3250x1603 |
Whole weight | kg | 1330 | 1360 | 1730 |
Working speed | Km/h | 4~10 | 4~10 | 4~10 |

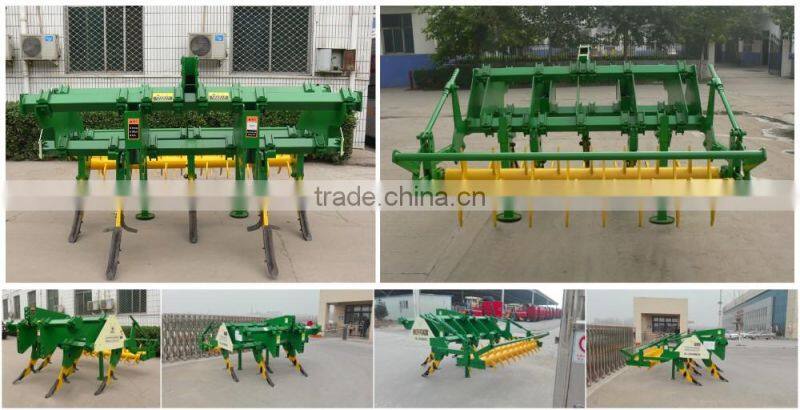

3. Pictures:
Pre-sale service
24hours online to ensure quick response to customers' inquiry or online message
Guide customers to choose the best suitable machine model, offer detailed specification and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work
After-sale service
12 months warranty except for wear parts
Spare parts (except for wear parts) will be sent for free due to quality problems
Timely response to customers technical problems
New products update for customers' reference

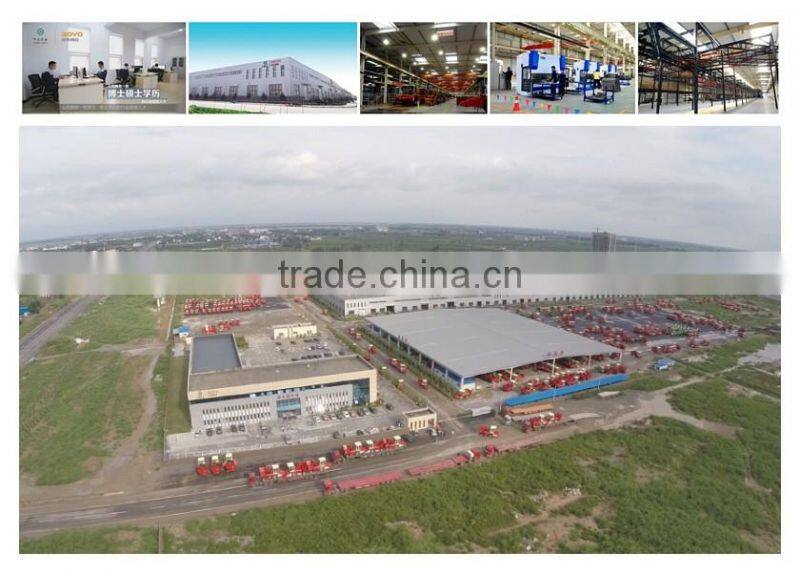

Hebei Sino-agri BOYO Agricultural Equipment Co., Ltd.
- BOYO started from "Gaocheng BOYUAN agricultural machinery co., Ltd" in 1991

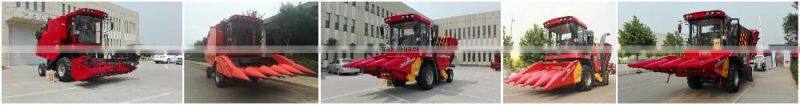

- BOYO developed and manufactured the first corn harvester in China cooperating with Ukraine COMBINE company in 1999
- BOYO is working on manufacturing, R&D, selling and after-sale service of corn harvester in domestic and abroad market for more than 18 years
- BOYO is a famous and popular brand, annual sales reaches to more than 4000 units.
- BOYO company occupied an area of more than 400000 square meters, with more than 800 staff
- BOYO 's corn harvester was sold to India, Philippines, Mexico, Braizil, Turkey, Sudan, Austrilia, Uzbekstan, Tajikistan and so on
- BOYO warmly welcome your visiting and sincerely expecting the cooperation with you!
