Chinese Farm Cultivator 1SZL-200
1. Features:
a. High efficient:
Simple structure, easy operate, high stability, high efficient.
b. Power:
PTO hang by tractor and is suitabale for high-speed operation, it is smaller of drawing resistance than turnplow,but consumption is 60% of the turnplow.
c. Obvious result of field:

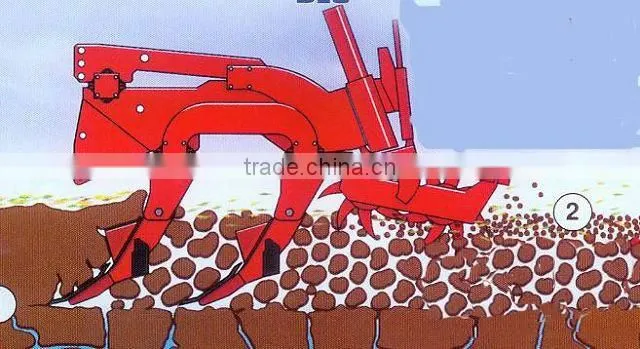

Practice shows deep loosening improve the soil condtions, make the soil more fertile, increase the production.
d. Easy to operation
If you can drive the tractor you can use the machine easily
e. Maintenance convenience
If the knife header is damage, it is easy to exchange, the cost is lower, so the working life is more longer
2. Technical parameter:
Item | Unit | 1S-200 | 1SZL-200A | 1S-264 | 1S-300 |
Working width | mm | 2000 | 2000 | 2640 | 3000 |
Plough depth | mm | 300~500 | 300~400 | 300~400 | 300~500 |
Plough rows | rows | 5 | 4 | 5 | 7 |
Line spacing | mm | 440 | 500 | 500 | 440 |
Matched power (tractor) | Kw/hp | ≥70/95 | ≥73.5/100 | ≥88/120 | ≥88/120 |
Working efficiency | Mu/h | 15-30 | 12-15 | 12-30 | 20-45 |
Overall dimension (L*W*H) | mm | 2838x2372x1603 | 2350x2500x1500 | 2838x2730x1603 | 2838x3250x1603 |
Whole weight | kg | 1330 | 780 | 1360 | 1730 |
Working speed | Km/h | 4~10 | 4~10 | 4~10 | 4~10 |

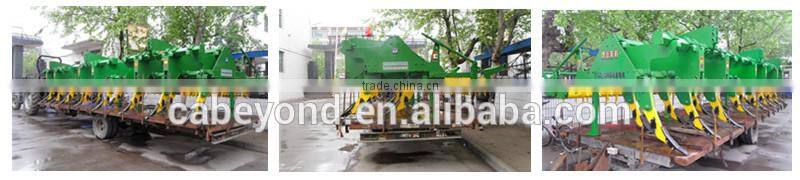

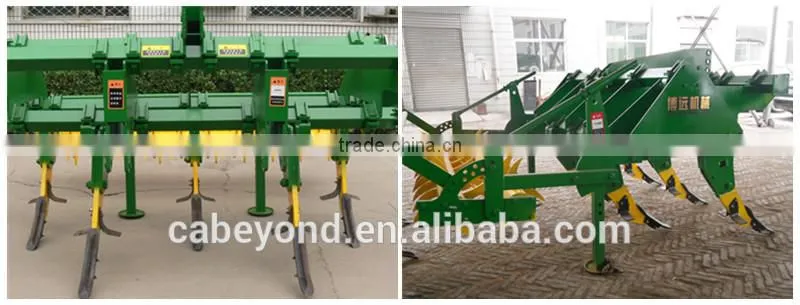

3. Pictures:

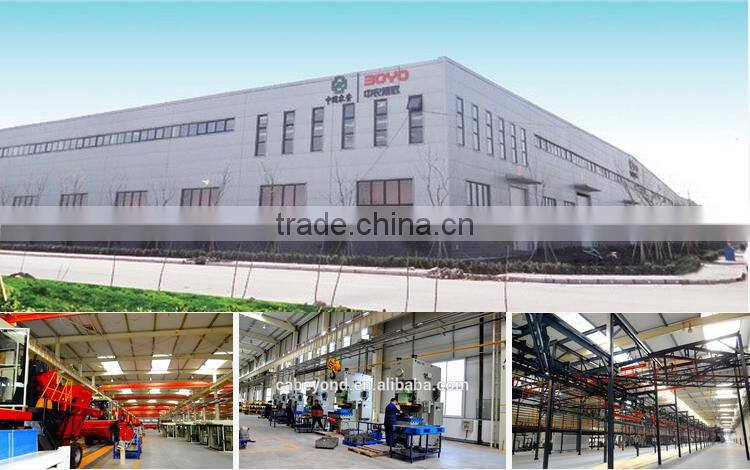

Hebei Sino-agri BOYO Agricultural Equipment Co., Ltd.
Hebei Sino-Agri BOYO Agricultural Equipment Co., Ltd. is a subsidiary of China National Agricultural Means of Production Group Co., Ltd., established in January 2011. It was jointed created by China National Agricultural Means of Production Group Co., Ltd. and Gaocheng Boyuan Agricultural Machinery Co., Ltd., with a registered capital of RMB 50 million.
The predecessor of Sino-Agri BOYO was founded in 1991, which was one of the first enterprises engaged in the R & D and manufacturing of combine corn harvesters. Sino-Agri BOYO has a total staff of more than 900 people, of which more than 50 are middle or senior technical specialists. The company has a provincial grain crop harvesting machinery laboratory, a provincial-level enterprise technical center, and municipal-level key laboratory for corn harvesters and silage harvesters, being equipped with strong R & D capabilities. The company has received 12 patents. The main products include combine harvesters, silage harvesters, subsoilers, round grass balers, Mower and other orchard equipment.
In the future, Sino-Agri BOYO will stick to the mission of “serving agriculture, rural areas and farmers”, and the guideline of “independent innovation, and continuous improvement”, and continue to improve the level of modern business management, striving to achieve the objective of “providing customer satisfied products, and building BOYO brand”, to build the company into a pilot enterprise in the agricultural machinery industry in China.
