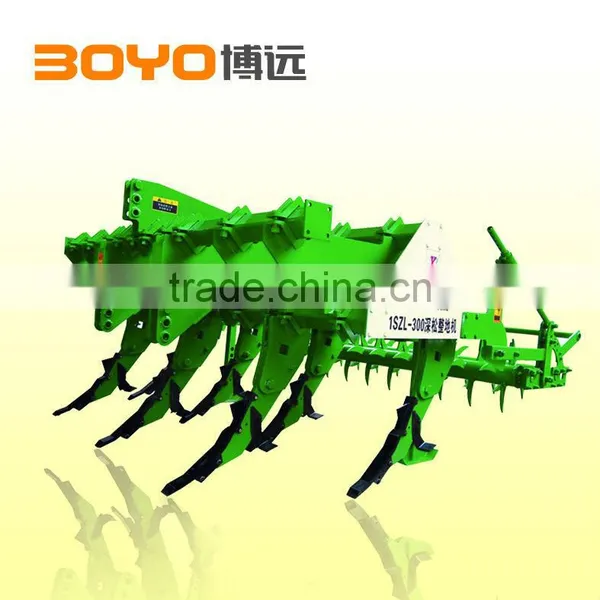

subsoiler plough

subsoiler plough

Feature

The methods of Deep loosening is a new method of plough the fileld,in the arid land it is easy to operation,can inprove the soil condtions,make the soil more fertile so that increase the production.

The structure of this machine is simple,high reliability ,easy operation,hign efficiency is the main feature,it is adopt PTO hang by tractor  and is suitabale for high-speed operation,it is smaller of drawing resistance than turnplow,but consumption is 60% of the turnplow.

1SZL of deep loose machine technical specifications

Model                     1SZL-200A          ISZL-200G         1SZL-300

Weight(kg)                    780                530               1730

Dimensions(L*W*H)       2350*2500*1500      2380*1950*1500    2838*3250*1603

Match power(hp)               95hp               80hp              150hp

Working width(mm)            2000                2000              3000

Working speed(km/h)            4-10               4-10               4-10

Working deepth(mm)           300-400             300-400            300-500

Working space(mm)            500                 500               440

Loose raws                     4                   4                 7

Working performance(acre/h)    2-2.5                 2-2.5             3.333-7.
