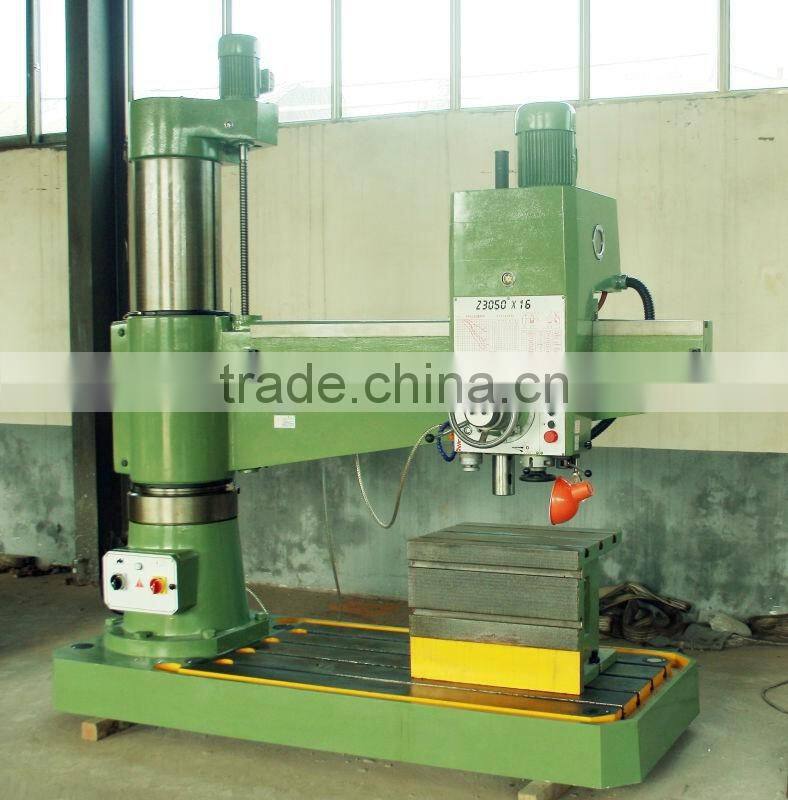

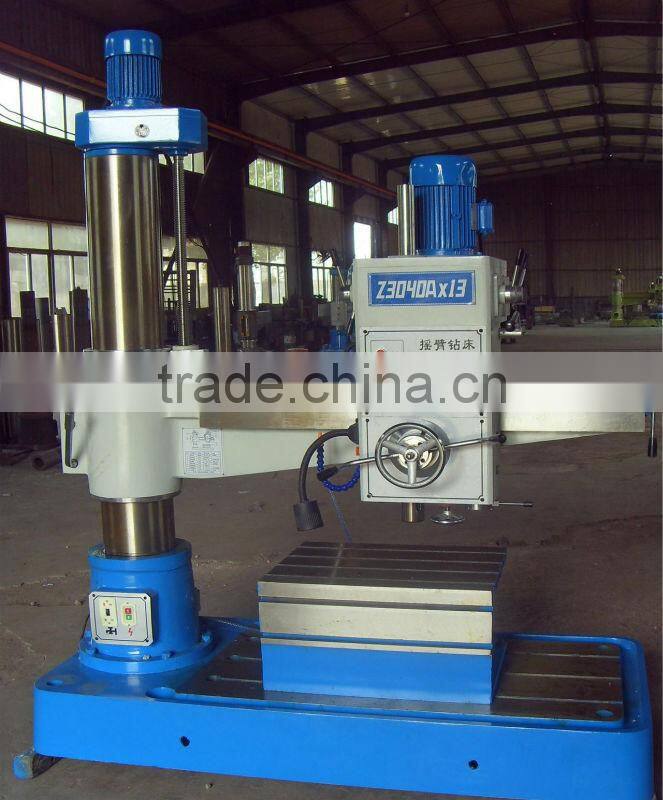

electric hole drilling machine

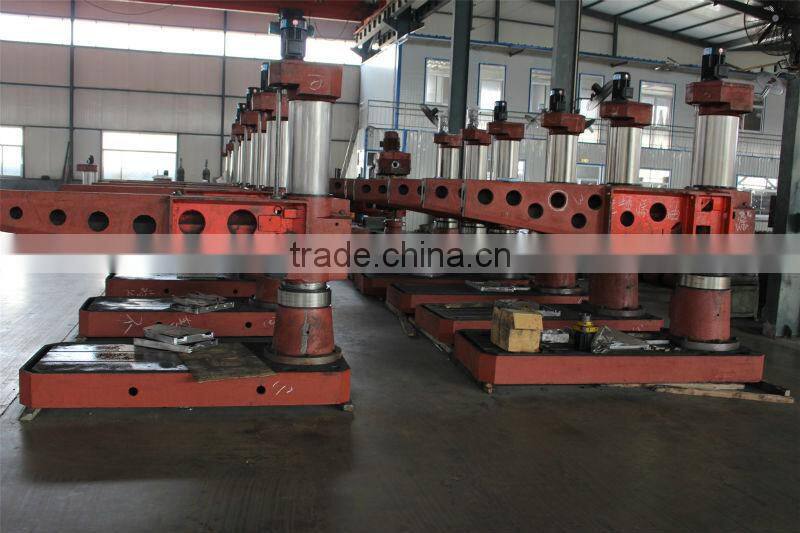

the main structure
Standard accessories:
-Box shape worktable;
-Taper sleeve;
-Tool releasing wrench;
-Drift;
-Foundation bolts
technical parameter
Specification | ZQ3032*10 | ZQ3040*10 | ZQ3040*13 | ZQ3050*16 | ZQ3063*20 |
Max. Drilling dia. (mm) | 32 | 40 | 40 | 50 | 63 |
Distance from spindle nose to table surface (mm) | 108-1000 | 260-1050 | 260-1150 | 260-1050 | 500-1600 |
Distance between spindle axis and column face (mm) | 360-1300 | 360-1300 | 360-1300 | 360-1600 | 400-2000 |
Spindle travel | 200 | 200 | 200 | 200-220 | 400 |
Spindle cone | 4 | 4 | 4 | 5 | 5 |
Spindle speed range (rpm) | 75-1200 | 75-1200 | 75-1200 | 78-1100 | 20-1600 |
Spindle feeding range (rpm) | 0.10-0.25 | 0.10-0.56 | 0.10-0.25 | 0.10-0.56 | 0.04-3.2 |
Rocker rotary angle | 360 | 360 | 360 | 360 | 360 |
Main motor power (kw) | 0.85/1 | 2.2 | 2.2 | 4 | 5.5 |
Movement motor power (kw) | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 |
Net weight (kg) | 950 | 1500 | 1900 | 2800 | 7000 |
Overall dimension (mm) | 1400*670*1900 | 1500*705*2200 | 1800*810*2200 | 2170*950*2450 | 3000*1250*3300 |
