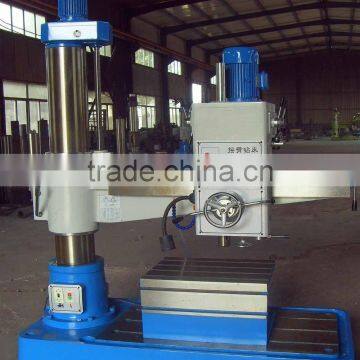

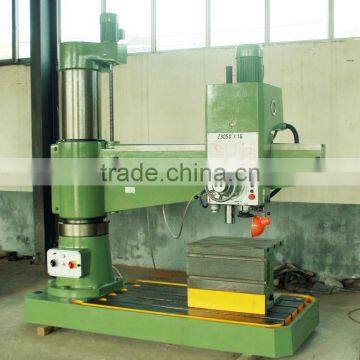

Radial Driller, Radial Drill Machine Z3032, Electric Hole Drilling Machine

Name: Radial Driller, Radial Drill Machine Z3032, Electric Hole Drilling Machine
Brand: HARSLE
SKU: 140996296
Availability: InStock

US$ 2,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

108-1000

Nanjing Harsle Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 108-1000

Place of Origin Jiangsu, China

Brand Name HARSLE

Model Number Z3032

Voltage 380V

Power(W) 2.2KW

Dimension(L*W*H) 1235*600*1780MM

Weight 800KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

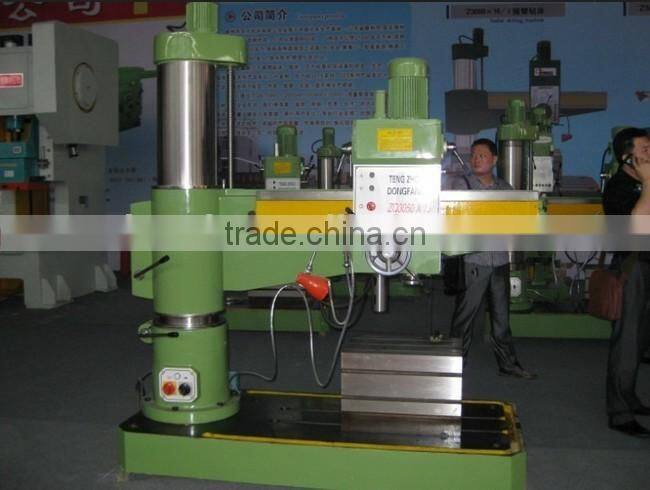

radial drill machine

Standard accessories:

-Box shape worktable;

-Taper sleeve;

-Tool releasing wrench;

-Drift;

-Foundation bolts

Specification	ZQ3032*10	ZQ3040*10	ZQ3040*13	ZQ3050*16	ZQ3063*20
Max. Drilling dia. (mm)	32	40	40	50	63
Distance from spindle nose to table surface (mm)	108-1000	260-1050	260-1150	260-1050	500-1600
Distance between spindle axis and column face (mm)	360-1300	360-1300	360-1300	360-1600	400-2000
Spindle travel	200	200	200	200-220	400
Spindle cone	4	4	4	5	5
Spindle speed range (rpm)	75-1200	75-1200	75-1200	78-1100	20-1600
Spindle feeding range (rpm)	0.10-0.25	0.10-0.56	0.10-0.25	0.10-0.56	0.04-3.2
Rocker rotary angle	360	360	360	360	360
Main motor power (kw)	0.85/1	2.2	2.2	4	5.5
Movement motor power (kw)	0.55	1.1	1.1	1.5	1.5
Net weight (kg)	950	1500	1900	2800	7000
Overall dimension (mm)	14006701900	15007052200	18008102200	21709502450	300012503300
