Press Punching Machine With High Accuracy, J23 Series C-type Power Press

Mechanial power press with good quality

 Feature

1. Its structure is simple, operation convenience, function credibility, the usage maintain convenience.
2. J23 series shut type list orders the pressure machine fuselage of airplane srtaight line form design, well balanced to be subjected to dint, constant form, rigid and strong.
3. Extemely high closing height, pack the mould space big, slippery piece the piece six noodles directionn, the accurancy is high, stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type, oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard.

 Transmission control and brake systems:

1. Use the combine of dry friction clutch and brake pneumatic,rigid interlocking,reliable piece of friction material semi-metallic friction material SMFM-88,less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation, convenient of installation and maintenance

2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.

3.Use double safety valve to ensure the accurate implementation of the clutch instruction.

4. Electrical control is installed PLC, 8 group cam controller, reliable action.

5. Electrical control adopts Omron PLC for centralized control, improved machine reliability

6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.

7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.

8. Can move the ram up slowly,which allows the operator to control Mold adjustment conveniently.

 Ram adjustment and Structure:

1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.

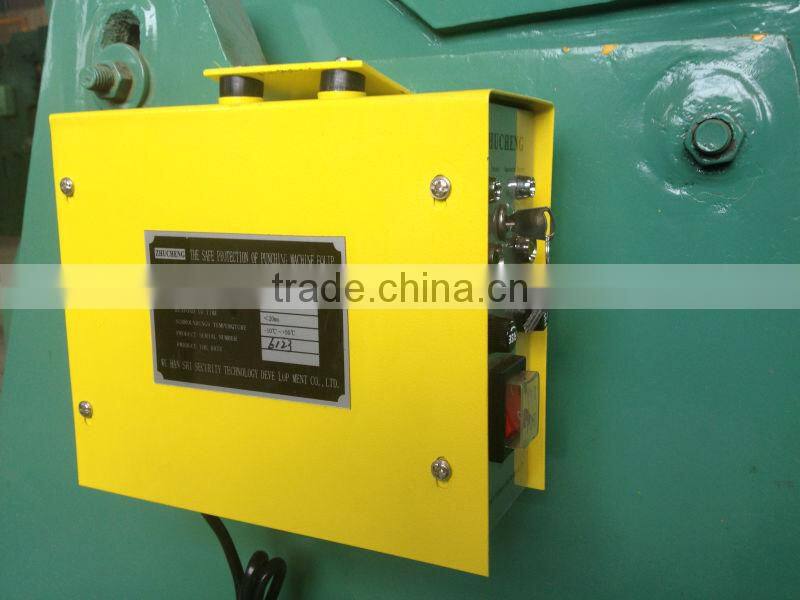

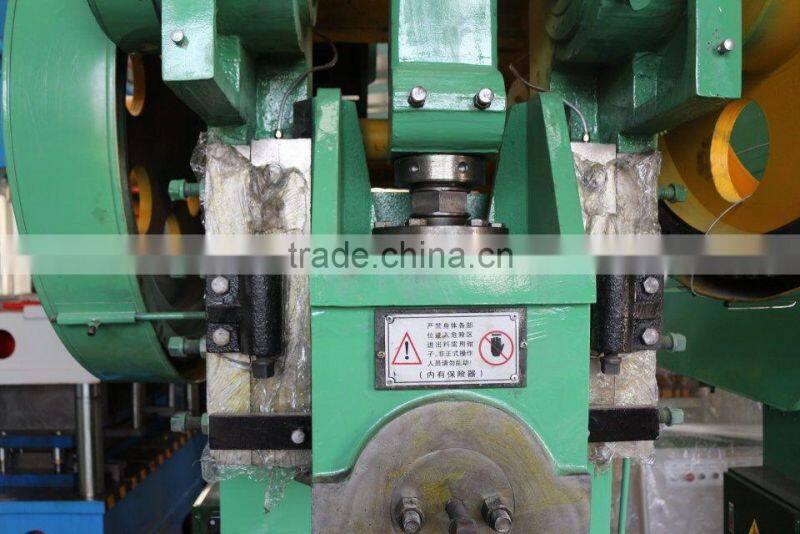

2. Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.

3. Electrical system and the safety interlock:

1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.

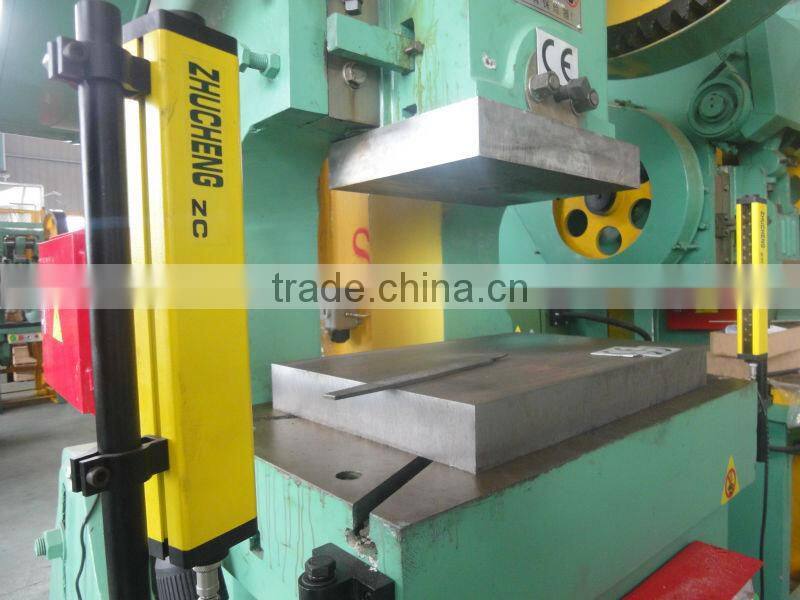

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

3.The machine by the European Union CE certification and ISO quality system certification

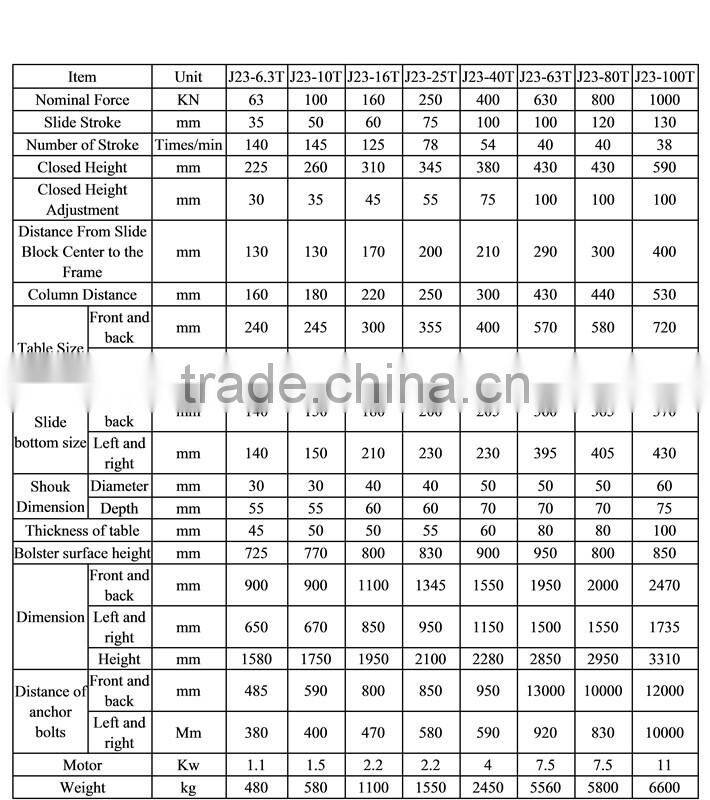

Parameters

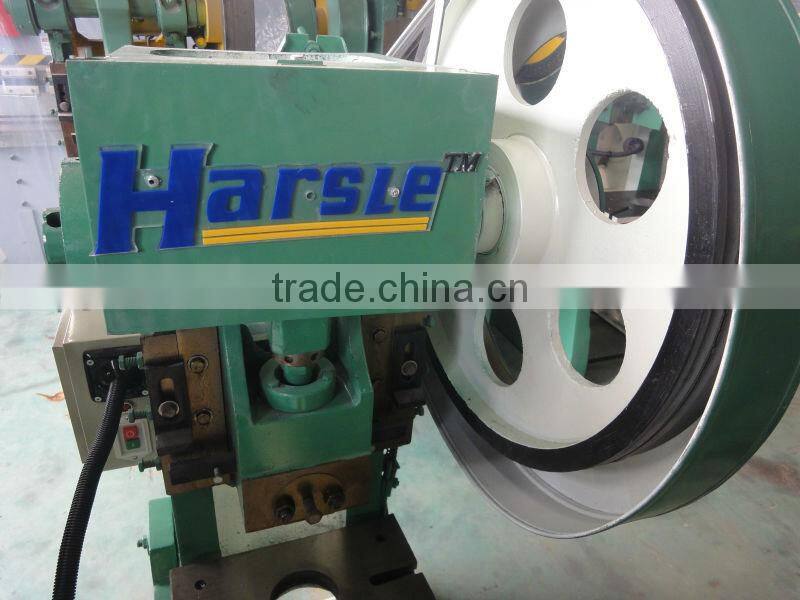

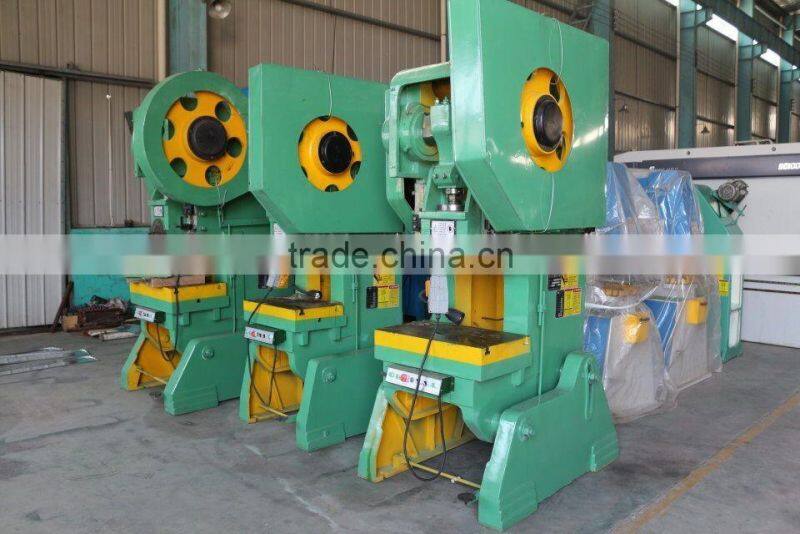

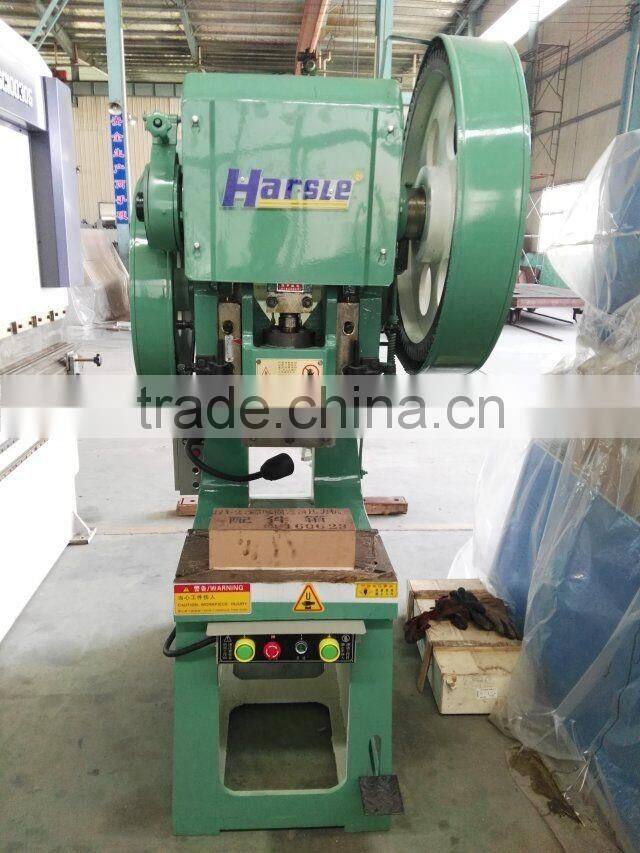

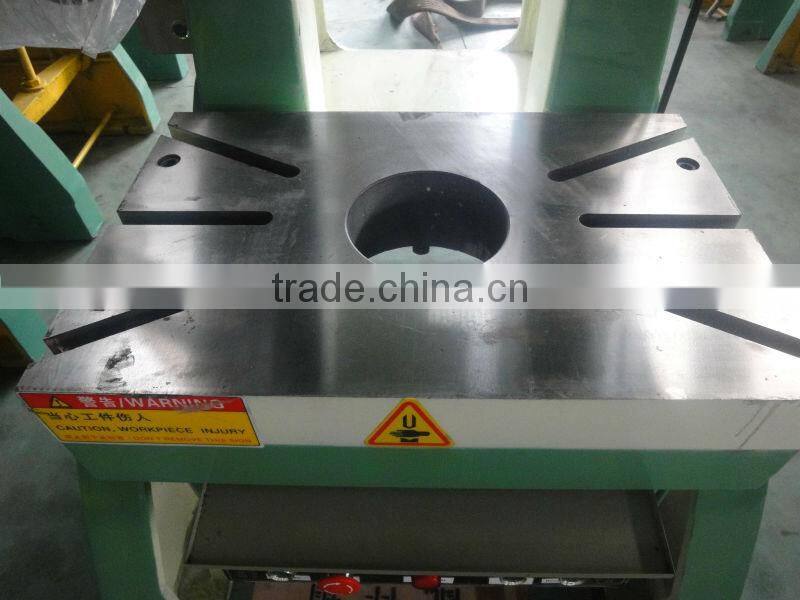

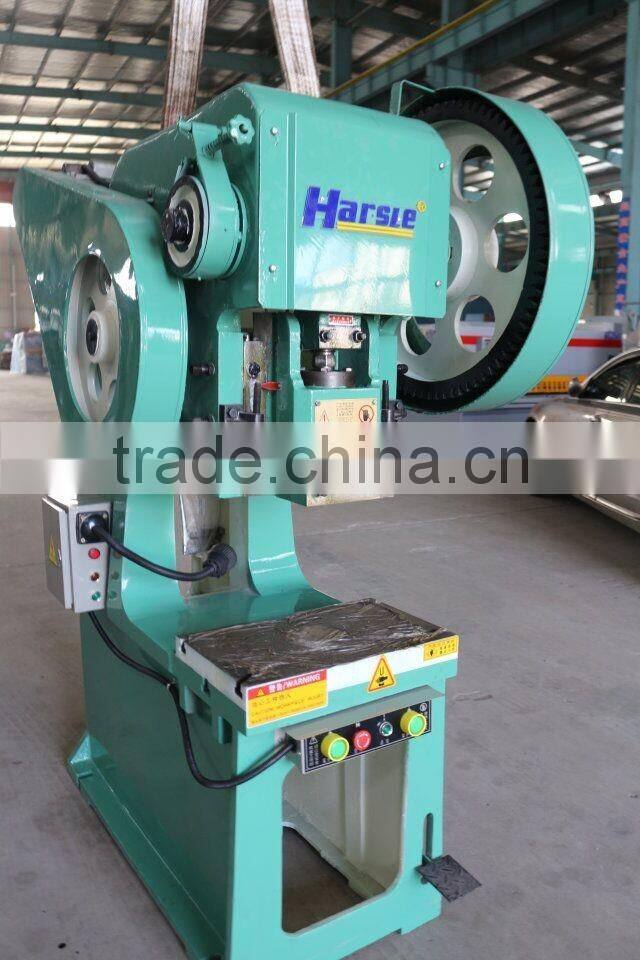

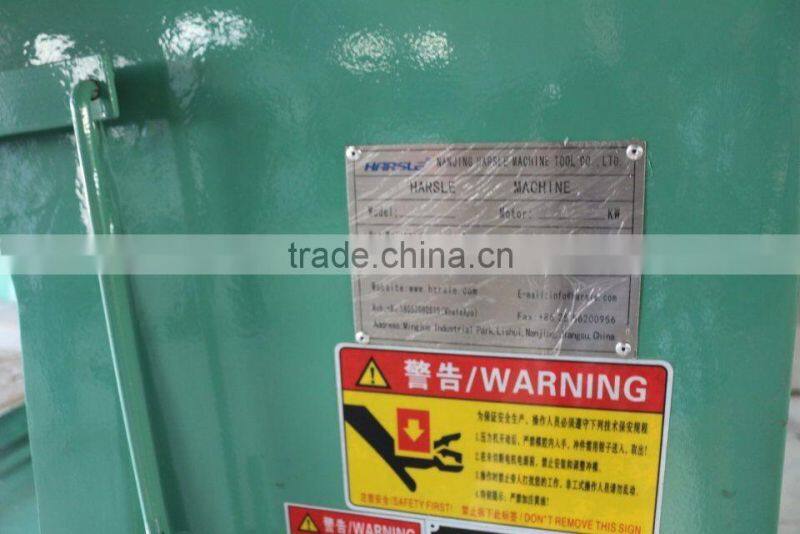

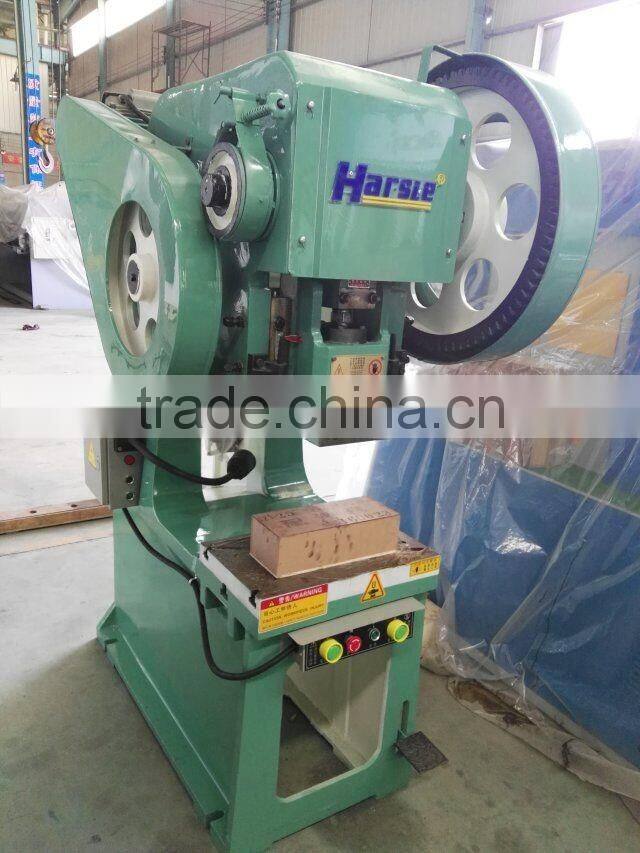

Detail Pictures

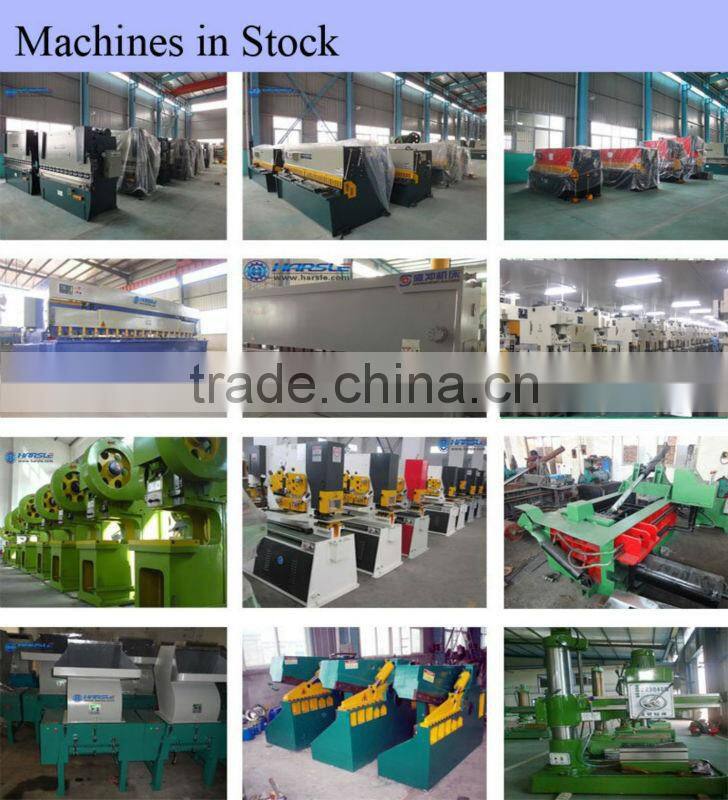

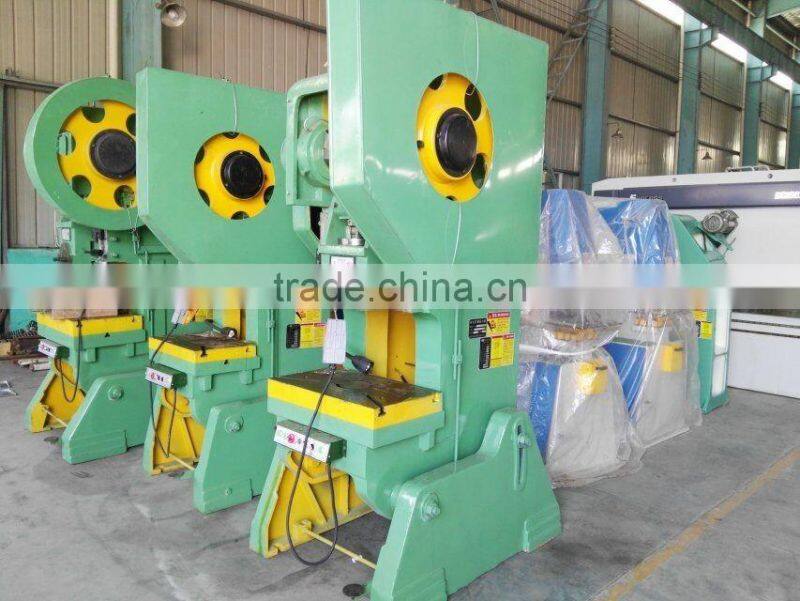

Stock Machine

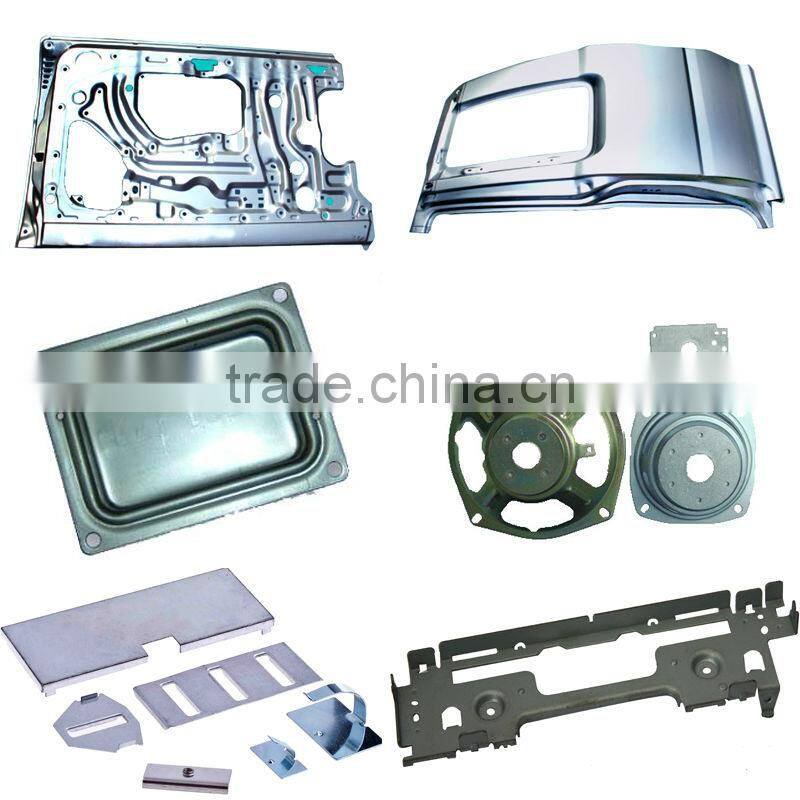

Punched Product
