Hydraulic Bending Machine,metal Bending Brake,hydraulic Press Brake Machine

Hydraulic Bending Machine,metal Bending Brake,hydraulic Press Brake Machine thumbnail-1
Hydraulic Bending Machine,metal Bending Brake,hydraulic Press Brake Machine photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Harsle
Contact Supplier Request Quote Chat Now
Nanjing Harsle Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Harsle
Model Number WC67Y
Machine Type Beading Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Carbon Steel
Power Hydraulic
Automation Automatic
Extra Services End Forming
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Main components of the Hydraulic plate bending machine:

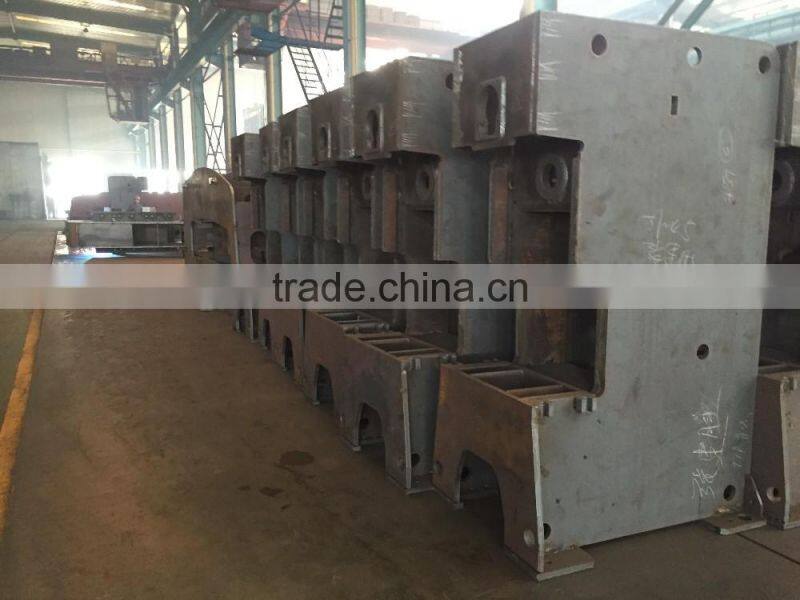

1. The whole machine is in sheet plate welded structure in order to hold high strength and rigidity.
2 .Double hydraulic oil cylinder is applied for upper transmission, placed on the slide block, direct drive sliding work.
3. The backgauge with digital display device is easy and quick in use.
4.Upper die and down die are used  into different angles and shapes.
5. Electric cabinet to control the whole power system of the machine,

YouTube Video Link:
/watch?v=ACJKNT5CsFs

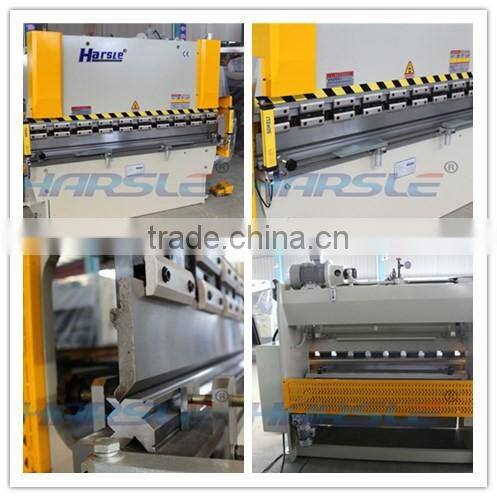

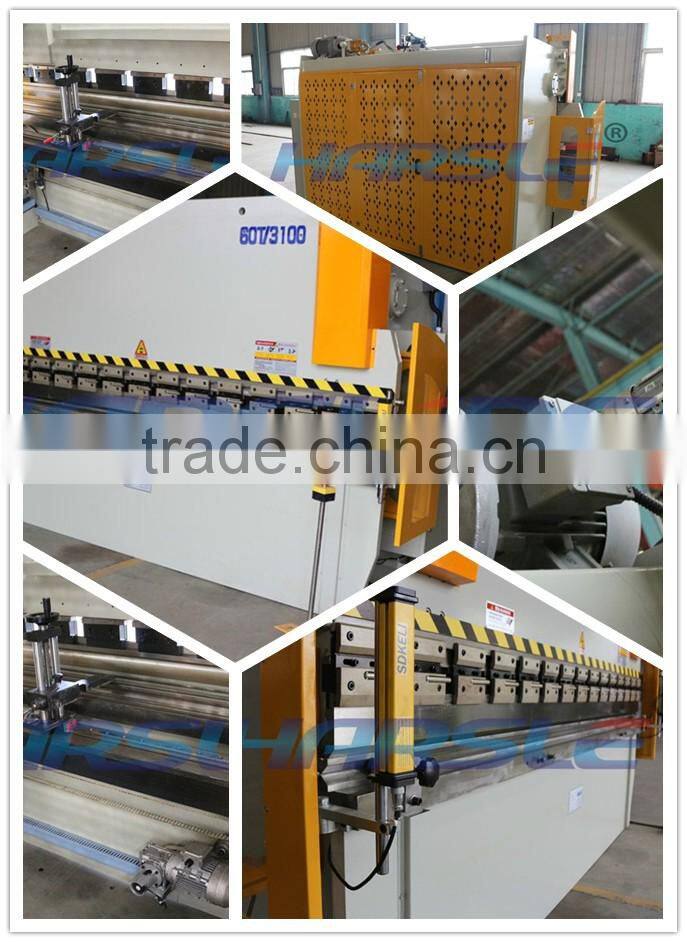

Detailed Images

1. Hydraulic system:


1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.
2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

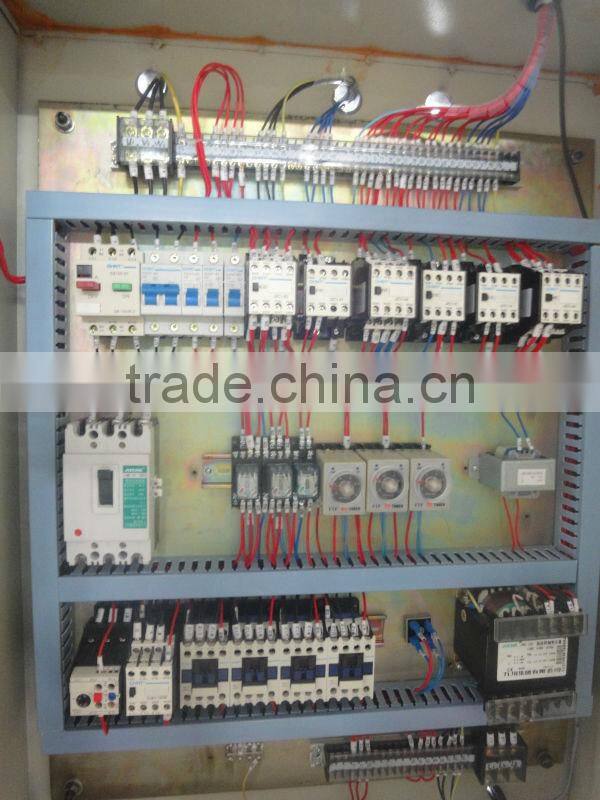

2. Electrical system and the safety interlock:

1. Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate
3. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

3. Synchro control system:


1. Slide synchro system:adopt steel torsion bar synchro system, simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism
2. ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
3.The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

Our Service

Why do you choose us?

1. Accomplishment
Nanjing Harsle Machine Tool Co.,Ltd. boasts the excellent technician team to design and serve our customers. We have successfully served many domestic and overseas customers in the past several years.
2.Innovation
Our team hold the strong designing capability, adopt the international management mode and address the new solutions for different requirements.
3.High quality
Plenty of machinery parts are imported from famous factory in the world, such as Siemens ; DELEME ; CYBELEC and etc.
4.Competitive price
Our bending machines with competitive price are appropriate for you in terms of the advanced technology.
5. Welcome
Whenever you come to visit our factory, you can see many hydraulic press breaks in our factory. Wait for your contact.
