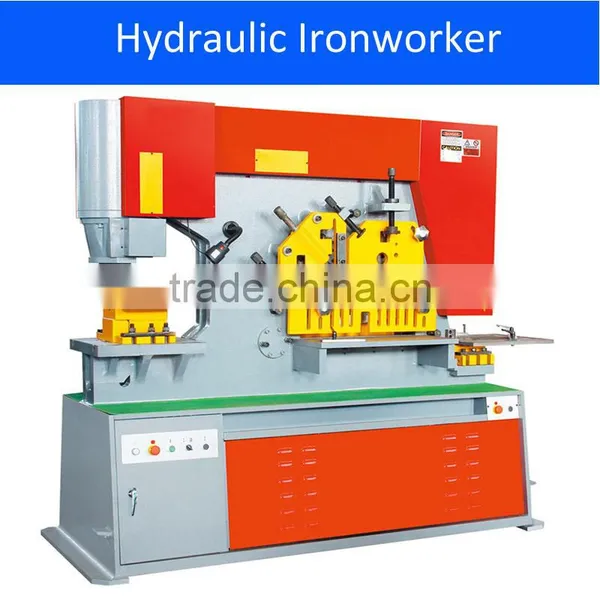

Q35Y hydraulic ironworker
the main structure
features
1.Double-cylinder hydraulic punch & shear machine
2.Five independent stations for punching, shearing, notching, cutting and bending
3.Large punching table with multi-purpose bolster
4.Rear notching station, Low power inching and adjustable stroke at punching station
5.Centralised pressure lubrication system
6.Electric panel with overload protection elements and integrated controls
7.Safety movable foot pedal
Punching Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching. Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
Shearing Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.
Notching Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
technical parameter
