Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 thumbnail-3

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 thumbnail-4

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 thumbnail-5

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 thumbnail-6

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 photo-1

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 photo-2

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 photo-3

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 photo-4

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 photo-5

CNC Turret Punching Press Machinery Used for Metal Sheet H1225-20 photo-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Power Source:

Hydraulic

Contact Supplier Request Quote Chat Now

Guangxi Xiashi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Power Source Hydraulic

Place of Origin Guangxi, China

Model Number H1225-20

Voltage 380V

Weight 12000kg

Dimension(L*W*H) 4900*4700*2245

Certification CE

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

O-H series CNC turret punch H1225 / 1530 Series

Detail: Excellent value for money.Drawer platform,easy mold change.Easy to use and easy to operate.Automatic lubrication system,humane.Appearance,structure and stability.Easy

maintenance(service:local,PRD).Use of low cost(30 yuan/H,less than half the cost of the

hydraulic/H).After-sales service,low prices,interest rates do not earn do not earn service.Good

staff training,staff recruitment good.Software displays real-time graphics processing

progress.BlindChassis shellChassis cabinetsParameters / ModelH...

Ten advantage of the machine

Excellent value for money.	Drawer platform,easy mold change.
Easy to use and easy to operate.	Automatic lubrication system,humane.
Appearance,structure and stability.	Easy maintenance(service:local,PRD).
Use of low cost(30 yuan/H,less than half the cost of the hydraulic/H).	After-sales service,low prices,interest rates do not earn do not earn service.
Good staff training,staff recruitment good.	Software displays real-time graphics processing progress.

Technical parameter

Parameters / Model		H1225-20	H1225-30	H1530-20	H1530-30
Machine structure		Closed	Closed	Closed	Closed
Punch force	KN	200	300	200	300
Max sheet thickness	mm	6	6	6	6
Max sheet size(a fixture)	mm	1250*2500	1250*2500	1500*3000	1500*3000
Punching Accuracy	mm	±0.1	±0.1	±0.1	±0.1
Highest number of trips	h.p.m	200/280/320	200/280/320	200/260	200/260
Median mold	set	12/18/24/32	12/18/24/32	12/8/24/32	12/18/24/32
Dividing the median worker	set	--/1/2	--/1/2	--/1/2	--/1/2
CNC axes	piece	3/4	3/4	3/4	3/4
Machine weight	T	12	13	13	14
Overall dimensions	mm	490047002245	490047002245	490047002245	490047002245
Max.traveling speed	m/min	80	70	80	70
Turret rotation speed	rpm	30	30	30	30
Max.punching diameter	mm	φ88.9	φ88.9	φ88.9	φ88.9

Number of stations	A	B	C	D	Rotating station number E
Number of stations	Φ3-12.7mm	≤Φ31.7mm	≤Φ50.87mm	≤Φ88.9mm	Rotating station number E
18	9	6	2	1	NO
24	12	8	2	2	NO
24	12	9	2	1	1+1
32	18	10	2	2	1+1

18Station

24Station

32Station

Ductile iron turret to ensure custoner ease of use.

Overall completion time processing turret to ensure accuracy.

Thick turret tooling guide is good,long mold life.

Independent sub-degree rotation can be more flexible use of different angles punching mold complex shaped workpieces.

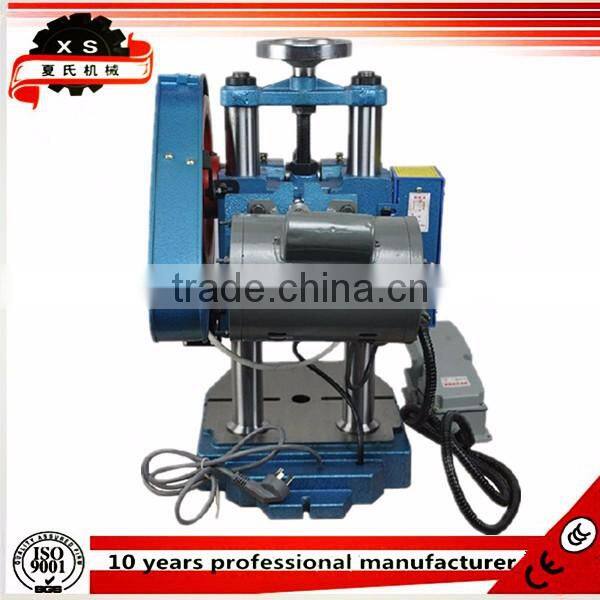

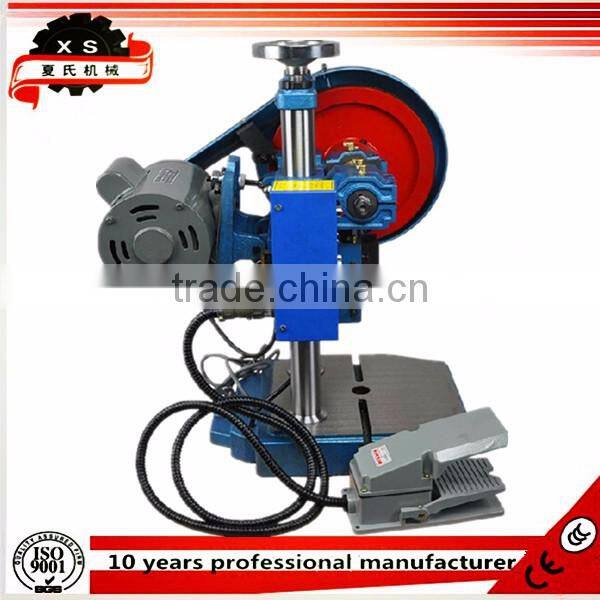

More pictures for your reference

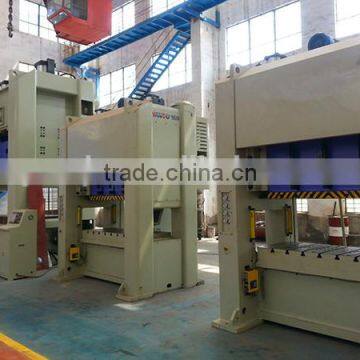

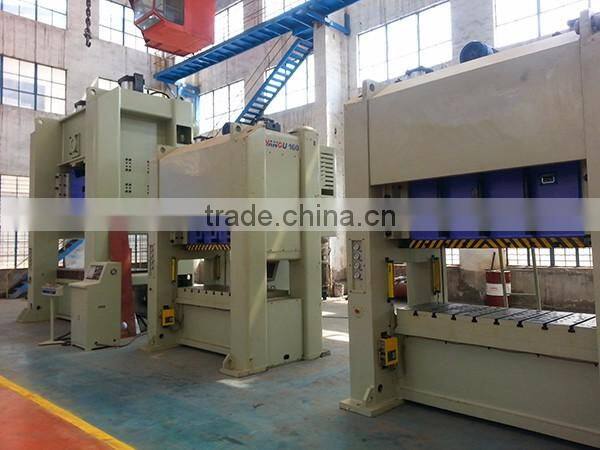

Other punching press machineries

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
