shipbuilding plate bending machine drawing W11 25x12000
Specifications
- Steel-welded structure
- Good quality with best price
- Timely cargos delievery
- Customer-focus service
Features
1 Plate-rolling form
2 Mechanical driven
3 Three drive rollers
4 High productivity
5 Easy to operate
6 Excellent product precision
7 Variant bending shapes
This is three-roller non-symmetric rolling equipment. It is mainly used in the process of cold working in which the sheets within the thickness of 12mm to 25mm can be bent into different diameter cylindrical tubes. It is widely used in boiler, chemical industry, mining, construction, shipbuilding and other machinery industry.
Working principle
This is symmetric bending machine.
The cylinder rolling is completed by the upper roller which pressing to the lower one and the mutual rolling.
As shown below drawing:
Main Parameter for your reference
model |
W11-25*12000 |
Max.rolling thickness |
25mm |
Max.plate width |
12000mm |
Yielding limit of sheet metal |
255MPa |
Rolling speed |
4m/min |
Min full loading diameter of plate |
1000mm |
Diameter of upper roller |
650mm |
Diameter of lower roller |
420mm |
Central diameter between bottom shafts |
700mm |
Power supply |
380V/50Hz. |

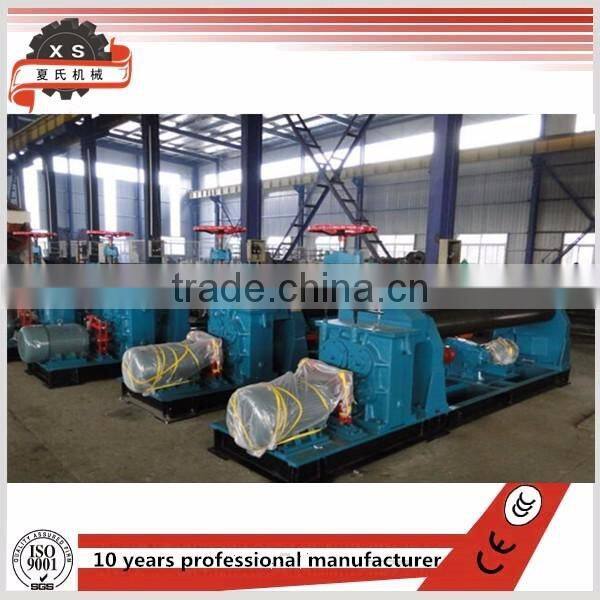

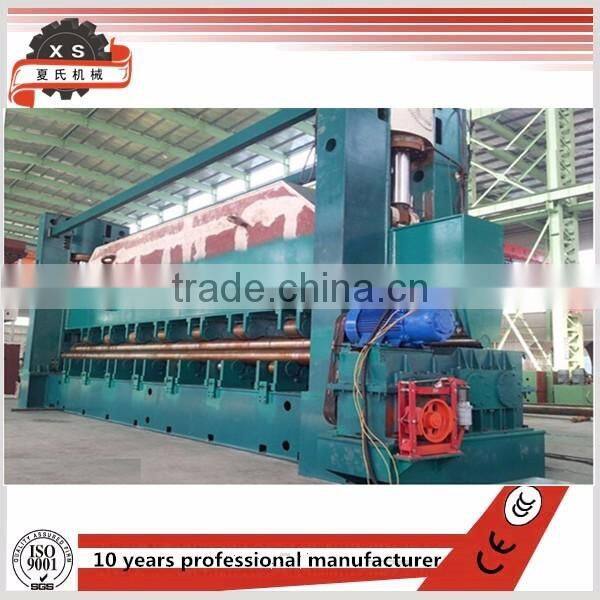

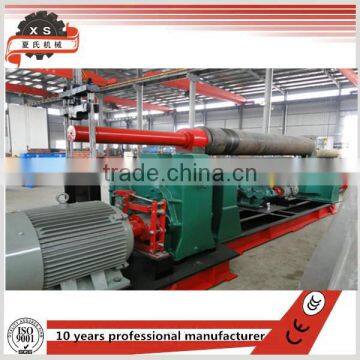

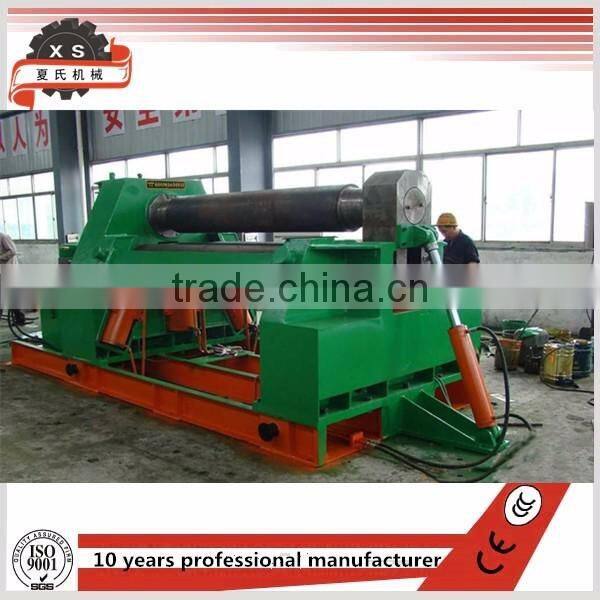

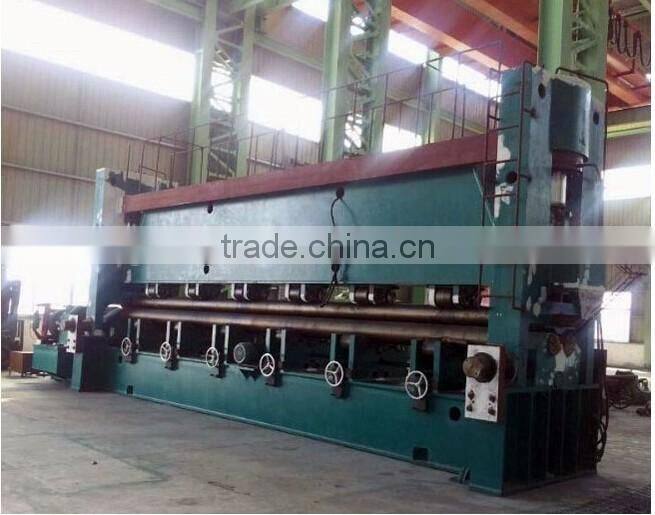

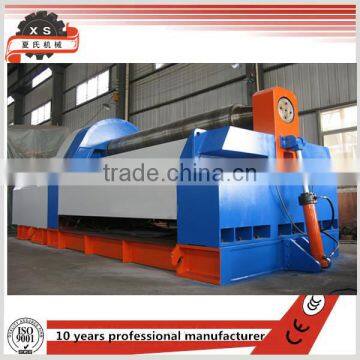

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
