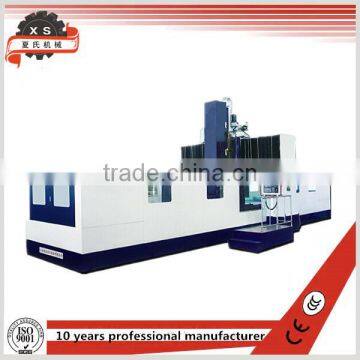

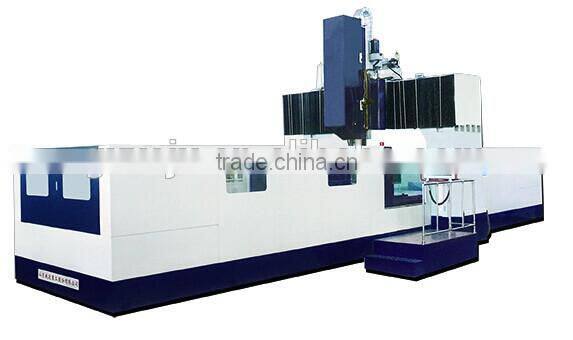

32 Tools Gantry Type CNC Plano Milling Machine for Sale GMC2040

Name: 32 Tools Gantry Type CNC Plano Milling Machine for Sale GMC2040
Brand: Xiashi
SKU: 140991260
Availability: InStock

Guangxi Xiashi Machinery Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangxi, China

Brand Name:

Xiashi

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangxi, China

Brand Name Xiashi

Model Number GMC2040

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Transverse helical chip conveyor
Chain-type tools magazine capability 32 tools or 40 tools
Fanuc oi md, Siemens 828d, Mitsubishi M70, Heidenhain, and so on cnc control sytem for your choice
Fixed beam type structure
X,Y axis linear guideway; Z axis box guideway
Germany ZF gearbox is optional
Hydraulic station is optioanl
Taiwan N75 right angle milling head or Spain multi-surface milling head is optional

		Units	GMC2040
X-axis travel		mm	4200
Y-axis travel		mm	2500
Z-axis travel		mm	1000
Worktable size		mm	2000*4000
Max. load of worktable		kg	12000
Number of T-slot		qty	9
Width of T-slot		mm	28
Distance between the adjacent T-slot		mm	200
Distance between the two colums		mm	2600
Distance from spindle nose to worktable surface		mm	200~1200
Spindle taper			BT50
Feed speed	X,Y axis	mm/min	1~4000
Feed speed	Z axis	mm/min	1~2000
Rapid speed	X,Y axis	mm/min	12000
Rapid speed	Z axis	mm/min	8000
Spindle moter power		kw	18.5/22
Spindle speed		rpm	30~3200
Positioning accuracy X,Y,Z		mm	±0.032/0.0280.022
Repeat positioning accuracy X,Y,Z		mm	±0.015/0.014/0.012
