Technical parameter
Control system Inverter
Worktable:
X axis travel 4000mm
Max.cutting height 1000mm
Y axis travel 1500mm
Worktable size 4000x1200mm
T-slots(W*N) 22x9mm
Feed speed of worktable 0-5600 mm/min
Milling head:
Up-down travel of vertical milling head 300(-90~210)mm
Up-down travel of crossrail 300-1000mm
Up-down feed of crossrail 420mm/min
Left-right travel of vertical milling head 1500mm
Left-right feed of vertical milling head 0-2400mm
Spindle taper of vertical/horizontal milling head NT50 NO.
Rotating speed of spindle(6 levels) 100-685r.p.m
Left-right travel of horizontal milling head 300(-90~210)mm
Up-down travel of horizontal milling head 0-700mm
Up-down feed of horizontal milling head 0-350mm/min
Motor:
Vertical/Horizontal spindle motor 7.5kw
Vertical/Horizontal spindle feed motor 0.4kw
Worktable feed motor 5.5kw
Up-down motor of cross rail 1.5kw
Left-right motor of vertical milling head 2.2kw
Up-down motor of horizontal milling head 2.2kw
Automatically lubricating pump 0.2kw
Oil hydraulic pump motor 1.5kw
Main motor power 28.9kw
Machine size:
Machine dimension(L×W×H) 10500x3700x3450mm
Max.load bearing of machine 8000kg
Net weight 25000kg

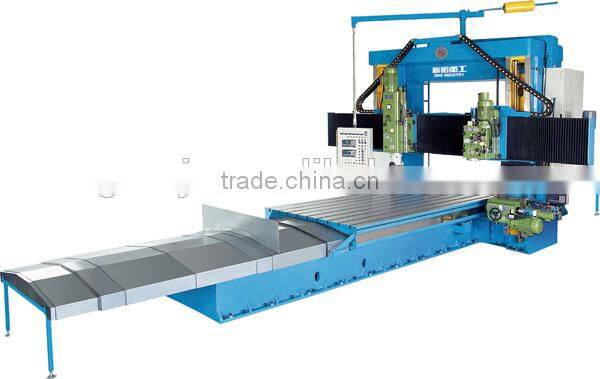

Picture details
Services
- Professional advice and rich experience help to choose machine.
- Customized service: Technical team design and produce the customized machine.
- Maunal book, tool cabinet are provided with machine.
- If necessary, technicist will be in charge of machine installation in your country.
- After-sale service: 1 year warranty, technical support, lifelong maintenance.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
