Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > B1 Series Drilling Machine/Z4120B1

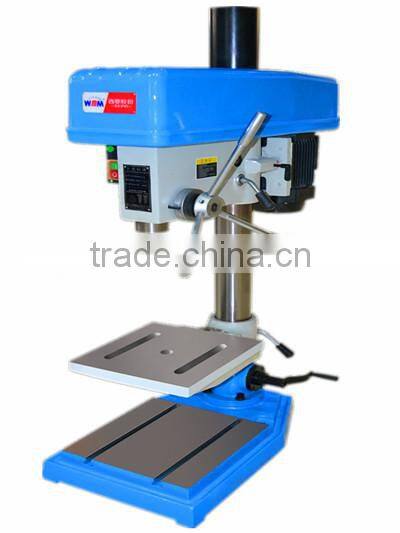

B1 Series Drilling Machine/Z4120B1

Name: B1 Series Drilling Machine/Z4120B1
Brand: XiaShi
SKU: 140991090
Availability: InStock

Guangxi Xiashi Machinery Equipment Co., Ltd.

B1 Series Drilling Machine/Z4120B1 thumbnail-1

B1 Series Drilling Machine/Z4120B1 thumbnail-2

B1 Series Drilling Machine/Z4120B1 thumbnail-3

B1 Series Drilling Machine/Z4120B1 photo-1

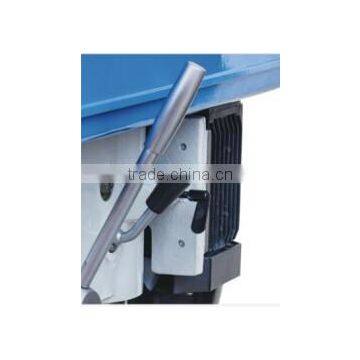

B1 Series Drilling Machine/Z4120B1 photo-2

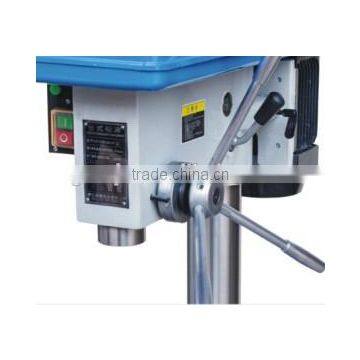

B1 Series Drilling Machine/Z4120B1 photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Drilling Speed:

365~3150r/min

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Drilling Speed 365~3150r/min

Place of Origin Guangxi, China

Brand Name XiaShi

Model Number Z4120B1

Dimension(L*W*H) 200x300x1090mm

Weight 140KG

Certification CE,ISO

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Characters:

♦The spindle seeve wth anti rotation mechanism.strengthen the guide,preventing the head

rotation,to avoid the blind performance of the gear shaft and sleeve.at same time the multi-spindle head improve the precision location.

♦Spindle head can rise/down by handle,portable and flexible

♦Belt adjust mechanism adopt the gear driving and rack driving,easier than manual adjust.the

clamp adopt screw locking the slant of motor pin,the clamp reliable amd easy to operate.

♦The bottom of belt cover can be instead of full locked structure to increase the degree of

protection.

♦The handle shaft adopt steel,everlasting.lengthen the arm,easy to operate and more efficient

♦Spindle body with the LED light,easy to operate,lighten the working environment.

Technical parameter

Model	Unit	Z4120B1/Z4125B1
Max.drilling capacity	mm	Φ20 / Φ25
Distance spindle axis to column generating line	mm	240
Max.distance spindle nose to table	mm	299
Max.distance spindle nose to base	mm	334/560
Spindle taper		M2/MT3
Spindle speeds range	r/min	365~3150
Spindle speeds series	speeds	5
Dimension of base	mm	590x375
Dimension of worktable surface	mm	200x300
Overall height	mm	1090
Net weight	kg	≈140
Packing dimension	mm	850x510x1090

Standard accesories

Drill chuck

Arbor(only taper hole spindle)

Drift(only taper hole spindle)

Wrench

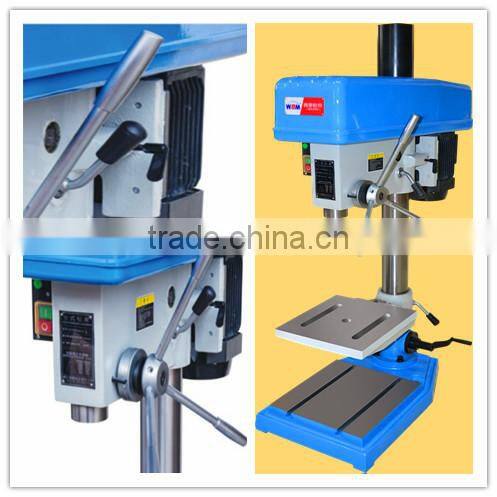

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
